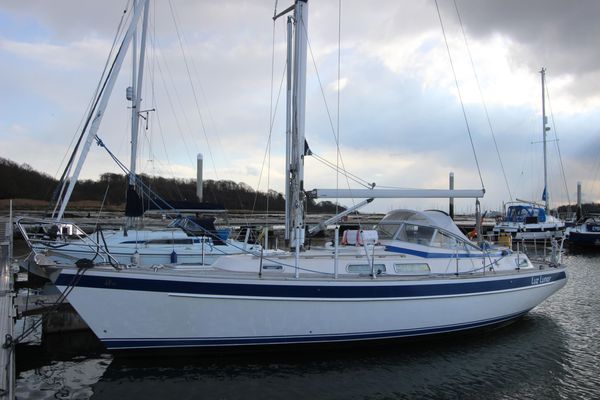

Hallberg-Rassy 36 - main image

1996 Hallberg-Rassy 36

location icon Hamble, Hampshire
Year 1996
Length 36 ft / 10.97 m
Builder/Manufacturer Hallberg-Rassy

LUZ LUNAR benefits from plenty of great factory fitted extras including a bow-thruster.
Recent canvas and new sails make LUZ LUNAR an attractive prospect. Lying in commission on the Hamble River, LUZ LUNAR is offered ready to go for her new owners.

Early viewing essential.


Year Built 1996
Category Sail
Length Overall 36 ft / 10.97 m
Beam 11'7 ft / 3.53 m
Max Draft 5'9 ft / 1.74 m
Cabins 3
Cabin Headroom 6'3 ft / 1.91 m
Double Berths 2
Construction Fiberglass
Keel Fin Keel
Min Draft 5'7 ft / 1.7 m
Drive Type Direct
Engines 1
Total Engine Power 57 hp
Fuel Tanks 1
Fuel Tank Cap. 335 L
Fuel Tank Mat. Stainless Steel
Water Tanks 1
Water Tank Cap. 355 L
Water Tank Mat. Stainless Steel
Holding Tanks 1
Holding Tank Cap. 75 L
Holding Tank Mat. Stainless Steel
Ballast 3,400 kg
Displacement 7,500 kg
Tax Status Paid

Engine 1 Specifications

Make: Volvo Penta
Rope Cutter: true
Model: MD22
Drive Type: Direct
Fuel: Diesel
Engine Power: 57hp
Type: Inboard
Propeller Type: 3 Blade, Bronze, Folding
Year: 1996

Mahogany wood work finished in a silk hand-rubbed varnish. Portlights and removable carpet throughout. Cream curtains to all windows (New 2017). All lockers doors louvered and all bunk tops drilled ensuring a constant flow of air through the boat and minimising the effects of condensation.

Double V-shaped berth with infill cushion. Lockers above berths and stowage beneath. Vanity unit and locker to starboard. Opening skylight and reading lamps.

to port with marine WC and stainless steel holding tank. Shower stall with teak grating. Porcelain wash hand basin with shower attachment and mirror over. Lockers underneath basin and behind heads. Portlight and opening skylight. Hanging locker outside and opposite heads compartment.

L-shaped sofaberth to port and straight berth to starboard. Lifting backrests provide a wider berth when in use and excellent stowage for bedding etc when not. Lee cloths to both berths. Lockers and shelving above berths. Centreline dropleaf table with opening centre section. Stereo radio. Opening skylight and portlights. Ship's clock and barometer.

to starboard with double stainless steel sink. Sea water tap plus filtered water tap in addition to hot and cold pressurised. 12v Frigoboat refrigeration unit in insulated ice box. Eno 2 burner hob with oven. Stowage above and below work surfaces and drawers for cutlery etc.

to port with lift up chart table top and drawers under. Instrument console and switch panel for circuit breakers etc. Navigators seat with stowage beneath. Hanging locker and small storage locker behind seat and access to engine compartment in walkway through to:

Single berth to port and wider berth to starboard. Stowage beneath for batteries, steering cables and emergency tiller. Lockers and shelving above berths and a hanging locker. Reading lamps, portlights and opening skylight.

Mechanical Systems

Volvo MD22 57hp shaft driven diesel engine. (Last serviced winter 2018/2019)
New heat exchanger 2017
New alternator 2018
New Cutlass bearing  2019

Various engine spares
3-bladed Maxprop with fixed 3-bladed propeller as spare
Rope cutter
Vetus bow thruster with footswitches at steering position
Non-cavitating VETUS 6 blade prop (New 2018)
Engine battery 60Ah
2 x 140Ah domestic batteries, located under aft cabin berth
Galvanic isolator
Hull anode
Whale gusher manual bilge pump (New 2018)
Electric bilge pump
Fresh water pump renewed 2018
Mastervolt battery charger
230v shore power system with ring main, immersion heater and cable

Spars and Sails

Mast and spars by Selden
Standing rigging replaced in 2010
Double spreader sloop rig with fore and aft lower shrouds
Aluminium bottle screw protectors
Selden in-mast furling with control lines led back to cockpit
Lewmar 16CST self-tailing winch and 3 clutches for furling lines
Furlex jib furling and reefing system
Spinnaker track and blocks for stowing pole on mast
Selden rod kicker

Furling Mainsail (New 2017)
Tri-radial Genoa with foam luff and cover (New 2017)
High aspect working jib
Cruising chute by Arun Sails (2003)
Spare main and genoa.

Deck Equipment

Teak decks, cockpit seats and trim
Stainless steel pulpit, pushpit and guardwires with entry gates P and S
Integral bathing platform with bathing ladder
Teak pushpit seats and cockpit table
Stainless steel stemhead fitting with twin bow rollers
45lb CQR anchor with 50m/8mm chain and 50m warp
Electric anchor winch
Kedge anchor with 10m chain and 20m warp
Lazarette on aft deck for warps and fenders
Genoa tracks and blocks and mainsheet track by Lewmar
Lewmar 48 CST self tailing sheet winches
Large cockpit locker with stowage slots for washboards and cockpit table
Tempered glass windscreen with opening centre section
Hallberg-Rassy sprayhood (New 2017)
Hallberg-Rassy sprayhood extension, covers for each when folded
International navigation lights
Steaming light and deck flood light
Combined tricolour and anchor light at masthead
Handheld spotlight
Various warps & fenders

Navigation Equipment

Garmin 4008 chart plotter (2011)
Raymarine RL70RC radar/chart plotter dispay at chart table
Raymarine 2kW radome mounted on mast
Raymarine RL70 radar display in cockpit
Autohelm ST50 speed, depth, wind and compass instruments over sliding hatch
Raymarine ST60 graphic display over sliding hatch
Autohelm ST7000 autopilot with control unit mounted at pedestal
Raymarine RN300 GPS
Icom IC-M503 DSC VHF radio
VHF antenna mounted at masthead
ICS Nav6 Navtex

Safety Equipment

Ocean Safety ISO liferaft in cannister mounted on deck (New 2017)
IOR flare pack
Flat jackstays on deck
Kim MOB rescue sling
Danbuoy and lifebuoy
Echomax radar reflector mounted on mast
Emergency VHF antenna
Dualwatch gas alarm
First Aid Kit
Bolt croppers
Fire blanket and 4 fire extinguishers
Automatic fire extinguisher in engine room
Emergency tiller
Manual Whale gusher bilge pump (New 2018)
