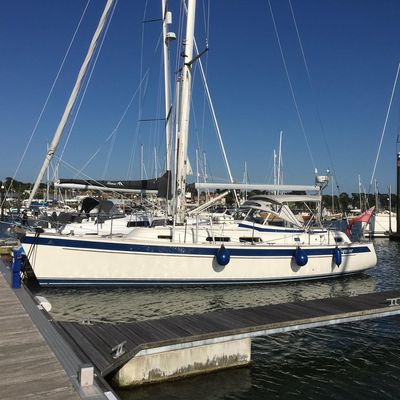

Hallberg-Rassy 37 - main image

2005 Hallberg-Rassy 37

location icon Poole, Dorset
Year 2005
Length 37'2 ft / 11.32 m
Builder/Manufacturer Hallberg-Rassy
Price
£165,000

This Hallberg-Rassy 37, COQUINE is available for purchase!  She boasts a YANMAR diesel engine with prop shaft, electric primary winches, in-mast furling and bow thruster.
Offered for sale by her original owner and used for coastal sailing on both sides of the English Channel.
Coquine presents very very cleanly throughout.

Call the Transworld Yachts office on +44 (0) 2380 454000 to arrange a viewing.

Specifications

Year Built 2005
Category Sail
Length Overall 37'2 ft / 11.32 m
Beam 11'8 ft / 3.55 m
Max Draft 6'3 ft / 1.9 m
Cabins 3
Electrical System 12 V
Double Berths 1
Construction Fiberglass
Keel Fin Keel
Drive Type Direct
Engines 1
Total Engine Power 54 hp
Fuel Tanks 1
Fuel Tank Cap. 340 L
Fuel Tank Mat. Stainless Steel
Water Tanks 1
Water Tank Cap. 400 L
Water Tank Mat. Stainless Steel
Holding Tanks 1
Holding Tank Cap. 40 L
Holding Tank Mat. Stainless Steel
Ballast 3,200 kg
Displacement 7,500 kg
Displacement Type Dry Load
Windlass Electric
Tax Status Paid

Engine 1 Specifications

Make: Yanmar
Rope Cutter: true
Model: 4JH4E
Drive Type: Direct
Fuel: Diesel
Engine Power: 54hp
Type: Inboard
Propeller Type: 3 Blade, Bronze, Folding
Year: 2005
Engine Hours: 1495
Accommodation

All interior woodwork in light mahogany matt silk finish. Locker doors with rounded edges and ventilation above. Floor is varnished wood with inlaid holly strips. Saloon ceiling has panelling with mahogany strips and ceilings in remainder of boat have light lining.
Cushions on all berths (except aft cabin double, which is sprung mattress) sandwich foam, 10 cm harder and 2 cm softer on top, totally 12 cm / 5’’ thick and resting on un-varnished, well ventilated boards to avoid condensation. Handholds are in all the right positions. The boat has blue carpets throughout, except directly in front of the galley, press studs avoid movement. All upholstery in hard wearing deluxe blue fabric. All portholes are opening and fitted with beige curtains. Beige curtains to all deck hatches also.

Saloon

The settee offers comfortable seating. On starboard side an L shaped 2.00 m / 6’ 7’’ long sofa with rounded corner, on port 1.80 m / 6,’ with backrests with upper hinges such that the whole width of the berth can be used for sleeping accommodation. Between the settees a strong table with foldable sides. Top opening bar in the table.
Shoe box behind companionway steps. 18" LCD flat screen TV with mast mounted Glomex AE.
Headroom in saloon 1.92 m / 6’ 4’.’

Galley

Big working surface in PlexiCor composite stone with strong, all round mahogany fiddle rail. Carefully insulated icebox with Isotherm electric compressor for chilling and a basket for small items. Extra deep, double sink with hot/cold mixer, emergency floor pump and carbon filtered tap. Two burner ENO gas cooker with oven, well gimballed with fiddle rails and locking device for oven door and also for the cooker when in use in the marina. Safety switch on gas pipe. Crockery locker and cutlery drawer. Bread board. Room for saucepans and other kitchen utensils. There are special places for the waste bin and other items. Carbon filter drinking water tap.

Heads Compartment

Bulkheads and lockers in white laminate. Teak grating. PlexiCor countertop. There is a large mirror. Shower with single lever control and curtains. Carbon filter water tap. Shower water drained by pump directly overboard. Hand switch for shower pump for utmost safety. Strong, reliable pump action toilet. Stainless holding tank, emptied by gravity or by deck pump out. Cup board below the wash basin. Single lever mixer shower tap. Ventilation through opening porthole deck hatch and electrolux vent.

Forward  Cabin

The forward cabin has been arranged to allow generous free movement for dressing and undressing. Two 2.12 m / 7’ 1’’ long berths with ample stowage above and below and in addition a number of lockers. Hanging locker and vanity. Infill between the berths. Opening skylight with beige curtain under.

Chart Table

A comfortable chart table seat with spacious chart table. Electric panel to the right of the navigator, instrument shelf in front and bookshelf behind navigators seat. There are drawers and stowage slots as well as a pencil holder.

Walkthrough

There is a larger rubber sealed 2-door access to the engine room off the walkthrough. The access is on the starboard side, the service side of the engine. On starboard of the walkthrough there is a hanging locker.

Aft Cabin

Aft cabin has a hanging locker on starboard and two comfortable berths with sprung mattresses to double berth. Stowage room below and above. There is a mirror fitted. Seat between the berths. Opening skylight.

Mechanical and Electrical Systems

Mechanical

Yanmar 4JH4E 4 cylinder 57hp diesel engine with shaft drive.
FiltaClene bypass oil filter
Racor spin on primary oil filter
Additional 140Ah alternator for domestic battery bank
MaxProp 3 blade feathering propeller
Standard fixed 3 blade propeller as spare
Ambassador rope cutter
Lewmar 6hp bow thruster with foot switch control
Hull anode connected to shaft via brush
40l hot water calorifier
Webasto Airtop Evo 3900 Diesel, 3.5 kW, with outlets in saloon, forward cabin, heads compartment and aft cabin.
Exhaust elbow renewed 2016
Heat exchanger cleaned Nov 2018
Last engine service Dec 2019


Electrical

12v switch panel next to chart table
Emergency switch to parallel engine start battery to domestic battery
490 Ah domestic battery bank New 2016
Mastervolt 12V/60A-230V battery charger
Mastervolt Mass Sine 12/2000-230V Inverter
230V Marinco shore connection, circuit breaker, shore cable & 4 outlets
Galvanic isolator on shore power

Deck Equipment

Hull copper coated 2016
Deck, toerail, cockpit seats, cockpit floor, side trims and bathing platform have top quality teak laid in silicon rubber
Teak hand rails full length of superstructure
Strong stem fitting with integrated anchor roller
Additional bow roller
Removable stainless steel bowsprit
Original Delta anchor 44 Ibs/20 kg  with 40m/8mm chain
Lewmar anchor windlass with deck buttons and helms station remote
10Kg stern anchor with chain, warp and bracket for pushpit mounting
S/S antennae pole on stbd quarter for radar, navtex, Raymarine GPS, AIS & demountable outboard crane
Two strong cleats for ward, aft and midships with stainless steel rubbing strakes
Double stainless lifelines with opening gates port and starboard
Two scuppers on each side which drain rain water overboard
Deck inlets for water and diesel tanks are on opposite sides to avoid errors
Gas locker with two 3kg Camping Gaz bottles and bubble leak detector
Genoa and mainsheet tracks with blocks
Genoa block adjustable from the cockpit
Gas locker on port with stowage for two 6 kg P6 gas cylinders
Integrated bathing platform in transom with hot/cold shower
Reinforced glass windscreen with aluminium frame, opening centre window
Modified canvas sprayhood with clear side panels
Modified cockpit extension that can be used as bimini
Original sprayhood and cockpit extension for use as winter covers
Teak outboard bracket on pushpit
Pushpit seats in teak
Canvas wheel cover for steering pedestal
High-gloss varnished cockpit table
Deck wash pump
Tricolour with anchor light at mast head



Navigation Equipment

Raymarine 2kW radar scanner
Raymarine 240E VHF with control units & speakers at Nav table & cockpit
Raymarine AIS 650 transponder
Raymarine ST60 Depth, log, wind
Raymarine ST60 Graphic at nav table
Raymarine E80 Plotters x 2 networked (nav table & cockpit)
Raymarine ST7001+G autopilot
Raymarine smart controller
Furuno GP32 GPS
McMurdo Nav6 Navtex plus printer
Pioneer stereo with internal speakers
Sea & Symphony speakers in cockpit
Wempe clock, barometer & comfort instrument in saloon
Furuno GPS AE mounted on pushpit

Sails and Spars

Double spreader deck stepped rig by Seldén.
Insulated backstay with cable to chart table
Selden furling mainsail system
Main boom with outhaul.
Jib furling and reefing system
Seldén Furlex.
Lewmar jammer for Furlex line
Seldén gas rod kicker.
Selden backstay tensioner
Spinnaker pole against mast
Lewmar 48 CEST primary winches.
Lewmar 30 CST winch for use with outhaul and main furling line
Turnbuckles from Hasselfors, aluminium protection tubes from Seldén.
Spare halyard
Deck light.
Windex wind indicator on mast top.
Three colour toplight with anchor light


Sails
Elvstrom Tri-optimal with vertical battens.
Elvstorm working jib with foam luff and UV strip
Momentum cruising chute on Kemp RolleX TD furler
Main and jib serviced Dec 2019



Safety Equipment

Transworld Yachts Sailing Ltd recommend that all safety equipment is inspected by suitably qualified personnel before use. Transworld Yachts Sailing Ltd provide no guarantees or warrantees for safety equipment supplied with their listings.

Webbing lifelines on deck
Fitting for lifebelt in cockpit x2
Liferaft BFA Pacific, 4 person container on s/s pushpit bracket (Service through Jan 2023)
Auto inflate Dan/Horseshoe buoy on pushpit (New 2019)
GME MT403G 406Mhz EPIRB
Firdell radar reflector mounted on mast
Fire extinguishers x3
Seago 230 round tall inflatable dinghy
Suzuki 2.5hp four stroke outboard motor (Serviced 2019)

Disclaimer

Transworld Yachts offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
