Najad 373 - UNITY

General Description

The Najad 373, being a modern cruising yacht, meets the high standards for long coastal and ocean sailing.  Below decks UNITY has a sensible and practical layout ensuring comfort on board.

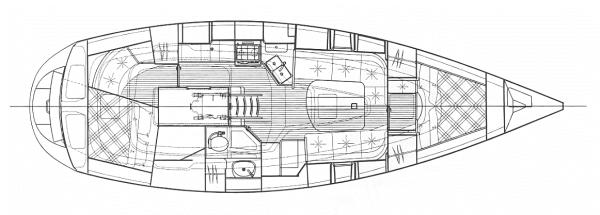

Accommodation:

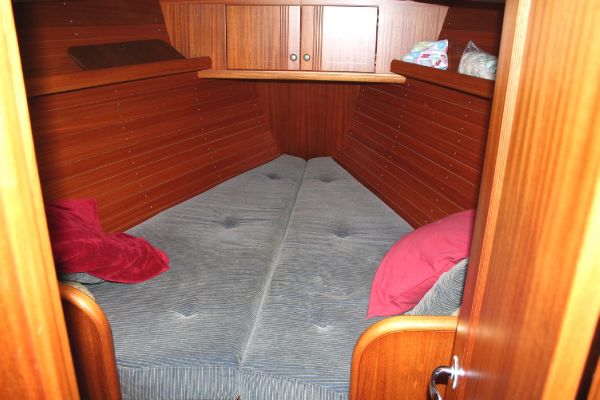

FORWARD CABIN:
Forward cabin with double berth, sail stowage below, hanging locker and additional storage. Deck hatch with blind and mosquito screen, two opening ports. Reading lights.

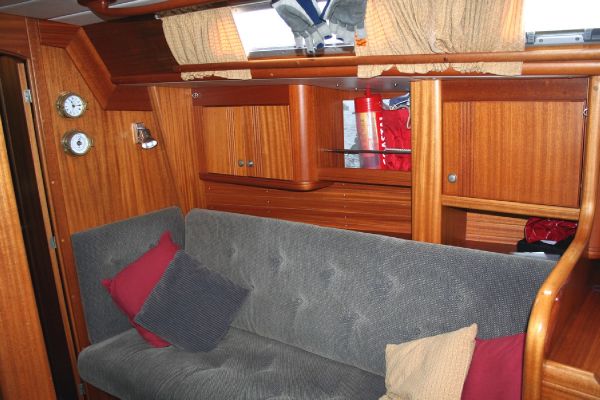

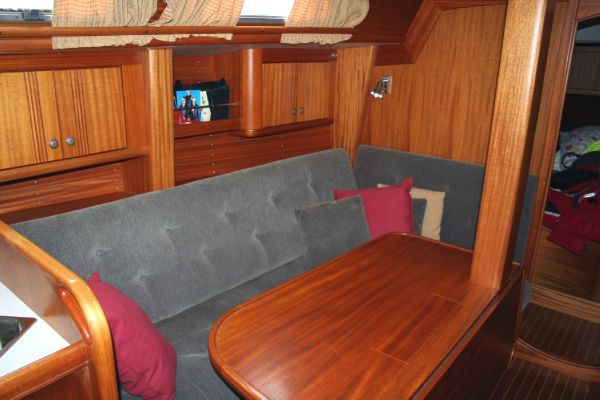

MAIN SALOON:
Main saloon with port and starboard settee berths, both with lee cloths. Centre drop leaf table, with bottle stowage. Deck hatch with skyscreen, lockers and stowage under and behind settees. Kenwood stereo radio/CD player with speakers in saloon and cockpit. Ship's clock and barometer. Two fixed and four opening ports. Two Dorade ventilators. Headroom 1.9m.

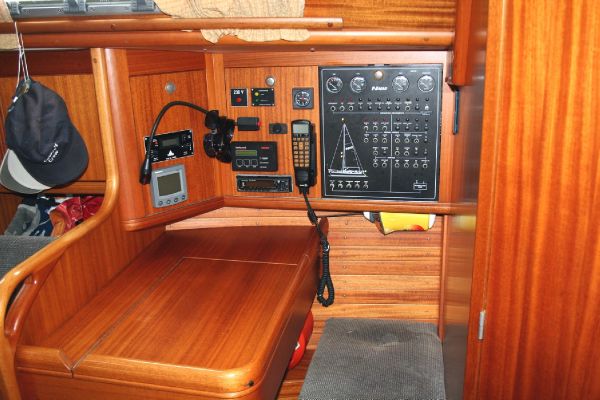

CHART TABLE:
Forward facing chart table with drawers and stowage for charts. Chart night light. Electrical switch panel. 12v outlet.

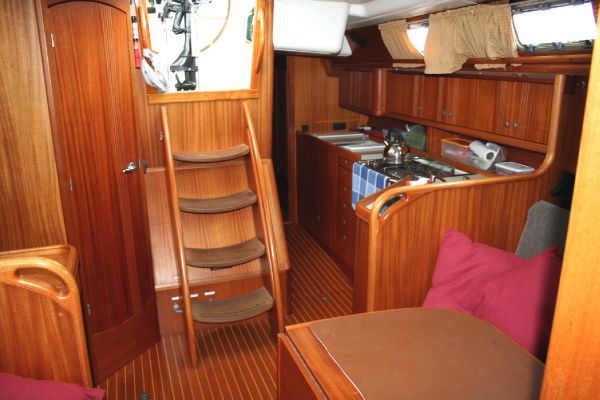

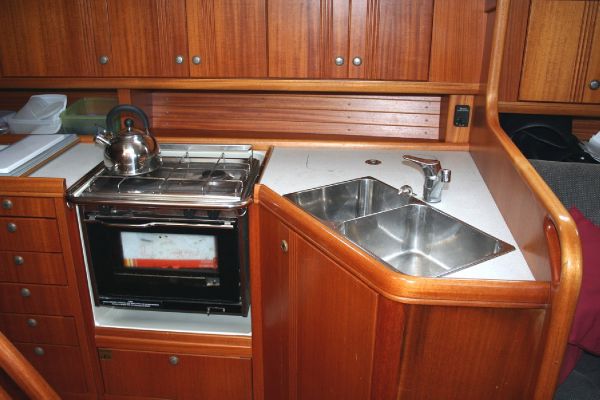

GALLEY:

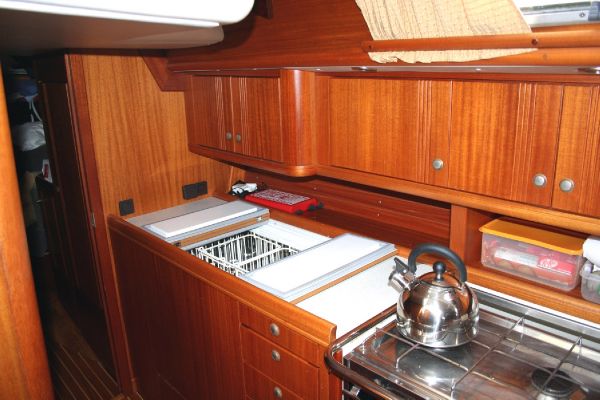

L-shaped galley on port side separated from main saloon by a bulkhead with integral grabrail. Corian worktops, double stainless steel sinks. Pressurised hot and cold water with single lever mixer tap. Hot water supplied from engine and 230v immersion heater. Optimus stainless steel gimballed two burner cooker with oven. 12v Isotherm refrigeration unit in top loading icebox (approx. 100 litre) with freezer tray, thermostat and baskets.

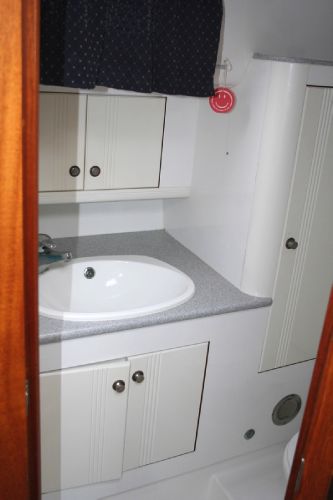

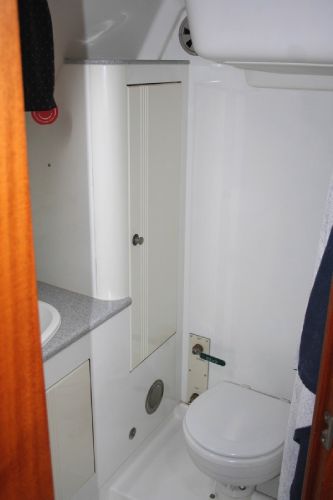

HEADS COMPARTMENT:
Heads compartment to starboard with white laminated bulkheads and Corian on the work surface and the sole. Jabsco pump action marine toilet, wash basin, shower and ventilated wet locker. 12v shower waste pump. Mirror. Holding tank. 12v outlet. Two opening ports.

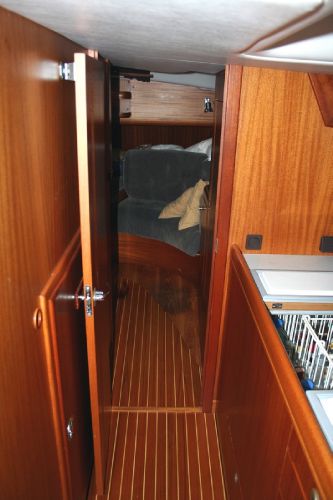

Walkthrough to aft cabin with access to engine room and opening port.

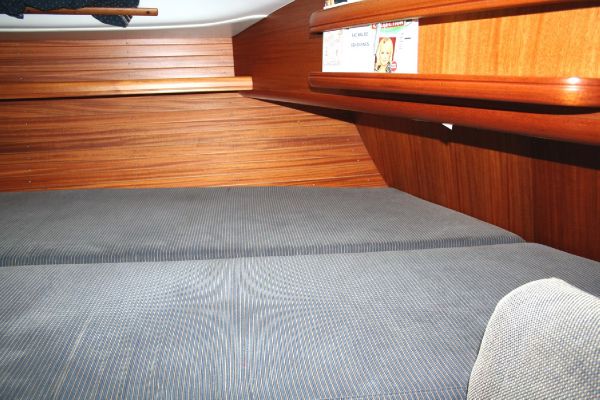

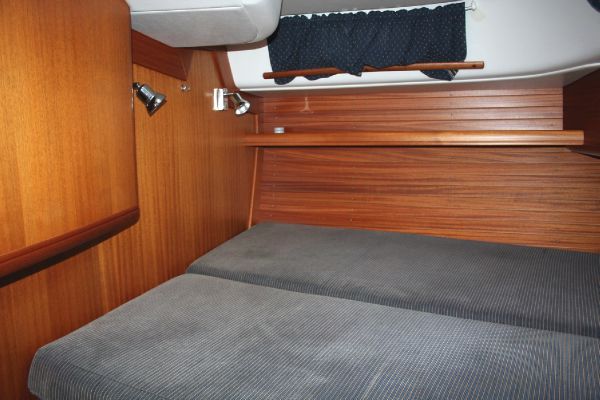

AFT CABIN:

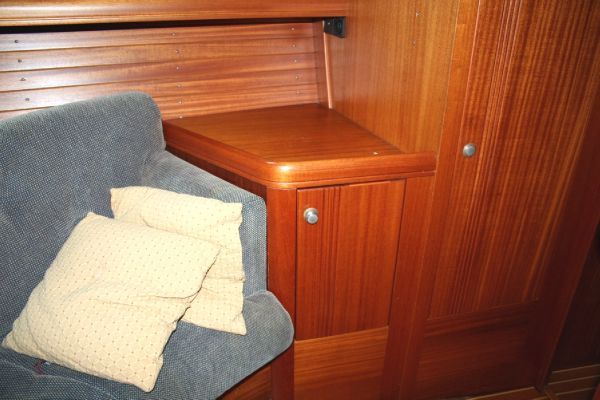

Aft cabin with double berth to starboard; settee, cupboards and hanging locker to port. Deck hatch with skyscreen, two opening ports. Reading lights.

Mechanical Systems:

Yanmar 4JH3-BE 53.4HP 4 cylinder fresh water cooled marine diesel engine. 1922 engine hours as at November 2011. 30mm propeller shaft with fixed 3-bladed propeller. 80A alternator. Bow thruster with switch on single lever engine control.

ELECTRICITY:

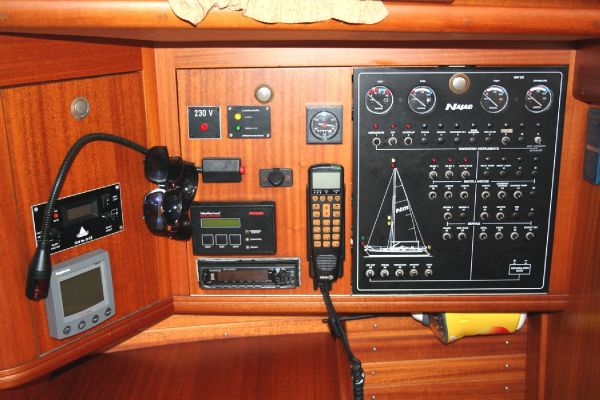

Electrical switch panel at chart table with fresh water gauges, fuel gauge and volt meter.
Three 12v batteries, one dedicated to engine start, two domestic.
Adverc DCM Mk3 battery monitor.
Shore power system with earth leakage device and distribution to ring main, immersion heater and battery charger.

HEATING:
Eberspacher D3L-C diesel fired cabin heater with warm air outlets in main saloon, forward and aft cabin.

Spars & Sails:

Fractional rig with twin spreaders and twin lower shrouds
Selden mast and boom, single line reefing
Selden Furlex 300S headsail reefing and furling system
Hasselfors backstay adjuster
Selden rodkicker and topping lift
Spinnaker pole
Removable inner forestay with adjuster
Twin genoa sheet cars controllable from the cockpit

SAILS:
Slab reefing mainsail
Furling genoa
Mainsail cover

Deck Equipment:

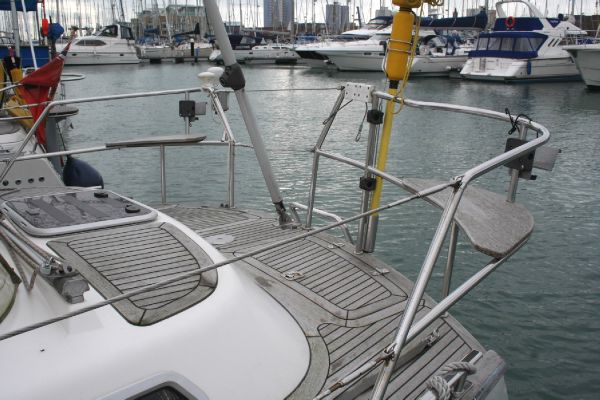

Teak laid decks, teak on the coachroof, aft deck and bathing platform
Teak pushpit seats
Two Andersen 52 ST self tailing 2 speed stainless steel primary winches
Two Andersen 46 ST self tailing 2 speed stainless steel spinnaker winches
One Andersen 28 ST self tailing 2 speed winch on mast
One Andersen 12 ST self tailing 2 speed winch on mast
Andersen reefing winch on mast

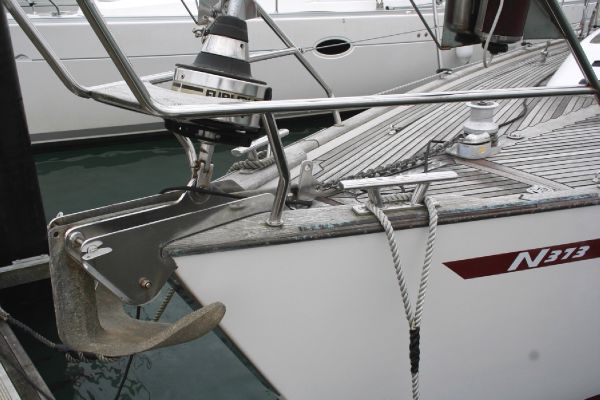

Twin bow rollers on stainless steel stemhead fitting
Four 12" mooring cleats, two 10" spring cleats amidships, with protective brass strips
Pulpit and pushpit in stainless steel
Folding boarding ladder on bathing platform
Aluminium protection tubes for rigging screws
Lofrans Airon electric windlass on foredeck
20kg Bruce anchor with 60 metres of 8mm chain
Cockpit locker
Two self draining lazarettes
One electric bilge pump, one manual bilge pump
Fixed windscreen with sprayhood, cockpit enclosure to cover entire cockpit
Leather covered steering wheel
High gloss varnished washboards and outer chart tables adjacent to companionway
International navigation lights with combined tricolour and anchor light at masthead

Navigation Equipment:

Suunto D135 steering compass on binnacle

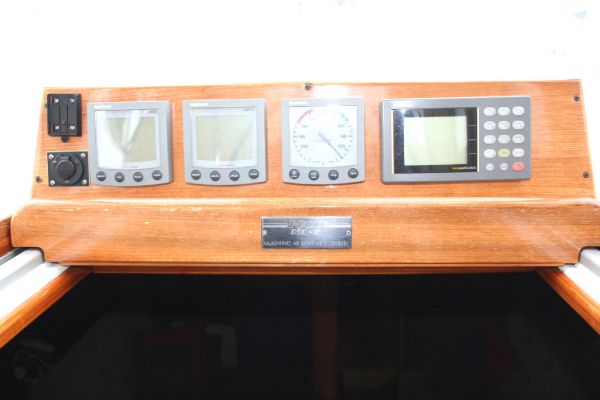

Raytheon ST60 speed, depth and wind instruments mounted over sliding hatch
Raytheon ST60 multi function display at chart table

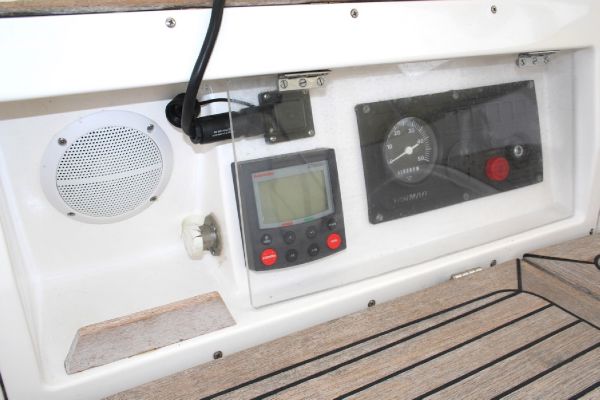

Raytheon ST6000+ autopilot
Raymarine C80 radar/chart plotter with scanner on mast
Raytheon Nav 398 GPS
Sailor C4901 DSC VHF
Silva S-12 handheld VHF
Prosser Weathertrend electronic barometer

Safety Equipment:

EPIRB
Firdell Blipper radar reflector
Two horseshoe lifebuoys with lights
Danbuoy
Three fire extinguishers
Fire blanket
Truma gas shut-off valve
Jackstays in webbing on deck

Tender & Outboard:

Inflatable dinghy
3.3HP Mercury outboard engine

Last modified: 3rd December 2011, 12:45 pm
