Accommodation
Fitted out in traditional Hallberg-Rassy style.
Silk varnished mahogany woodwork throughout, teak flooring with holly inlay. Curtains to all portlights and hatches. Patterned upholstery in excellent condition throughout.

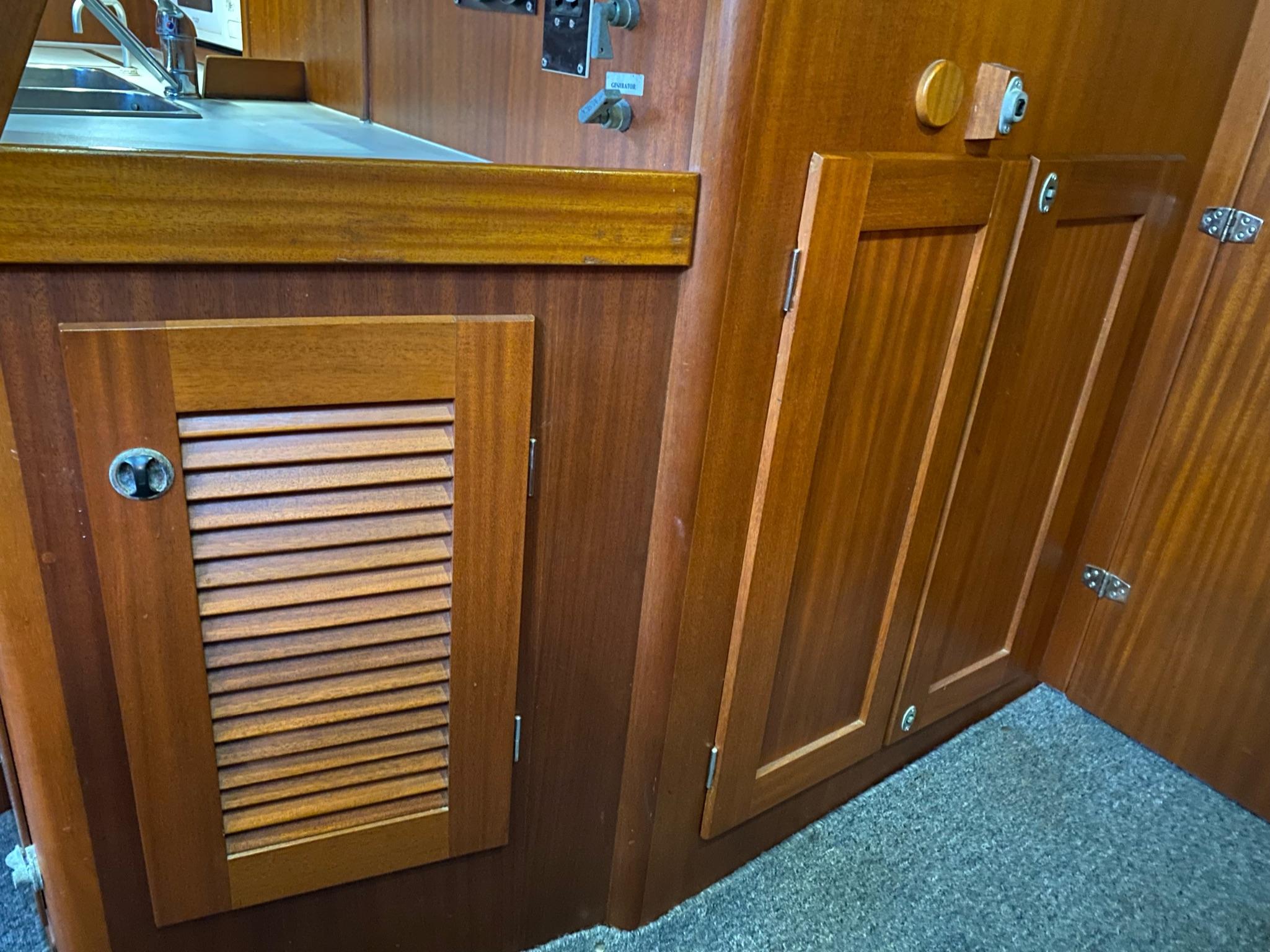

Mahogany slating laid just off the GRP, all bunk tops drilled, unvarnished and locker doors louvred. This provides a constant flow of air through the boat minimising condensation.

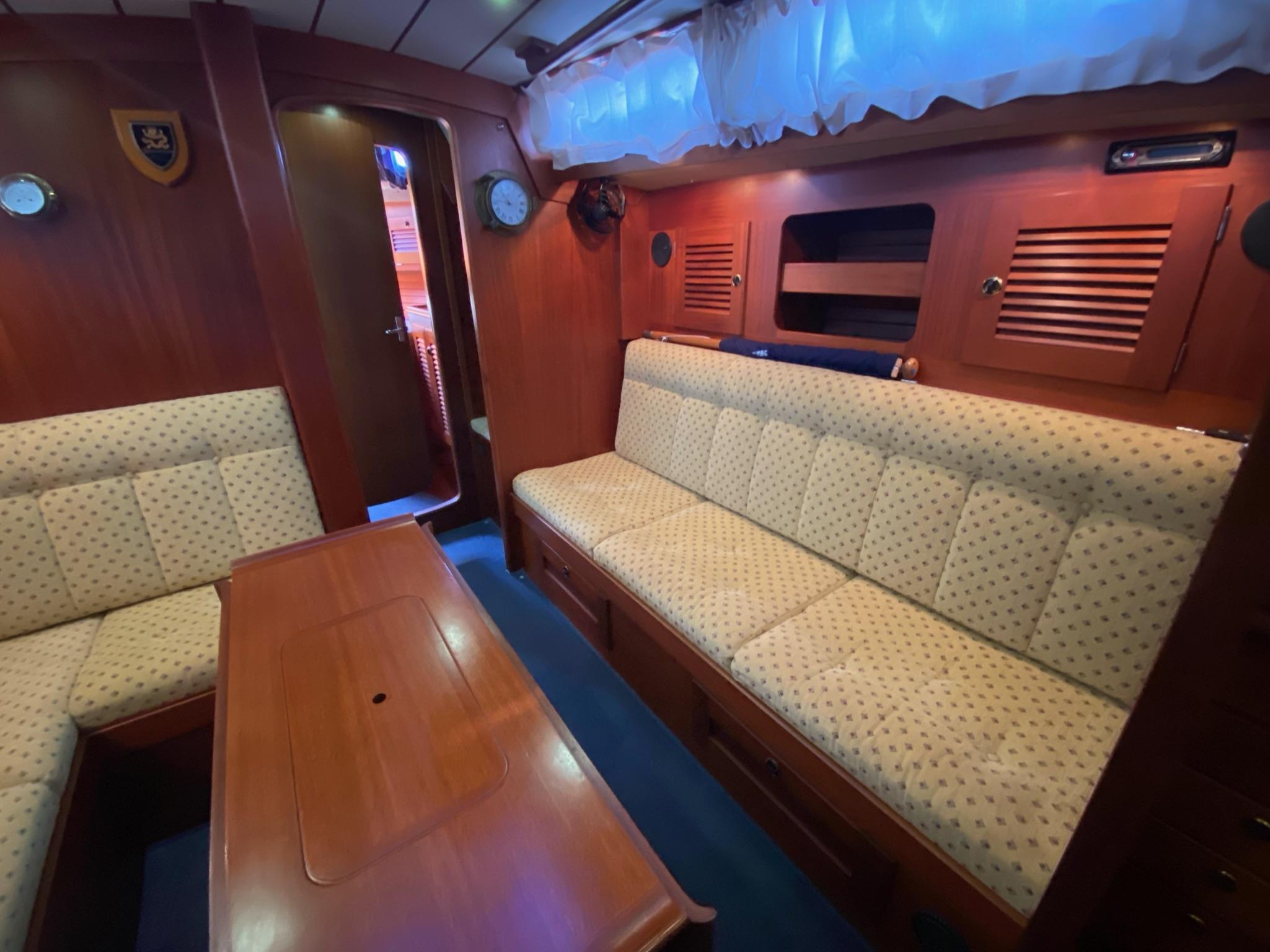

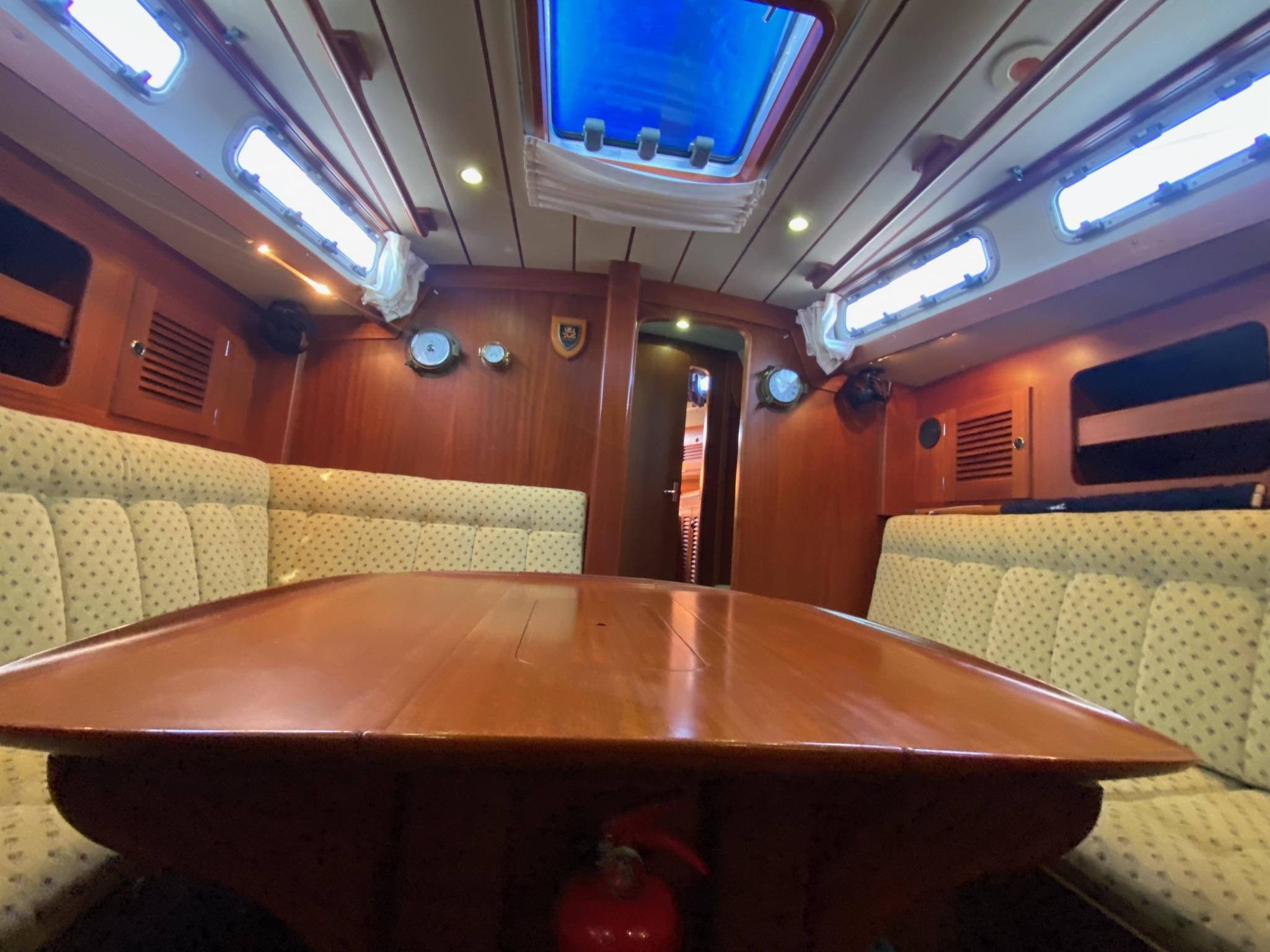

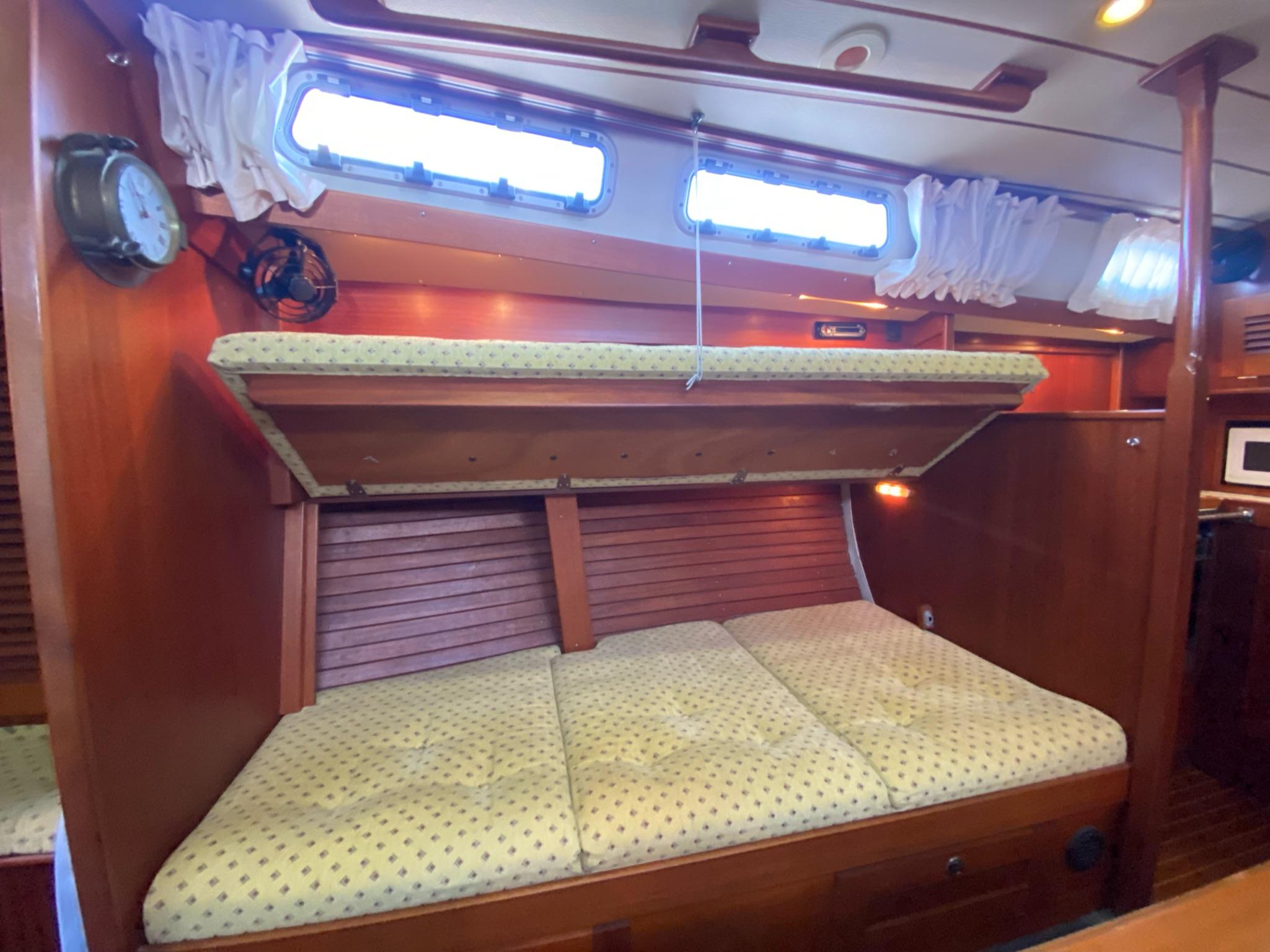

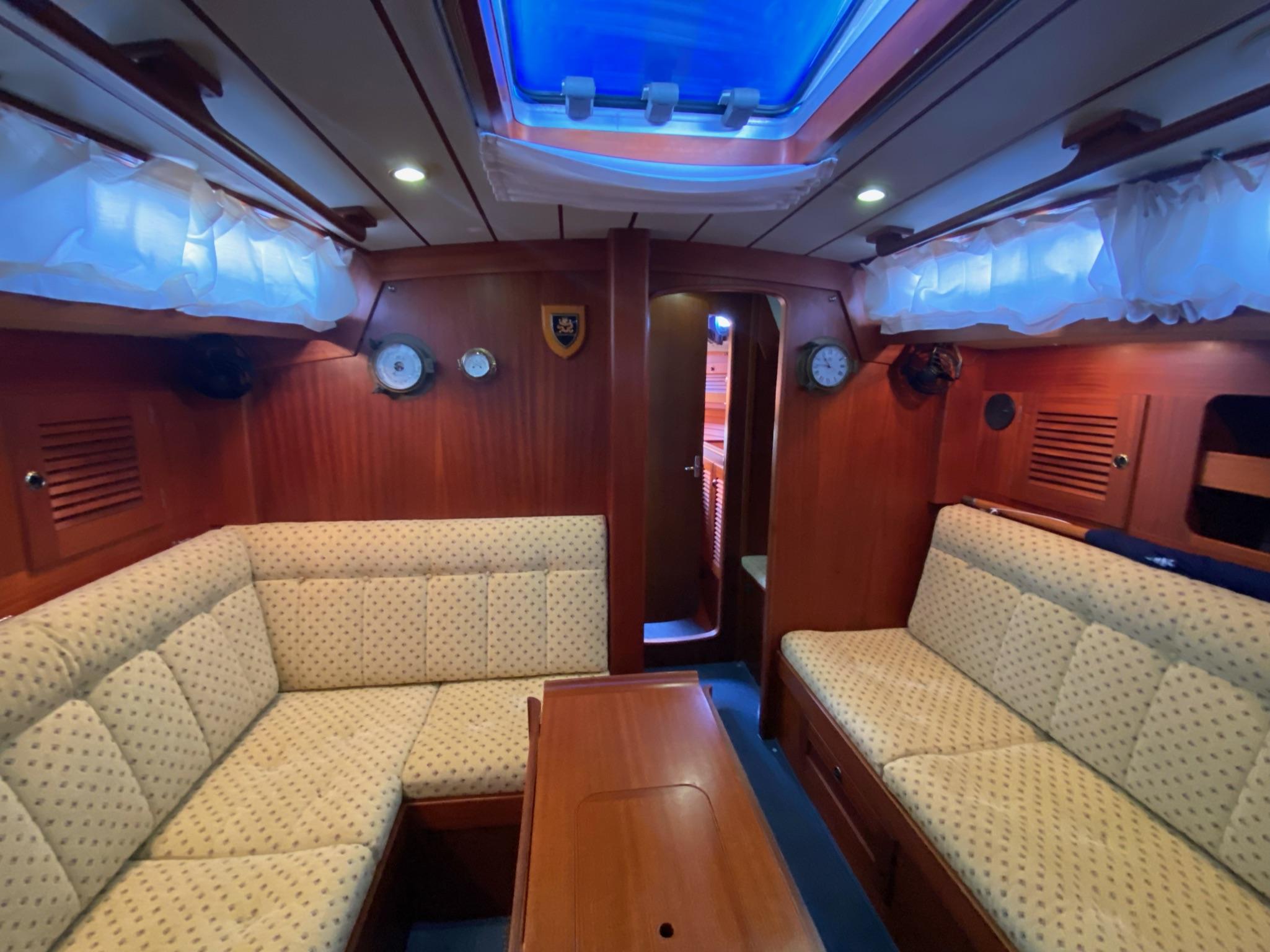

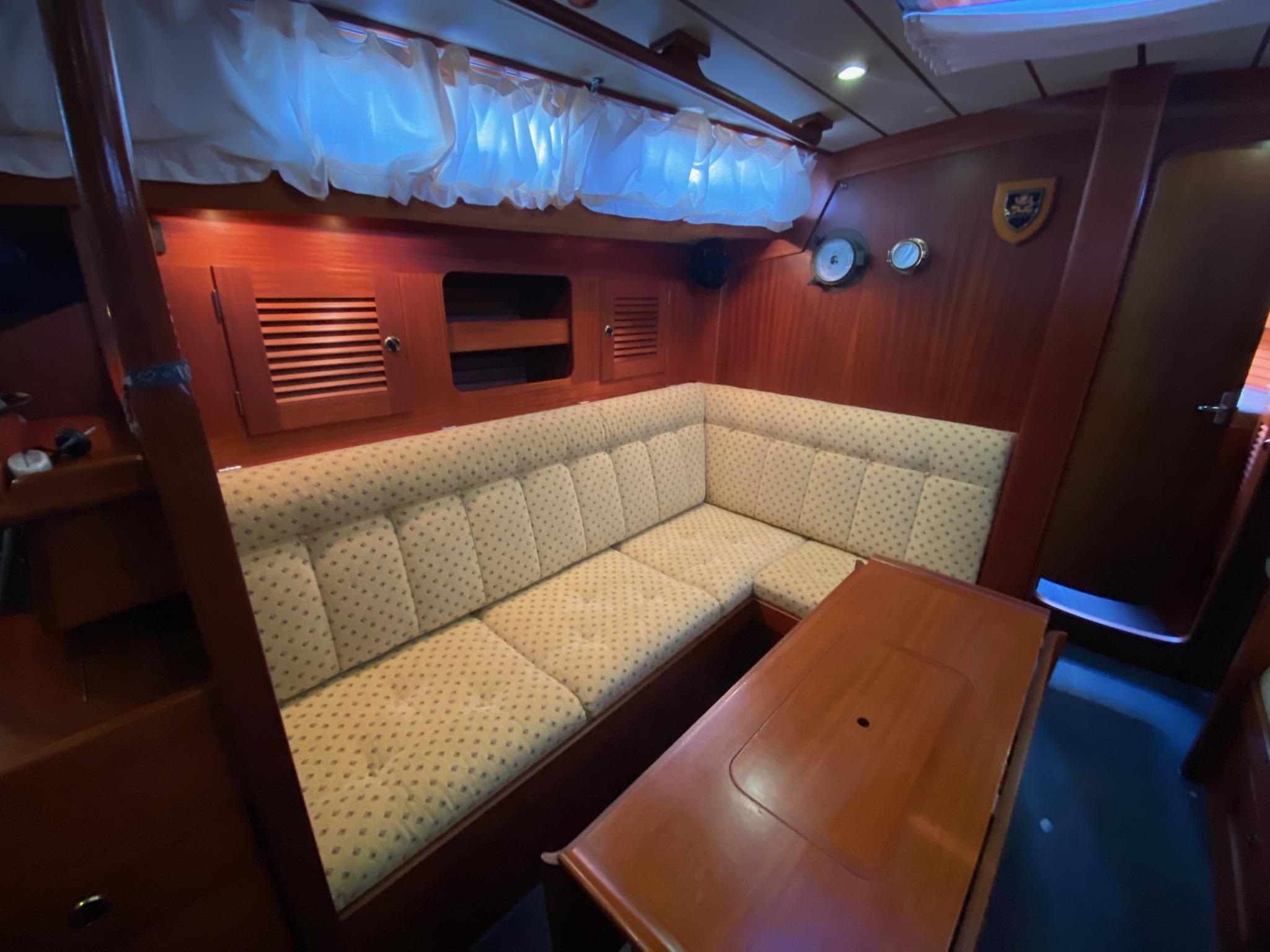

SALOON:

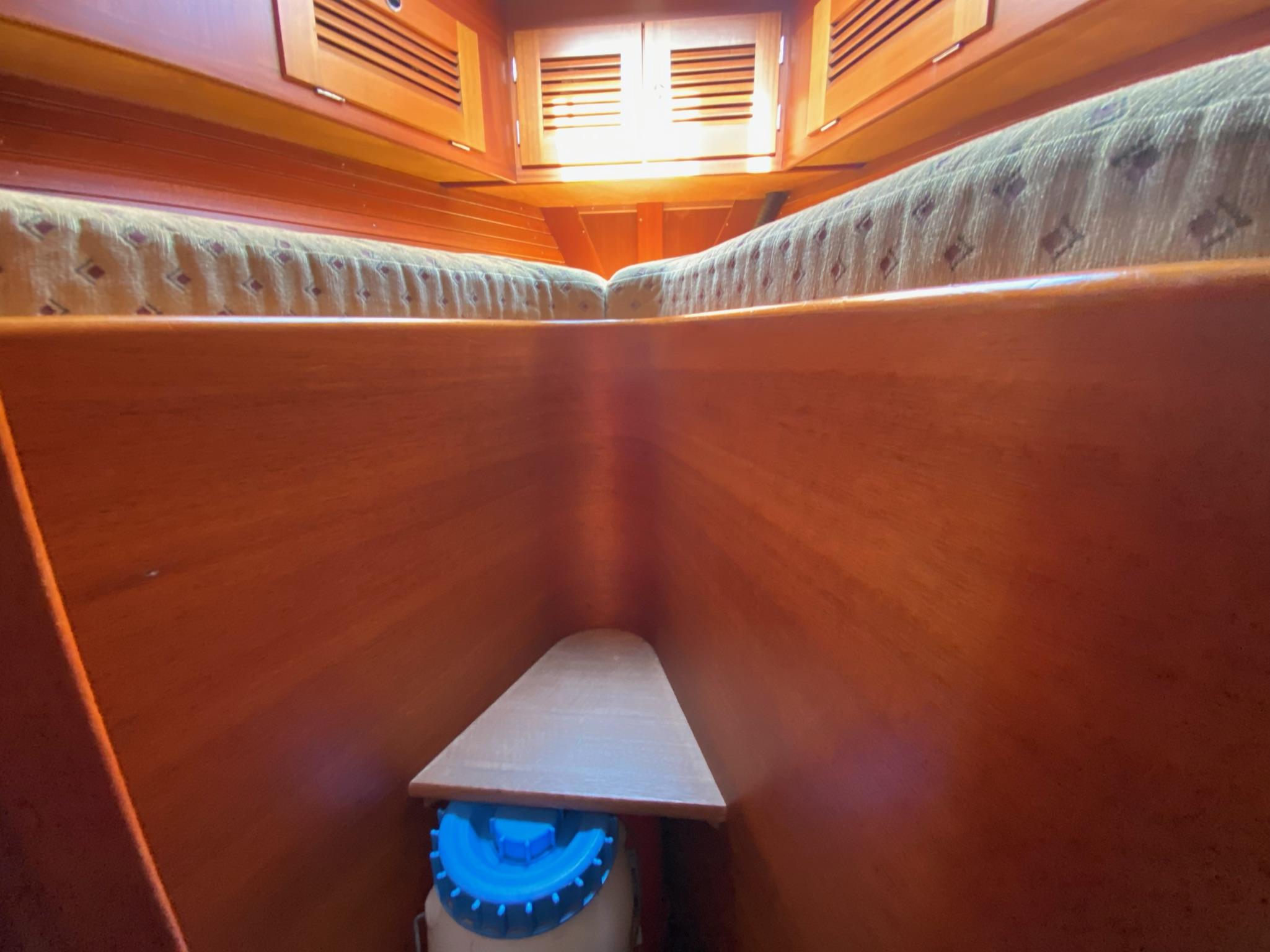

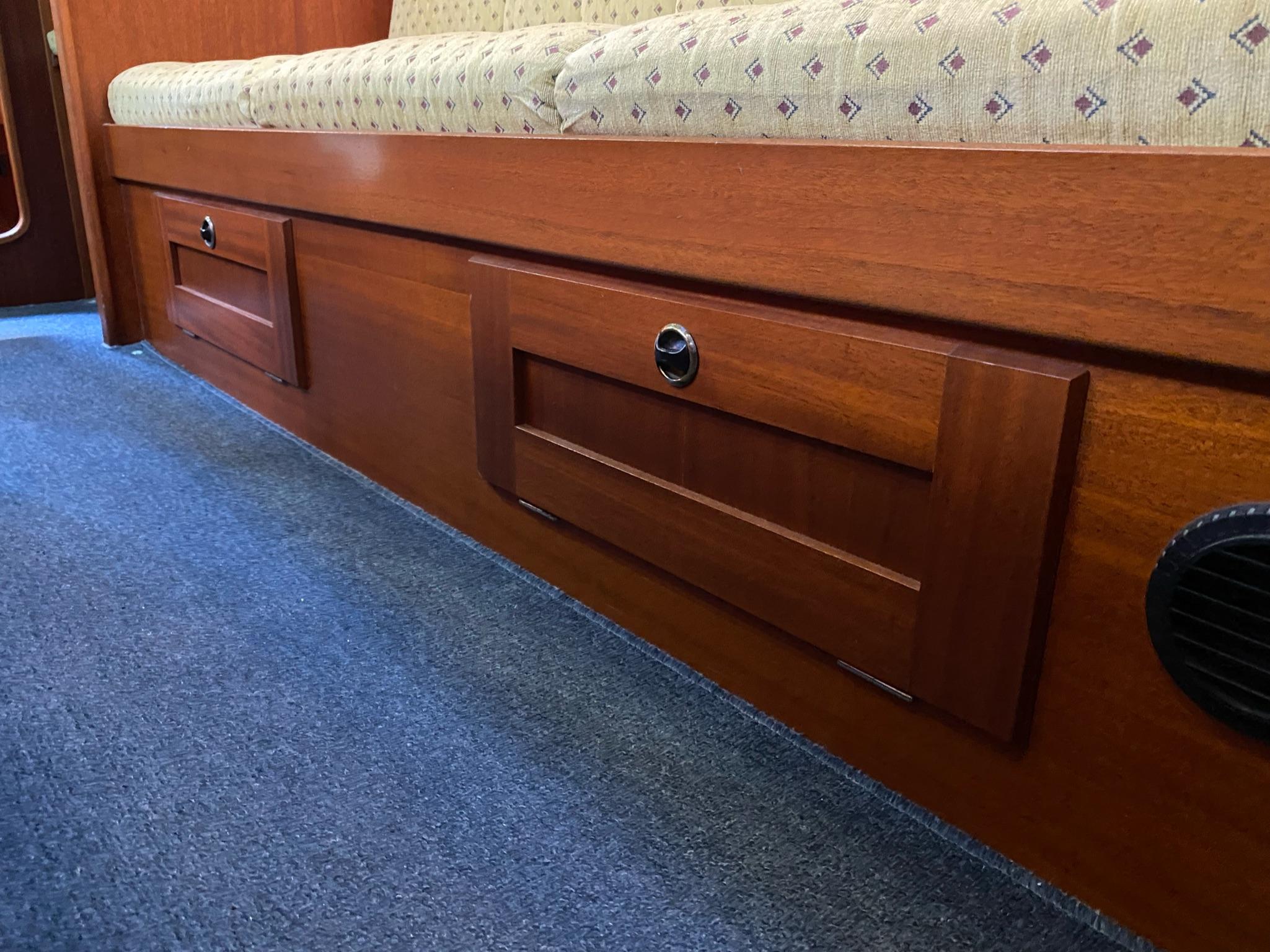

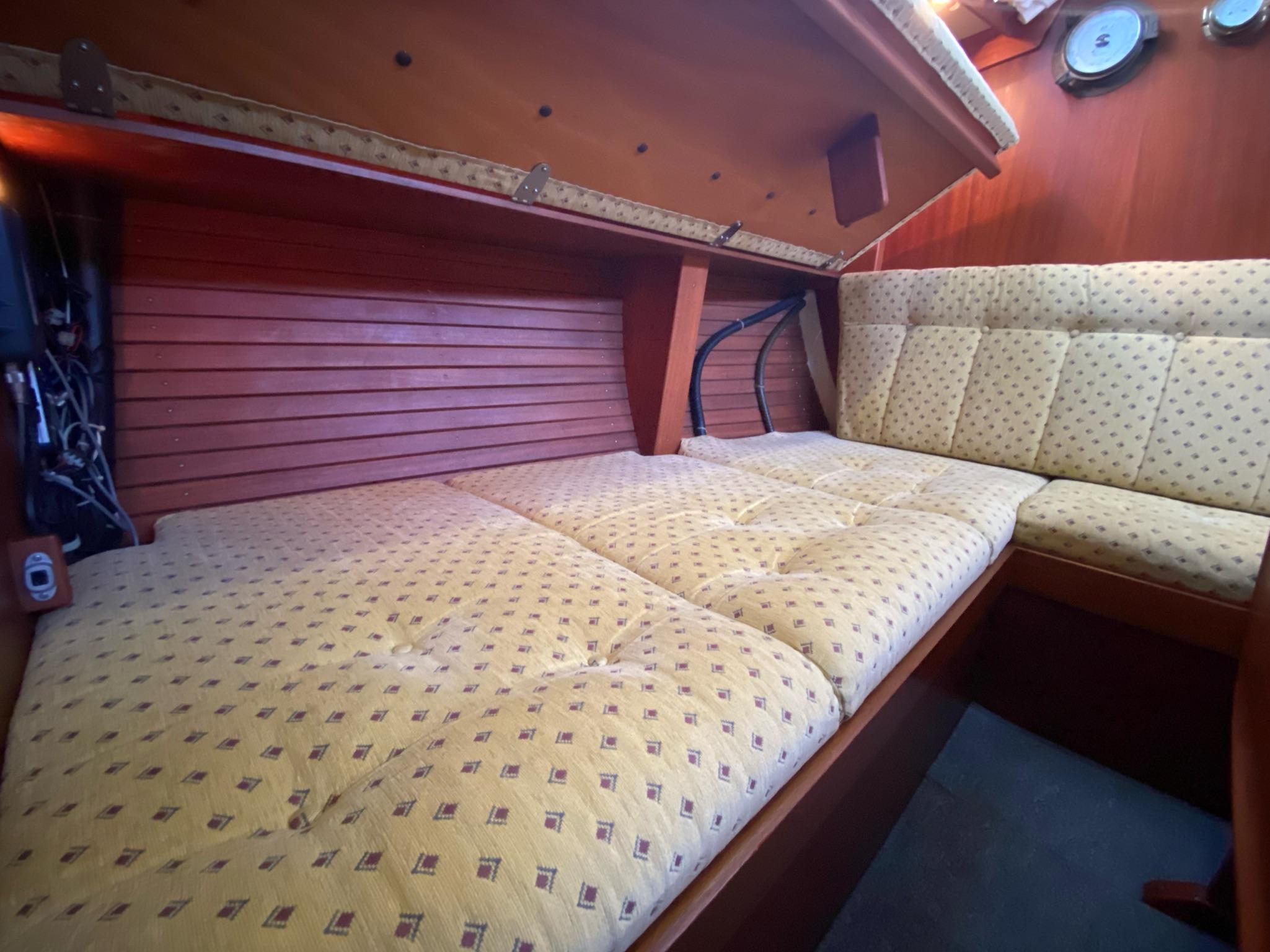

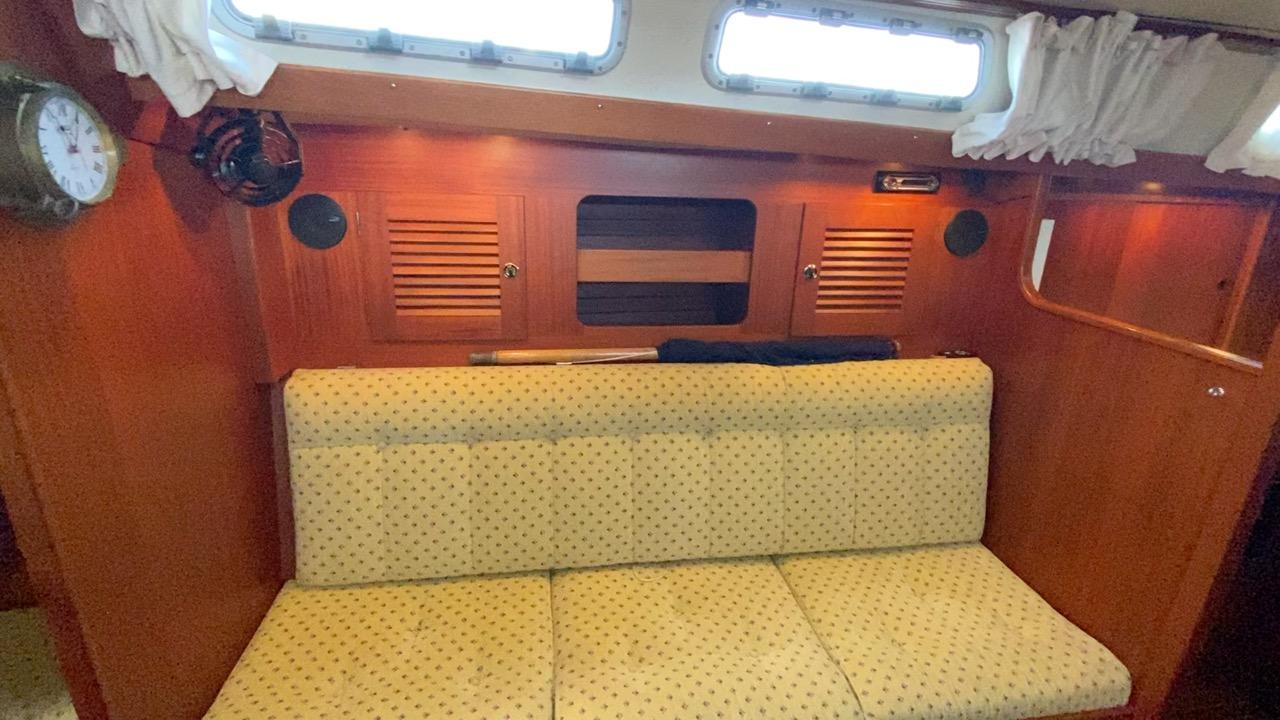

L-shaped settee berth to port with storage behind backrests. Straight berth to starboard with storage behind backrest and beneath berth. Above both backrests there are lockers and shelves.

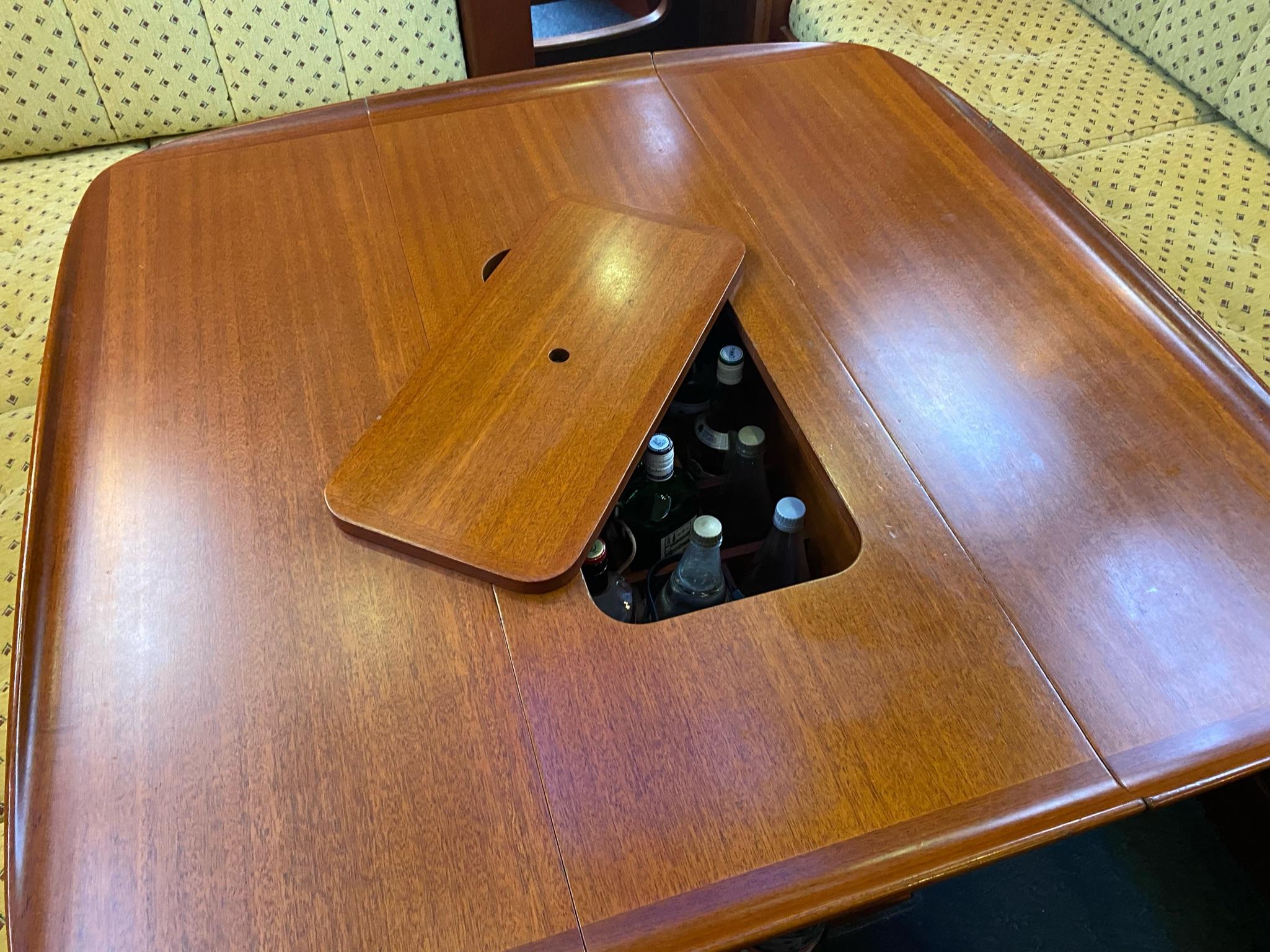

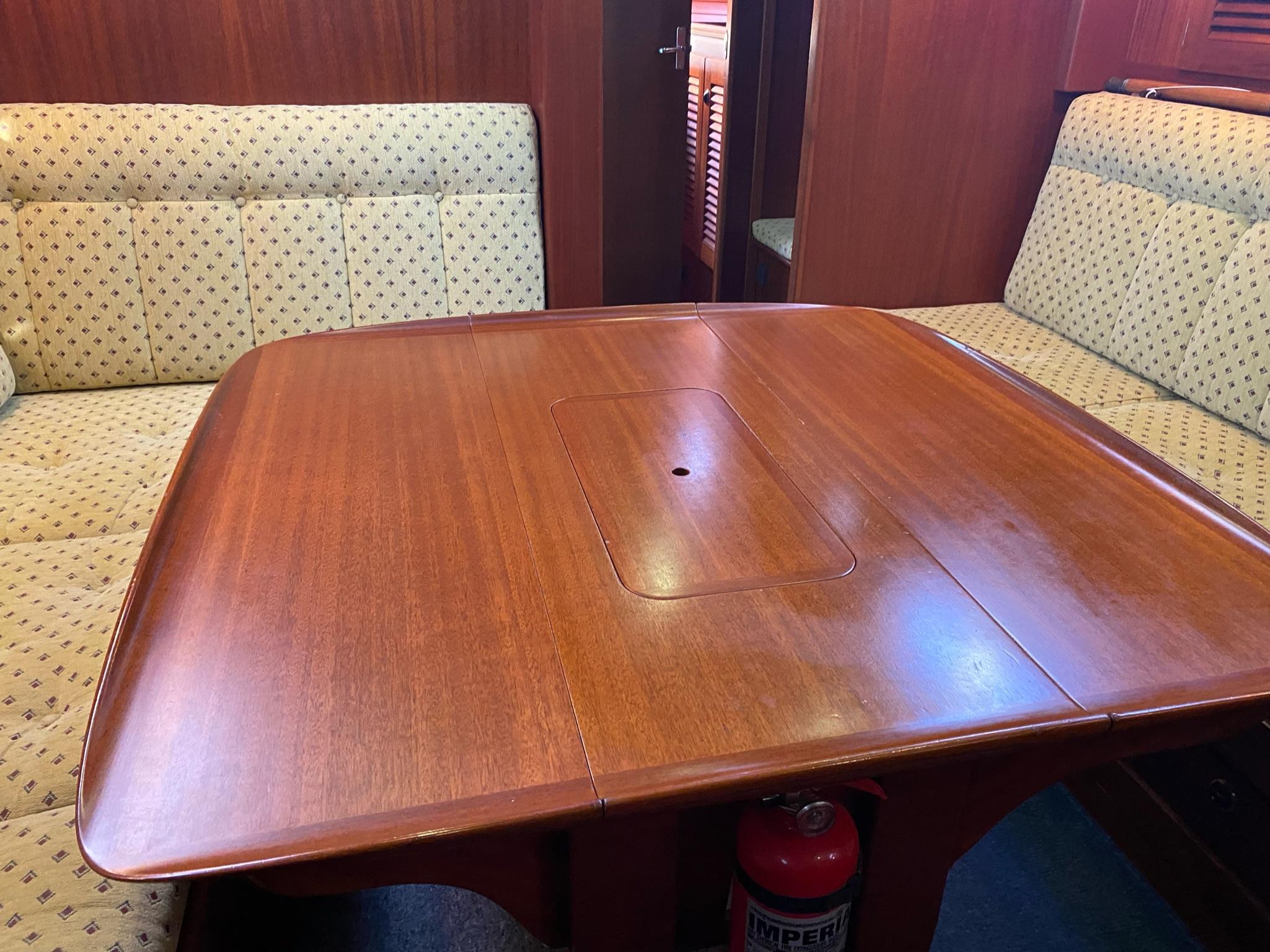

Dropleaf table in centre of saloon with opening centre section for bottle stowage. Saloon
headroom 1.98m (6' 6").

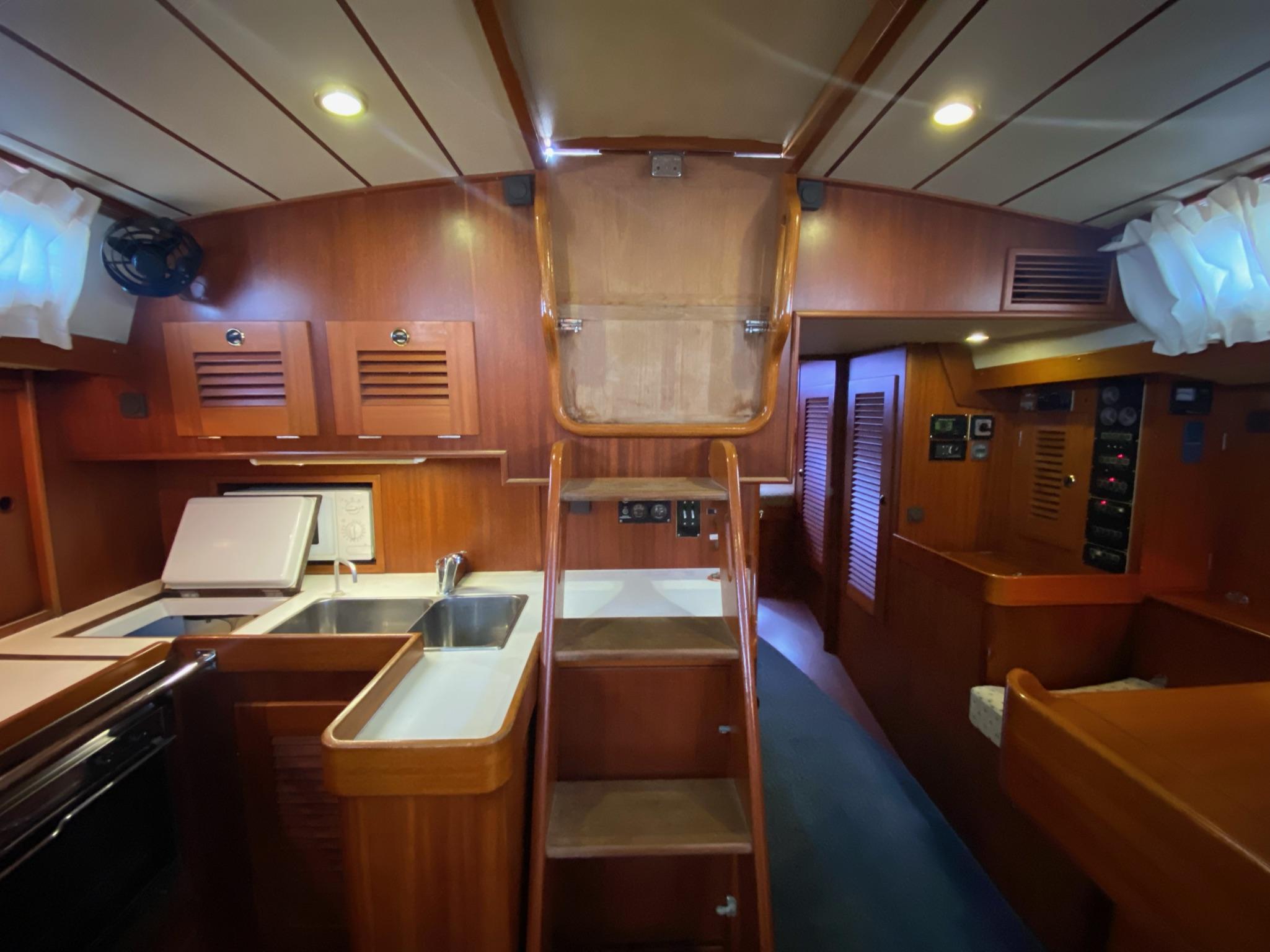

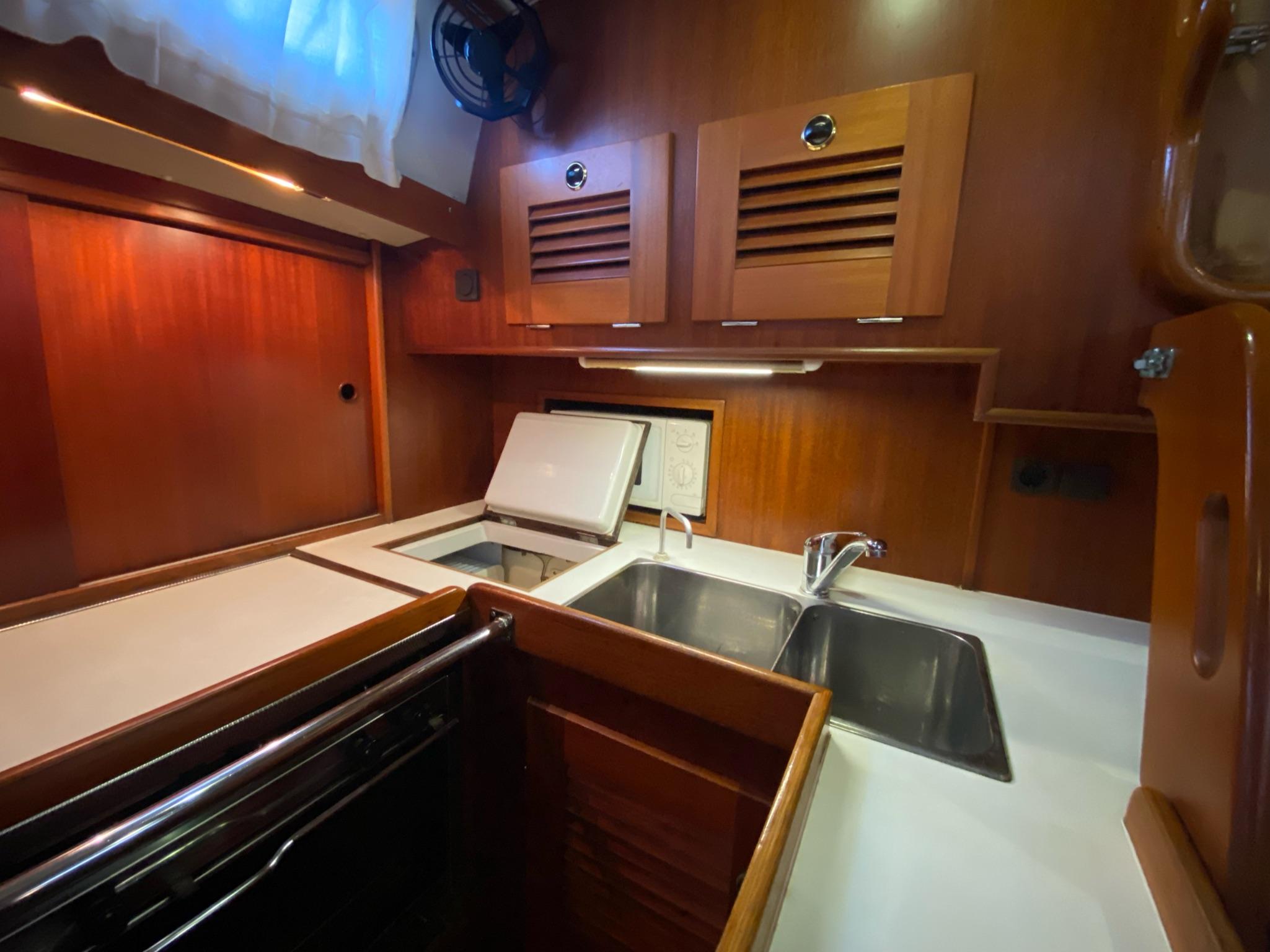

GALLEY:

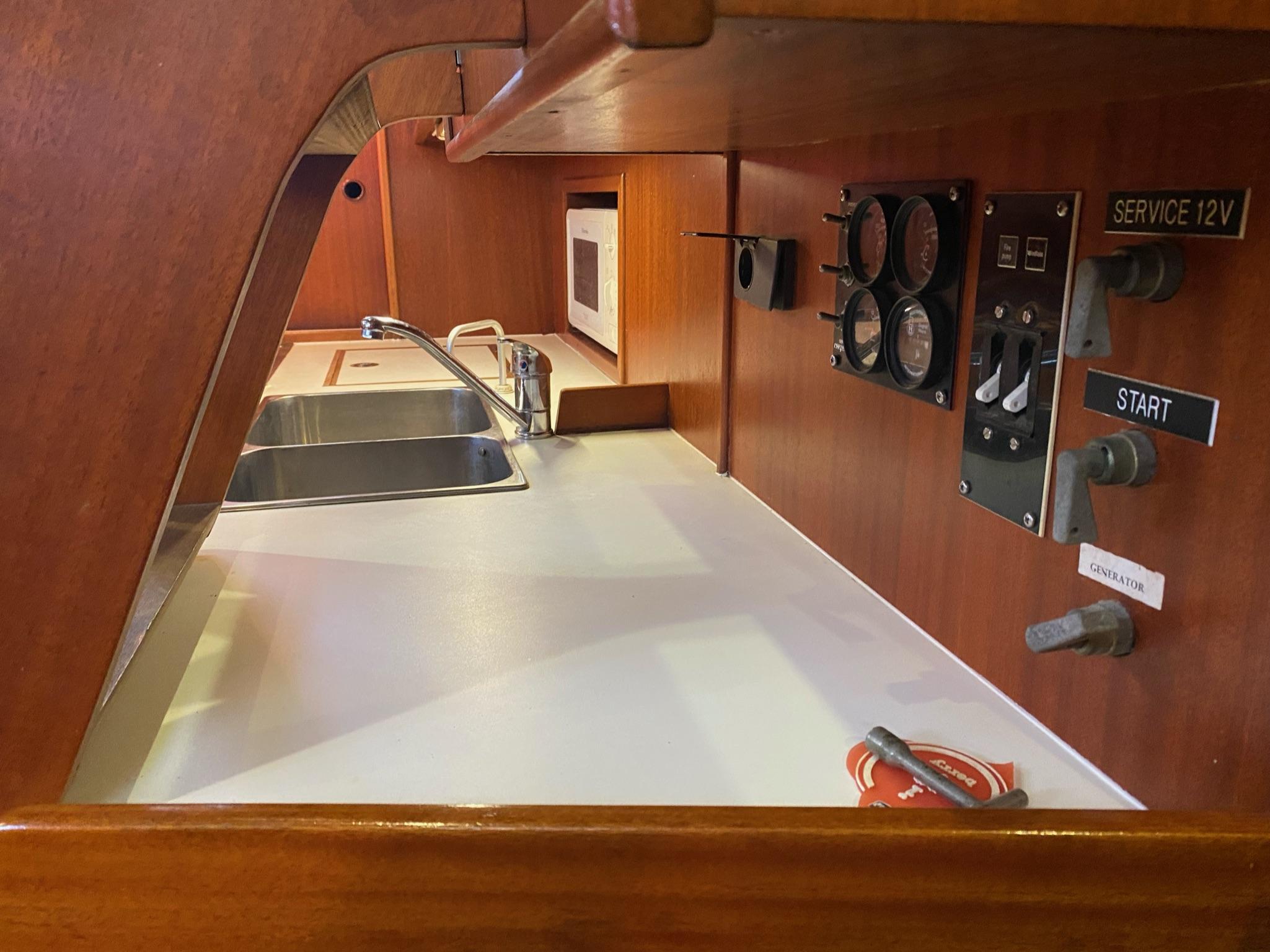

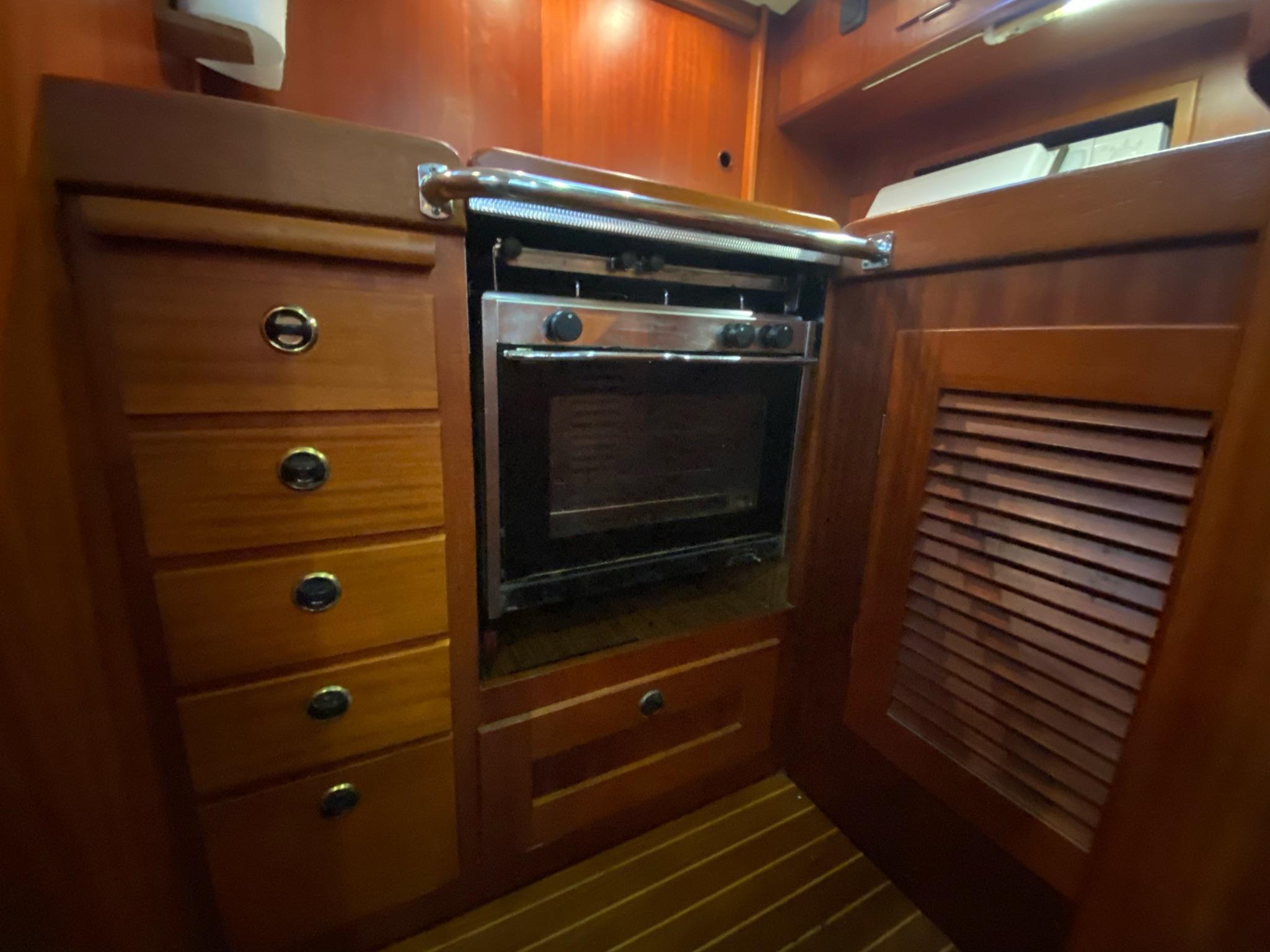

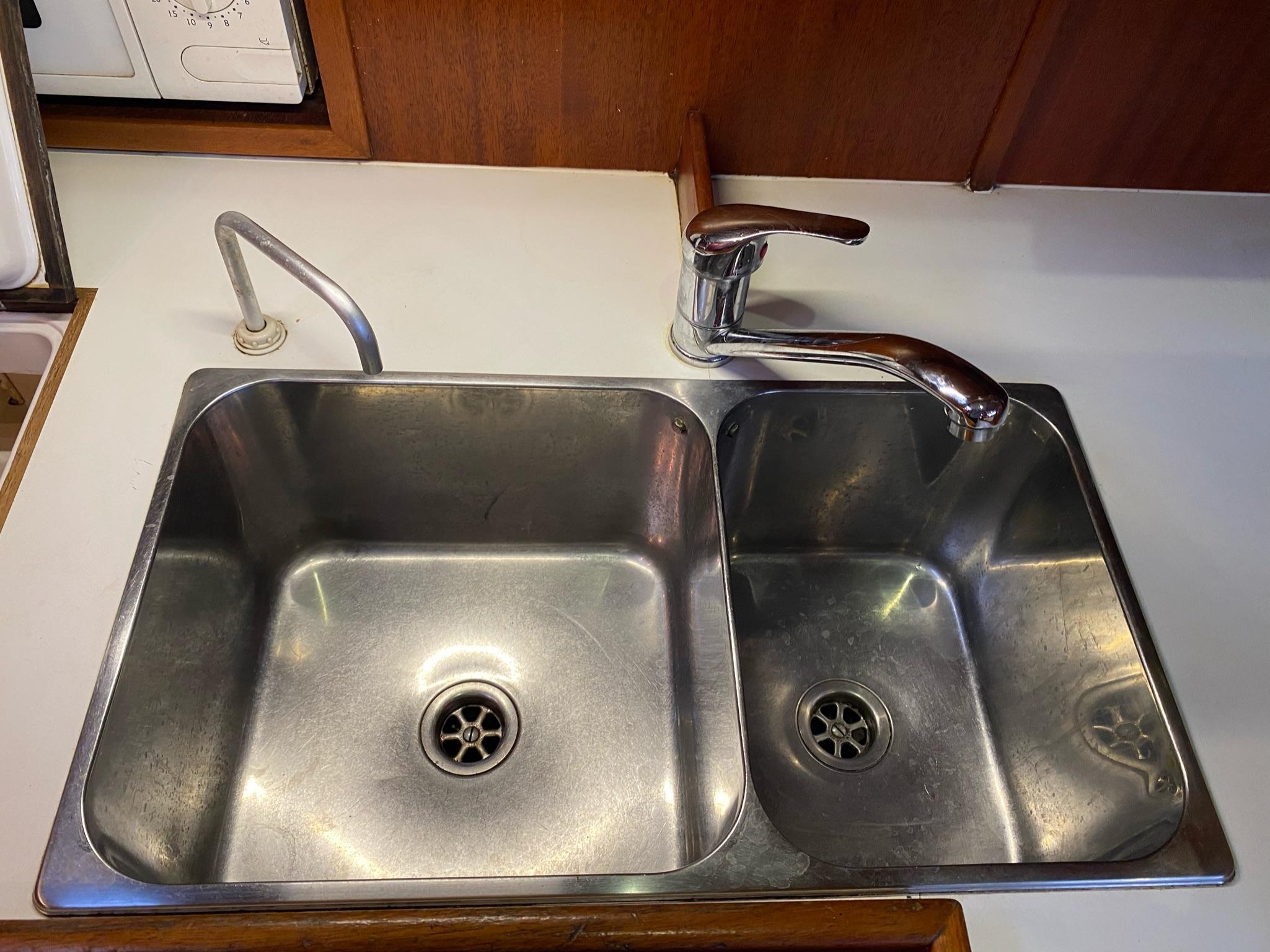

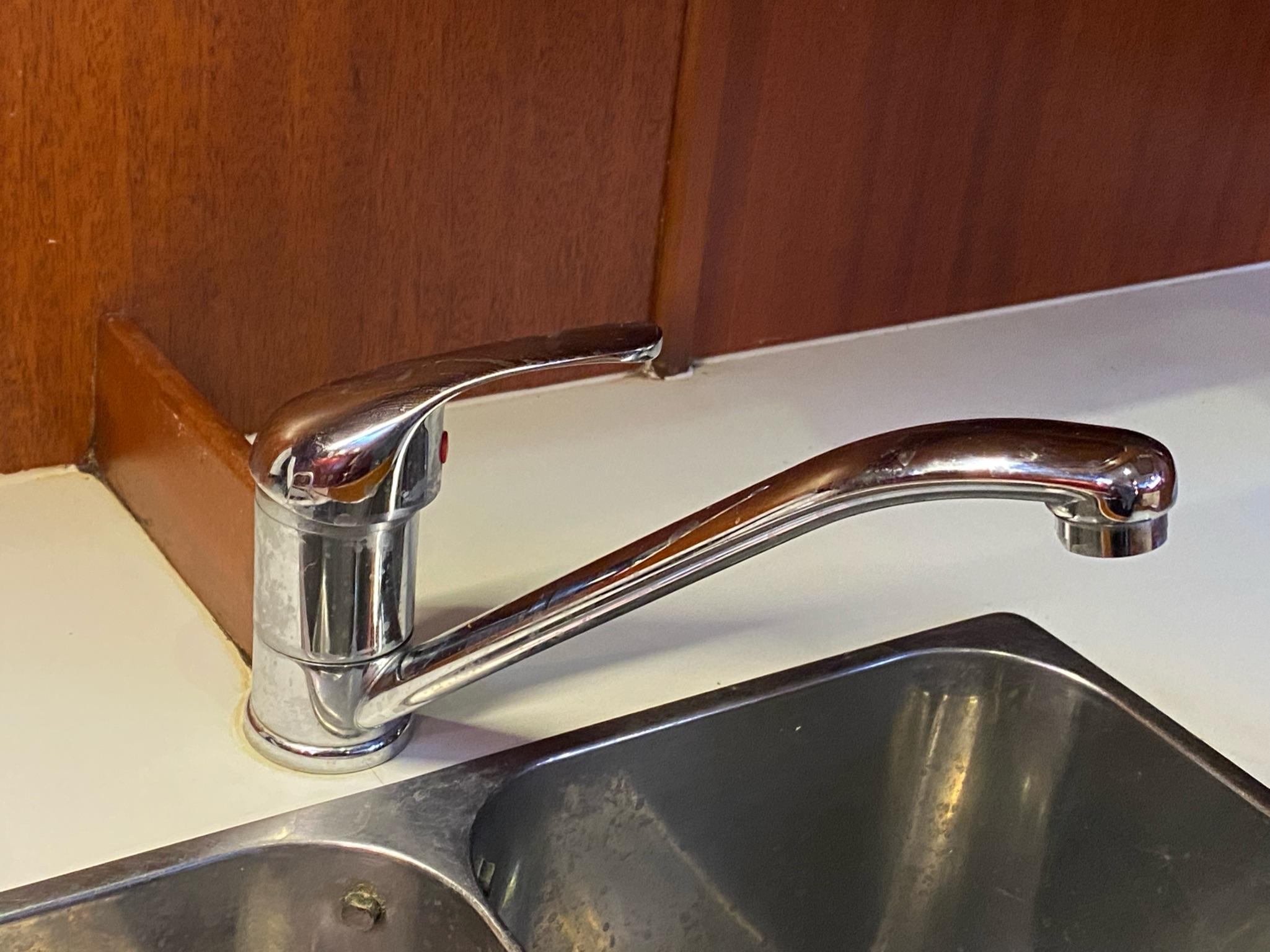

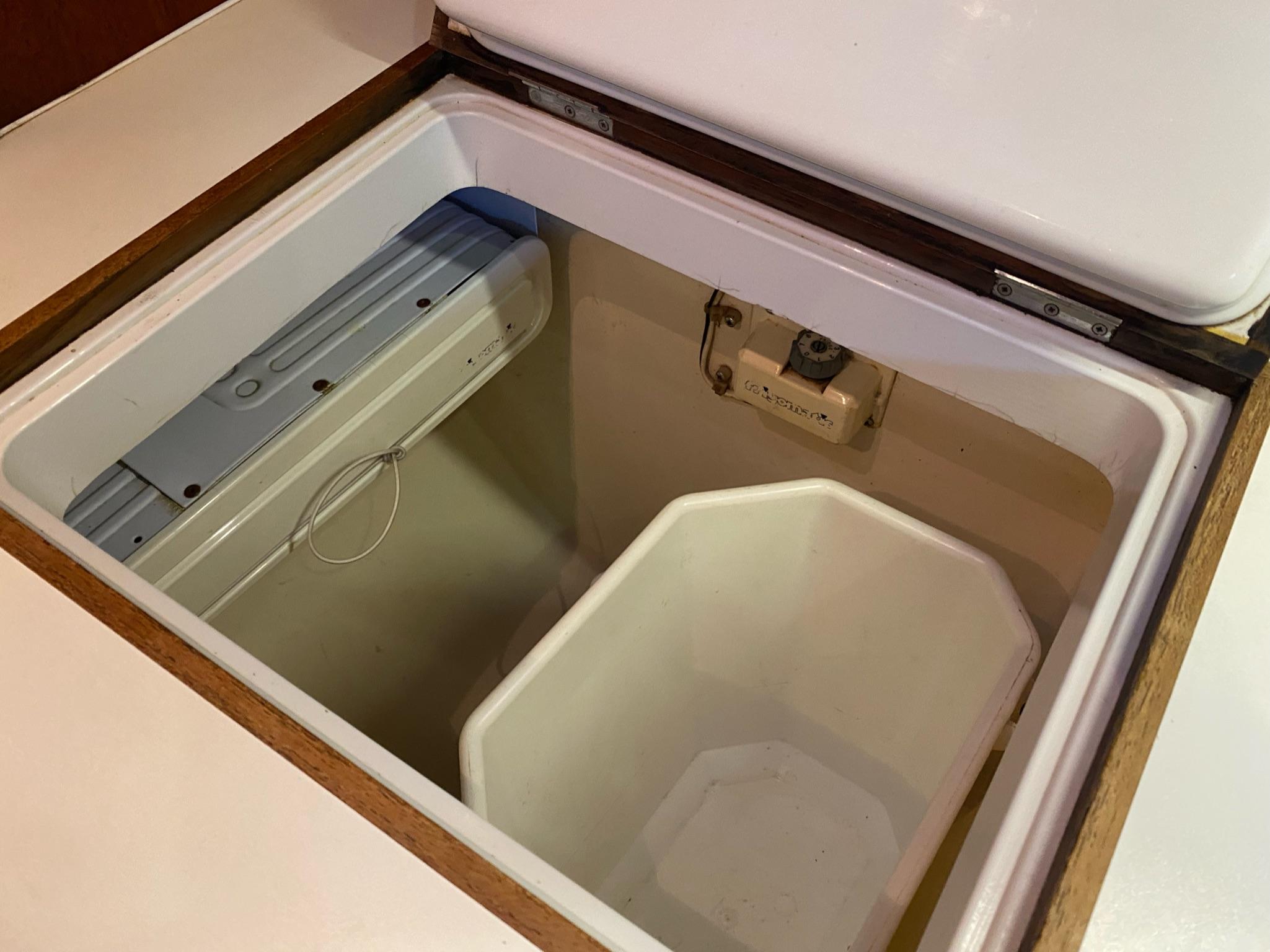

Double stainless steel sink with hot/cold mixer and fw foot operated faucet. White laminate work surfaces with all round fiddle rail. Two burner gas stove with oven on gimbals. Last Gas Safety check May 2023. 12v Frigomatic refrigeration unit in top-loading insulated cool box. Drawers & cupboards for crockery, cutlery & saucepans, etc. Stowage under sinks for waste bin.

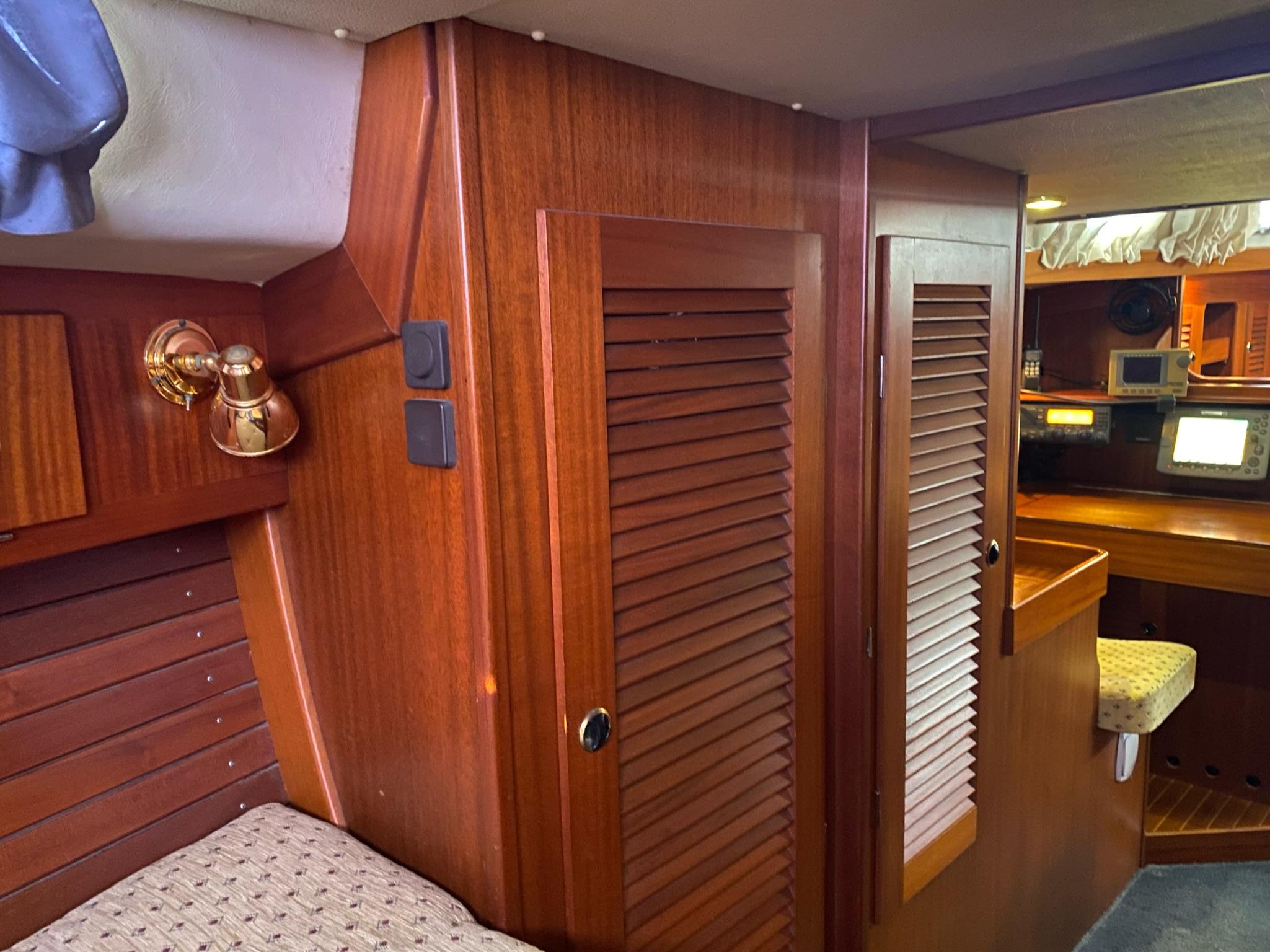

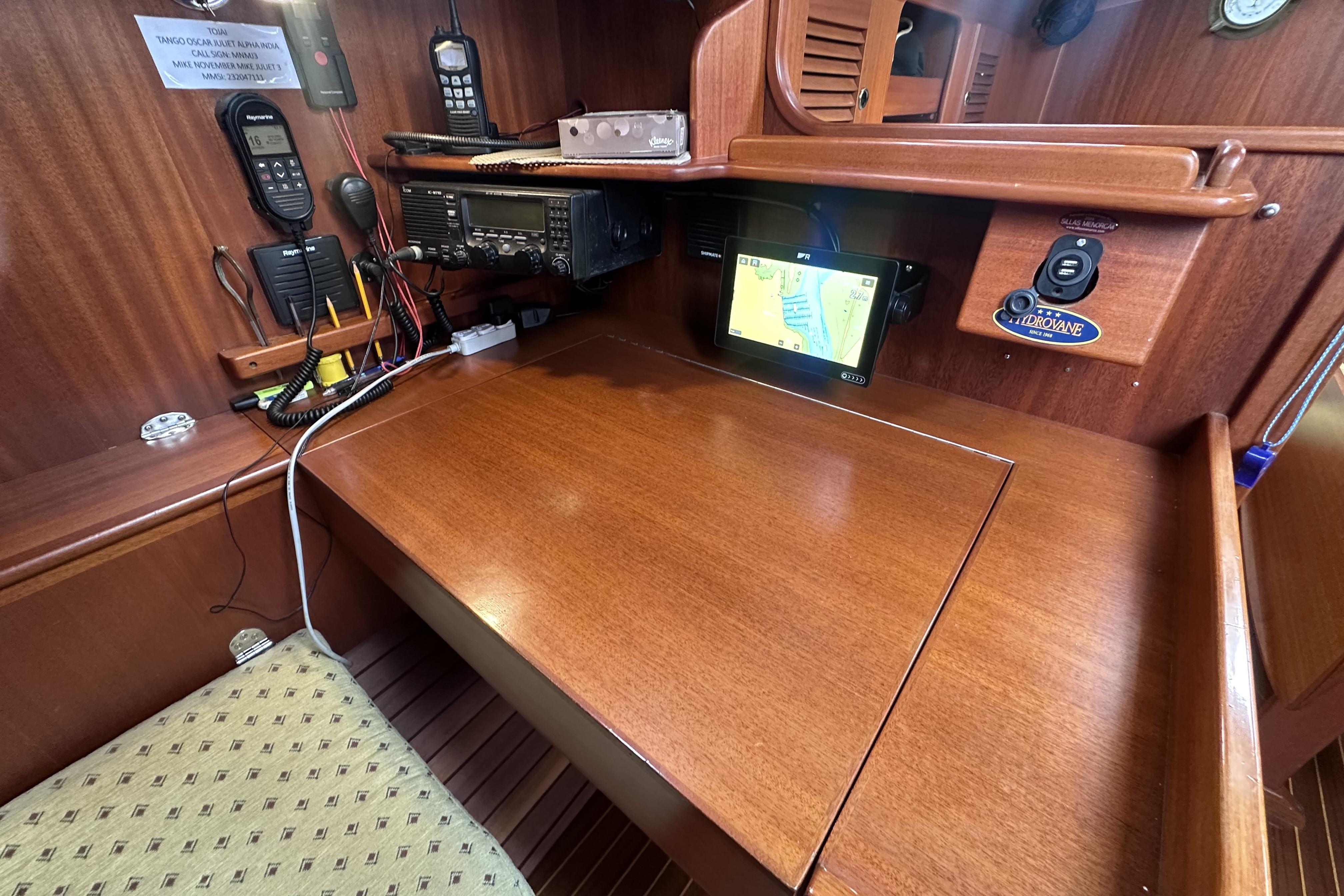

CHART TABLE:

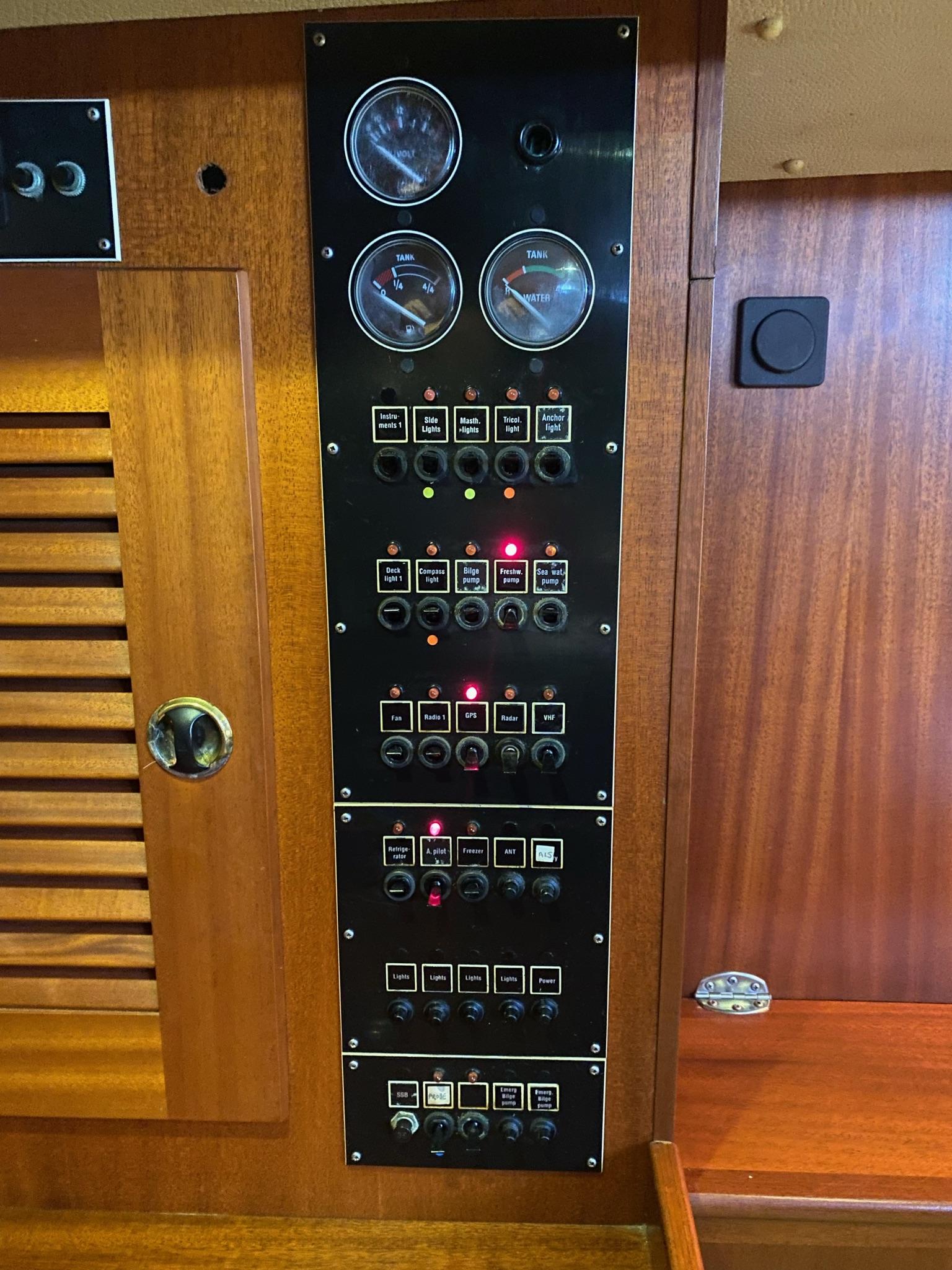

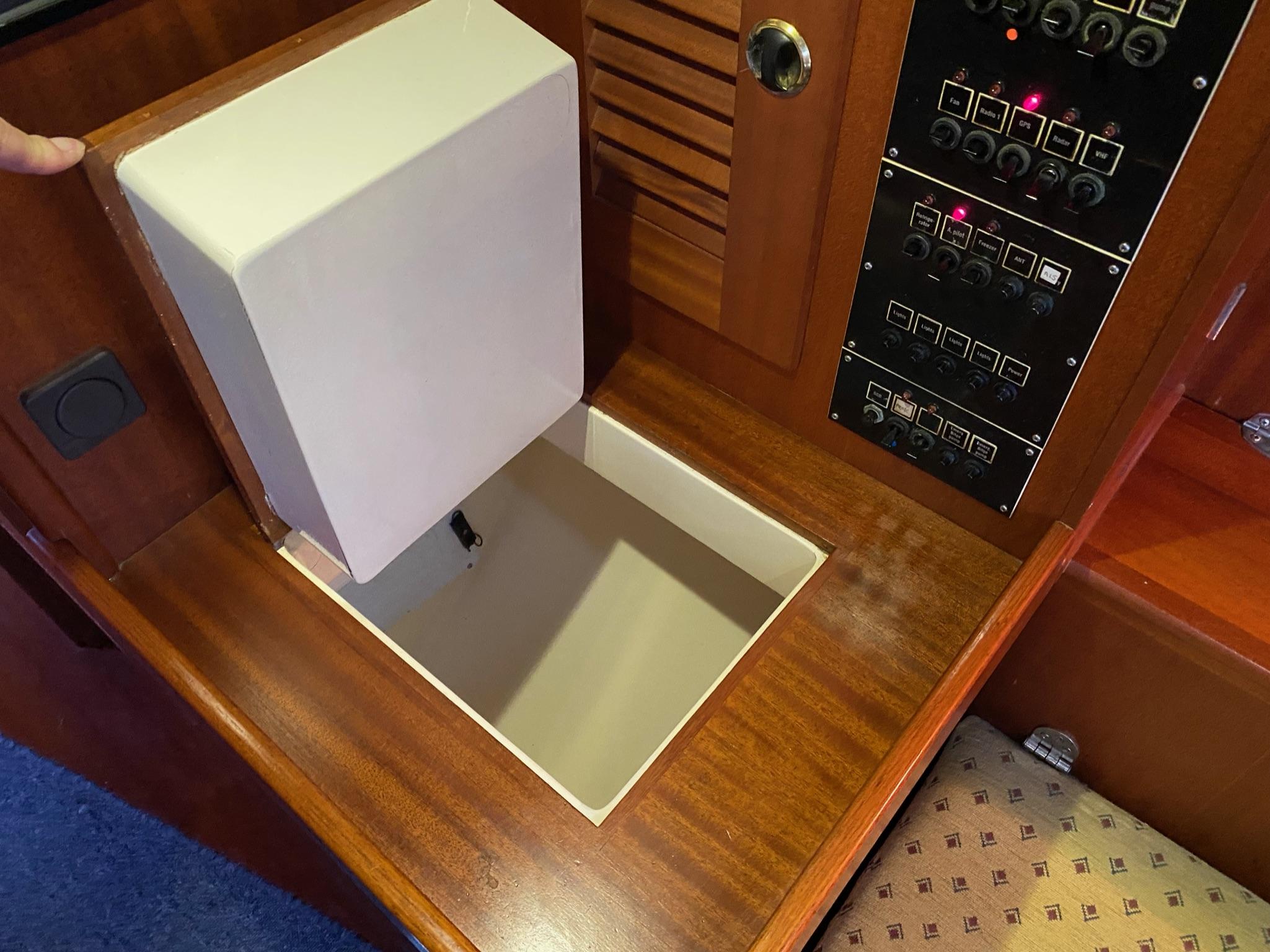

Forward facing chart table with full size chart stowage & shelf for navigation instruments. Drawers, stowage under seat. Behind navigator's seat there are further stowage lockers and a top loading freezer. Electric switch panel with voltmeter, fuel & water gauges. Engine room double door access opposite.

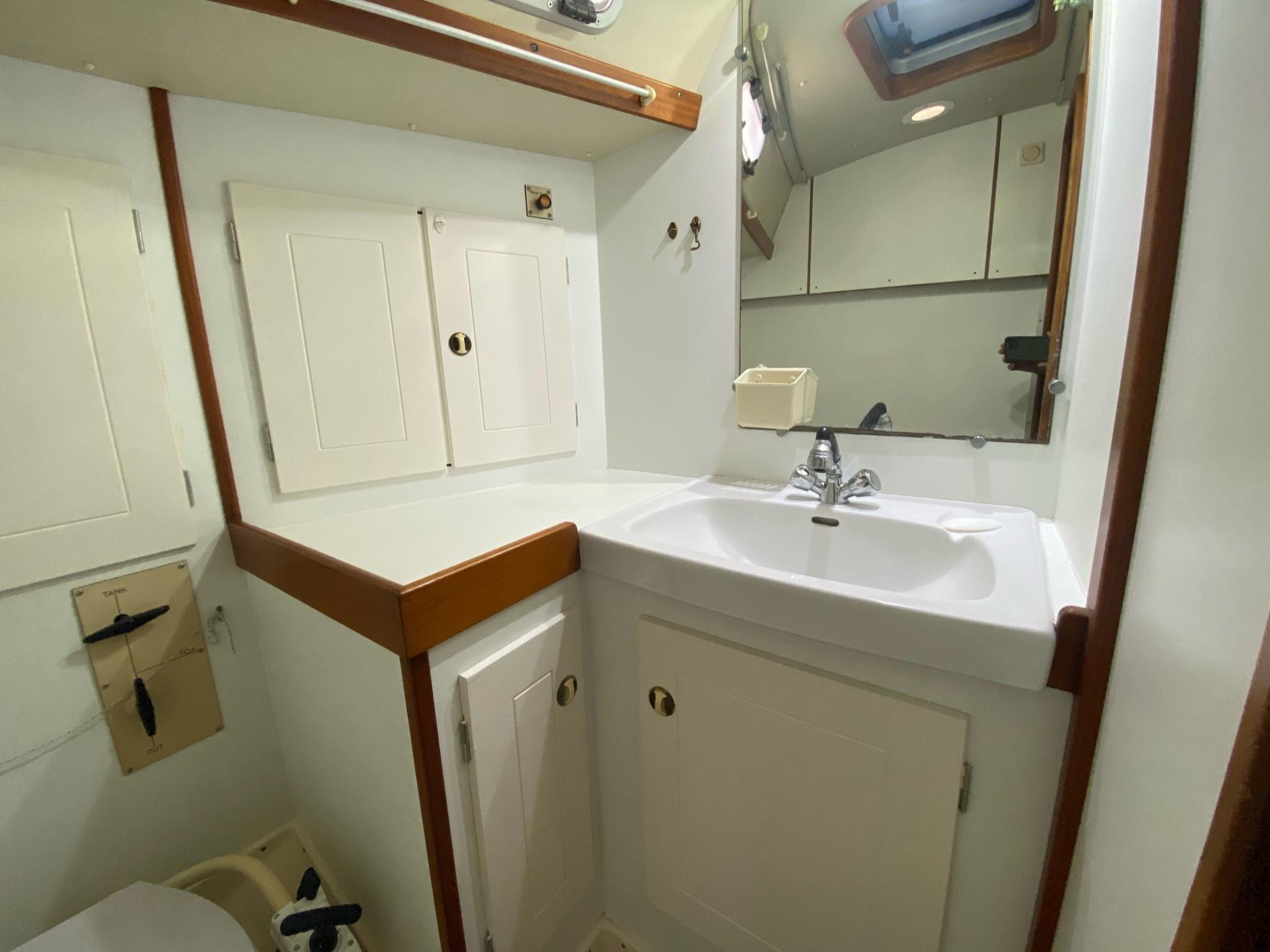

HEADS COMPARTMENT:

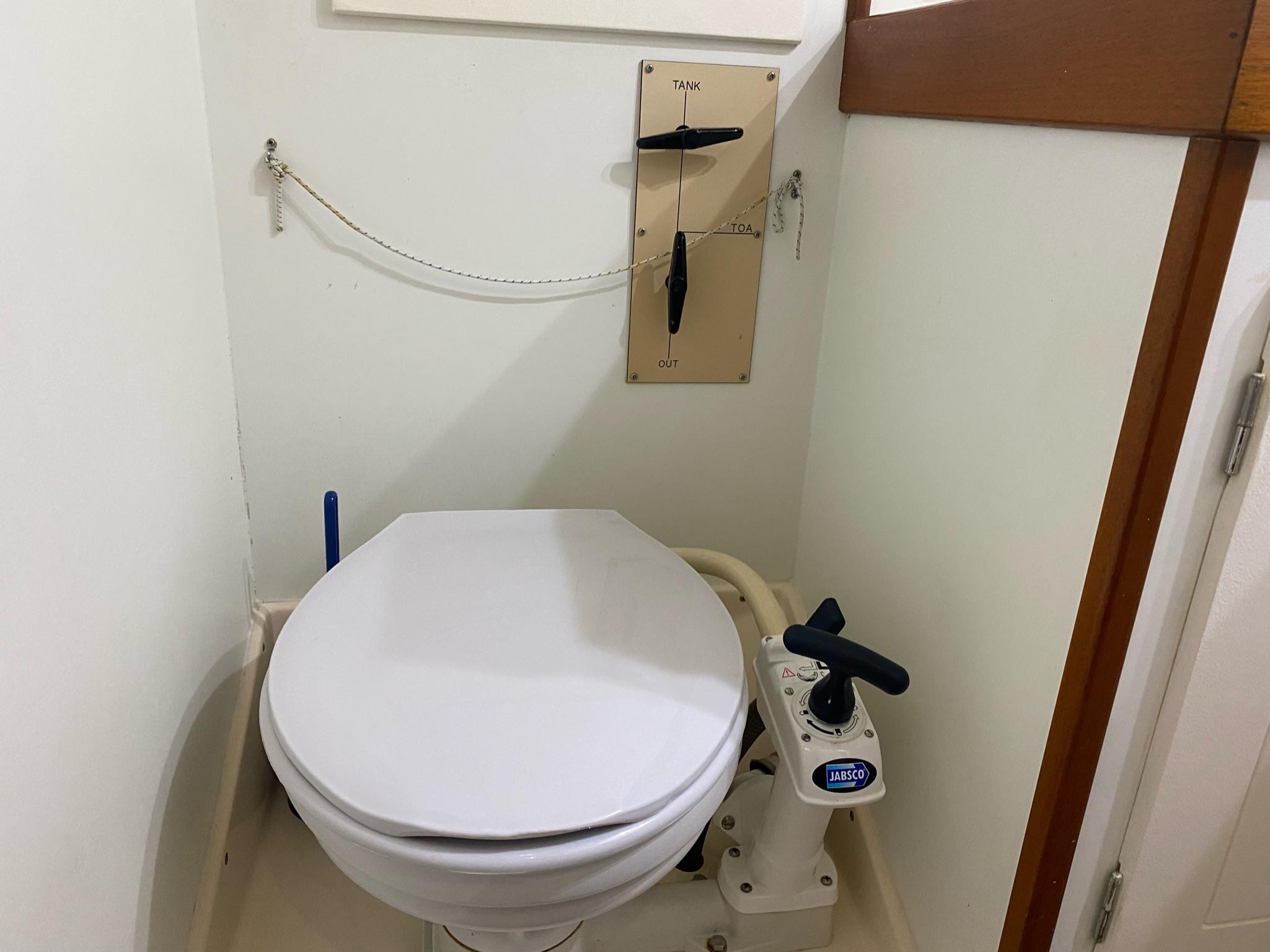

Porcelain sink with hot & cold pressurised water. Teak grating. 12v shower waste water pump. Stainless steel holding tank, 70 litre capacity, in cupboard behind Jabsco marine toilet. Storage above & below sink. Mirror. Opening portlight & ceiling hatch. Ventilator.
Headroom 1.88m (6’ 2”).

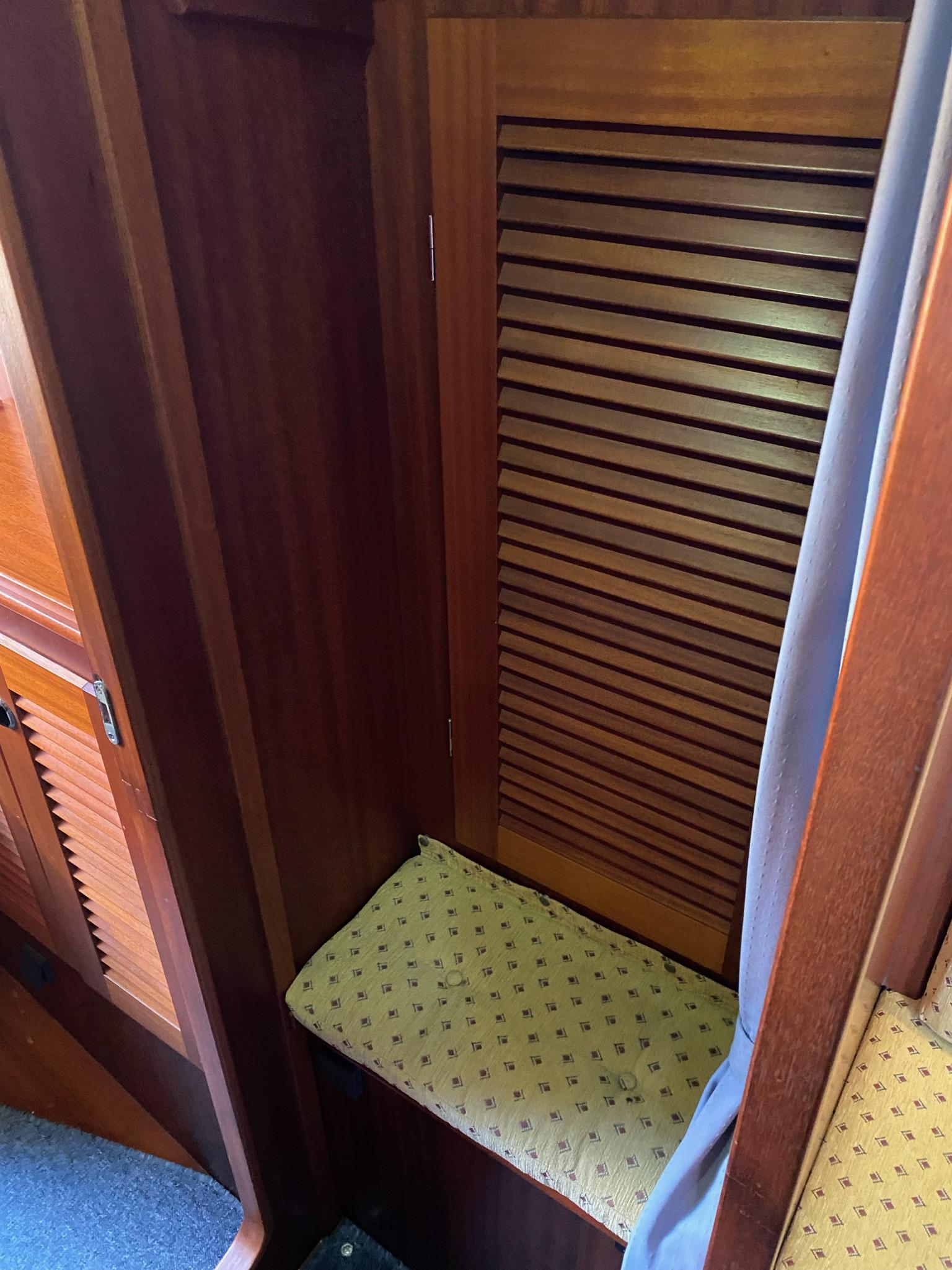

Opposite heads compartment is a single bench seat & hanging locker.

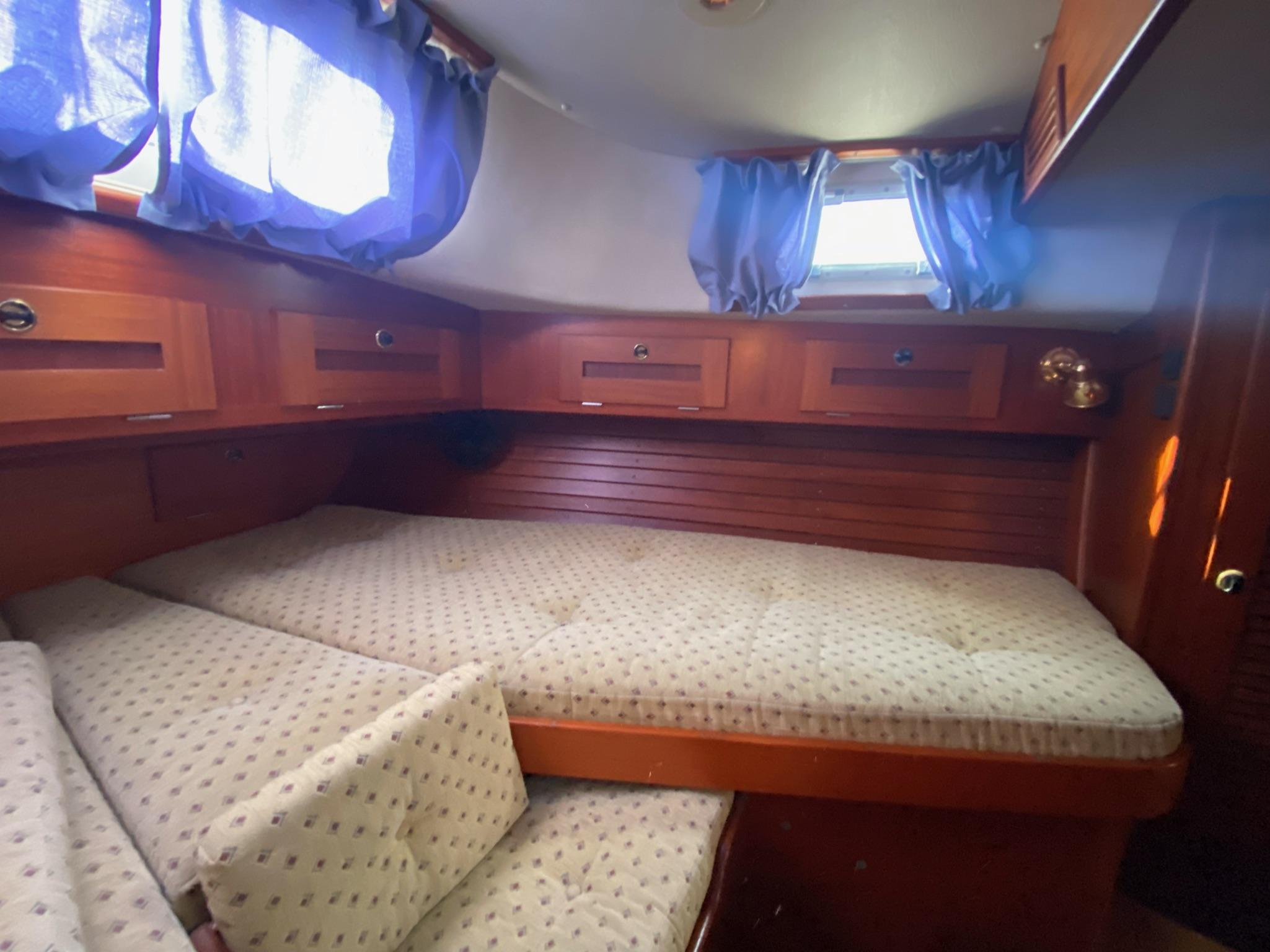

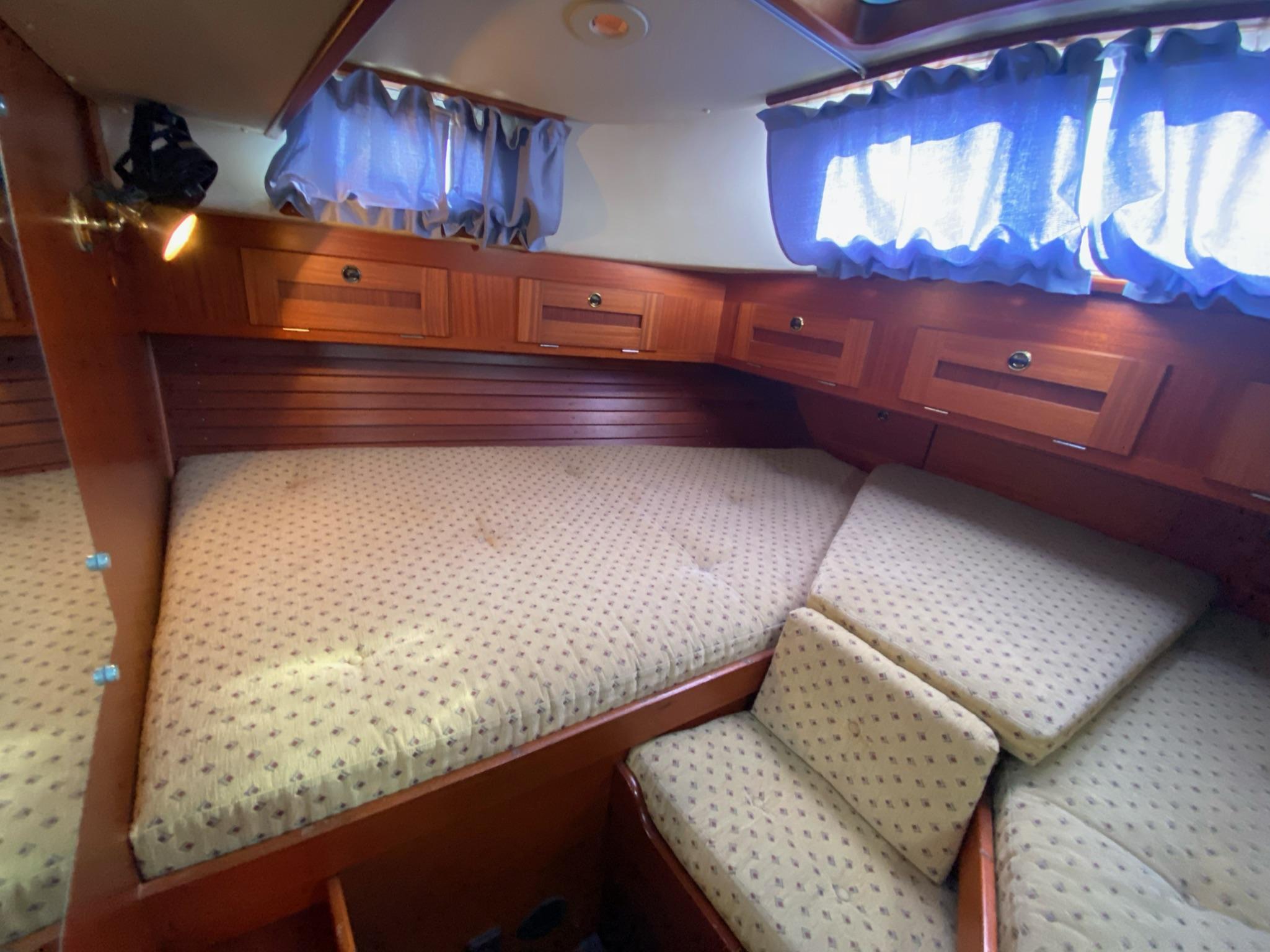

AFT CABIN:
Double berth to starboard & single to port. Length of berths 2.15m, width 1.1m & 0.68m.

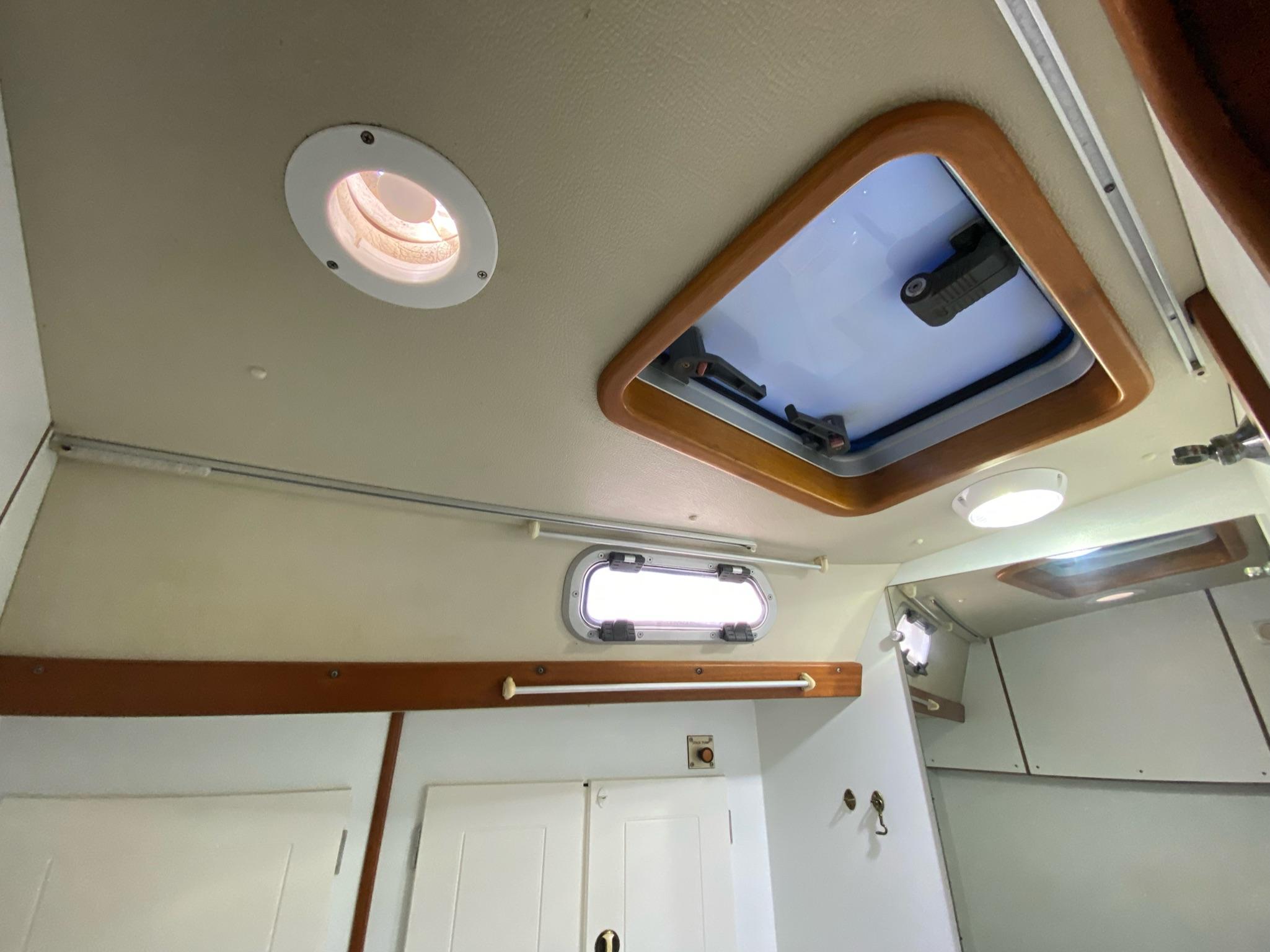

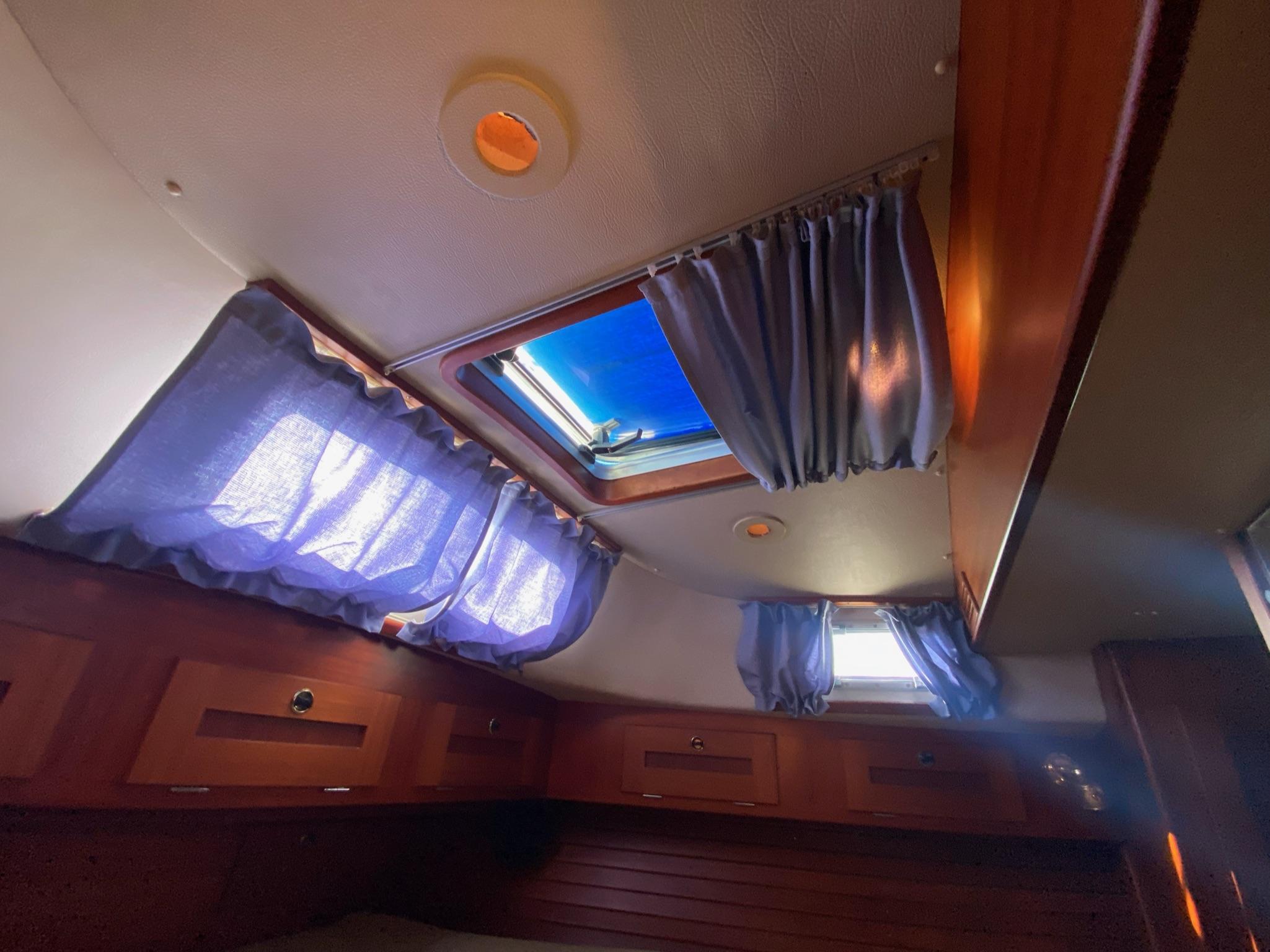

Small seat separating berths. Infill cushion to create huge sleeping area aft. Mirror. Headroom directly under opening ceiling hatch is 1.84m (6'). Storage below berths for batteries. 2 hanging lockers to port. Brass reading lamps.

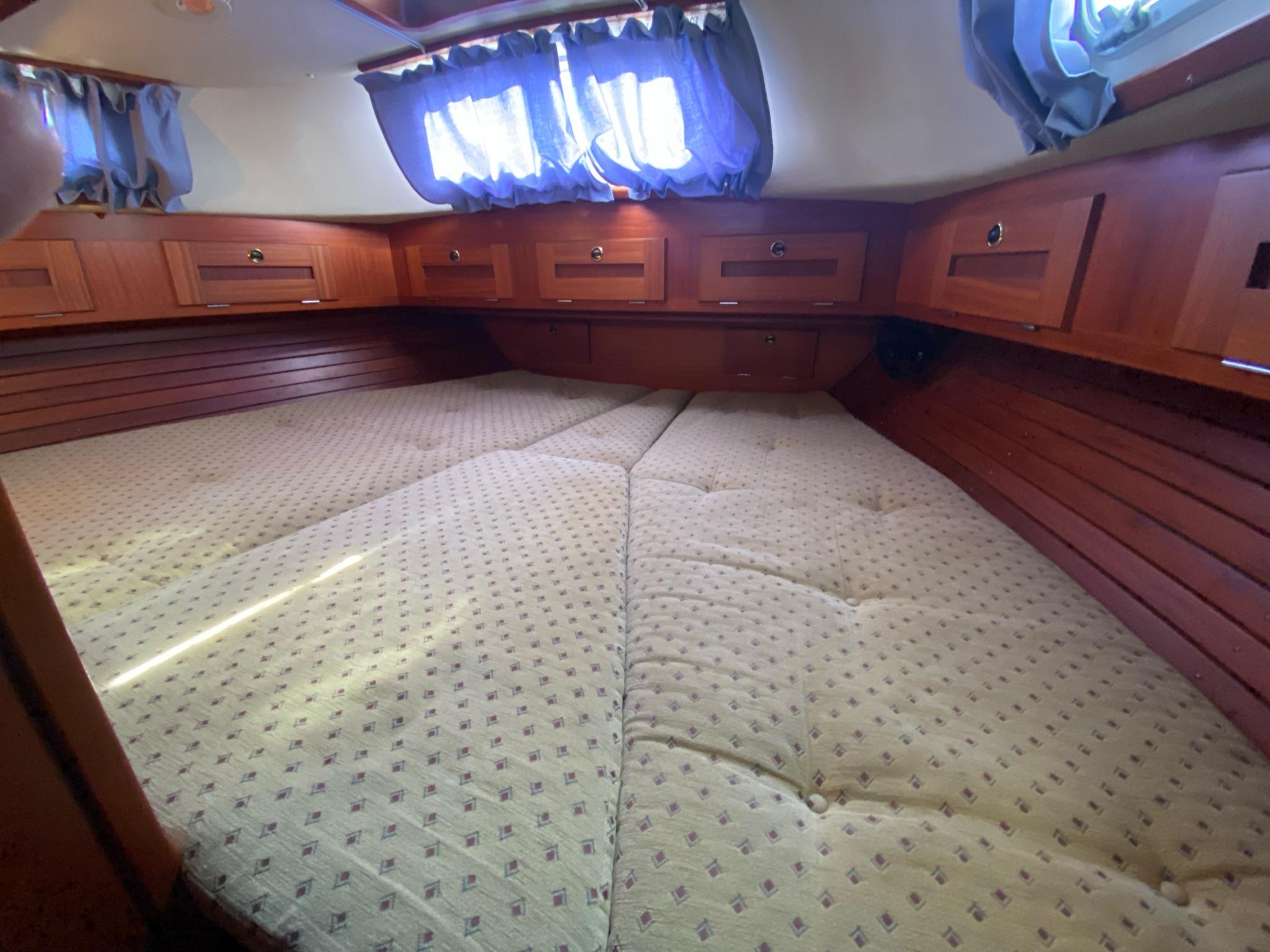

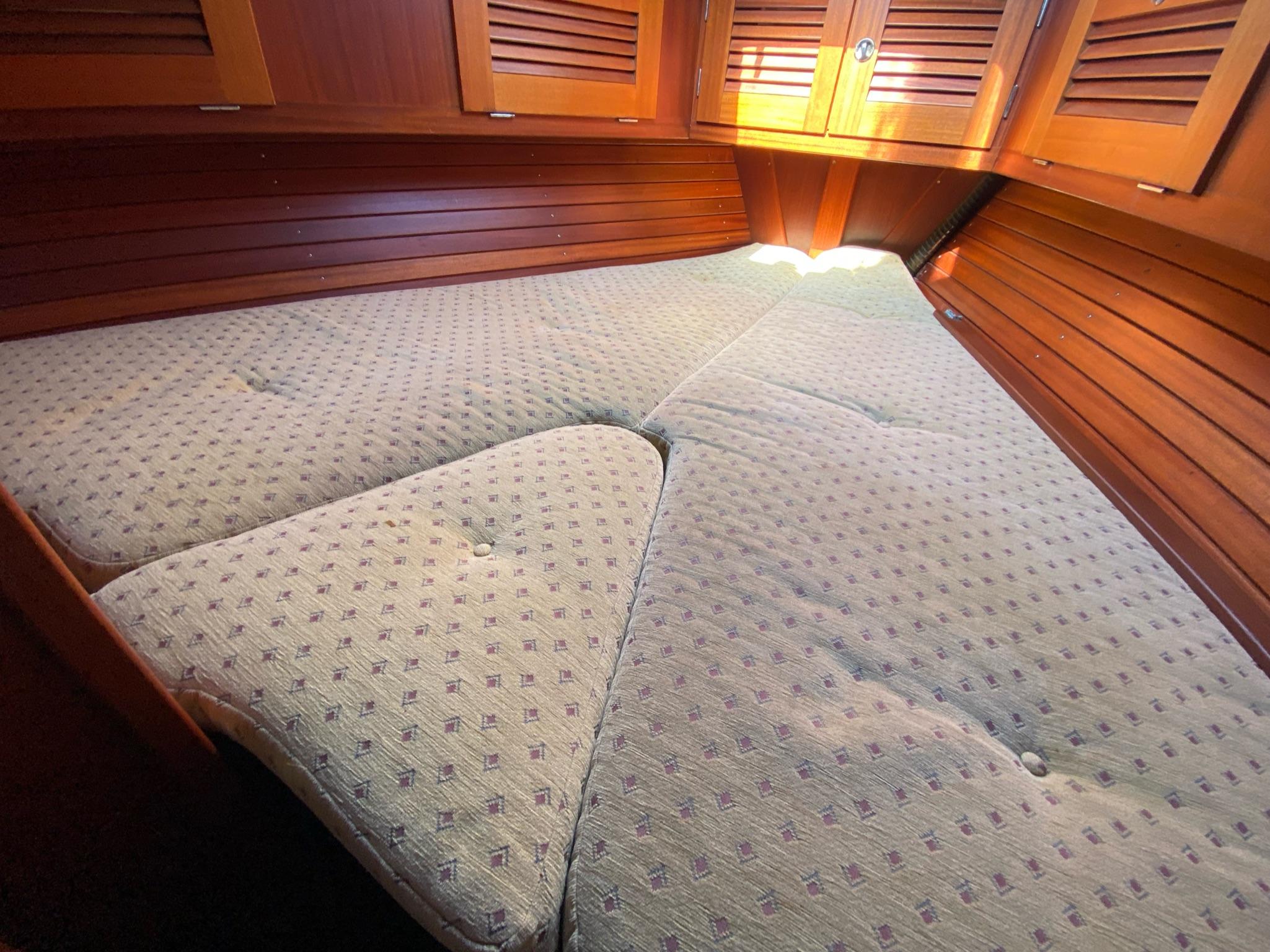

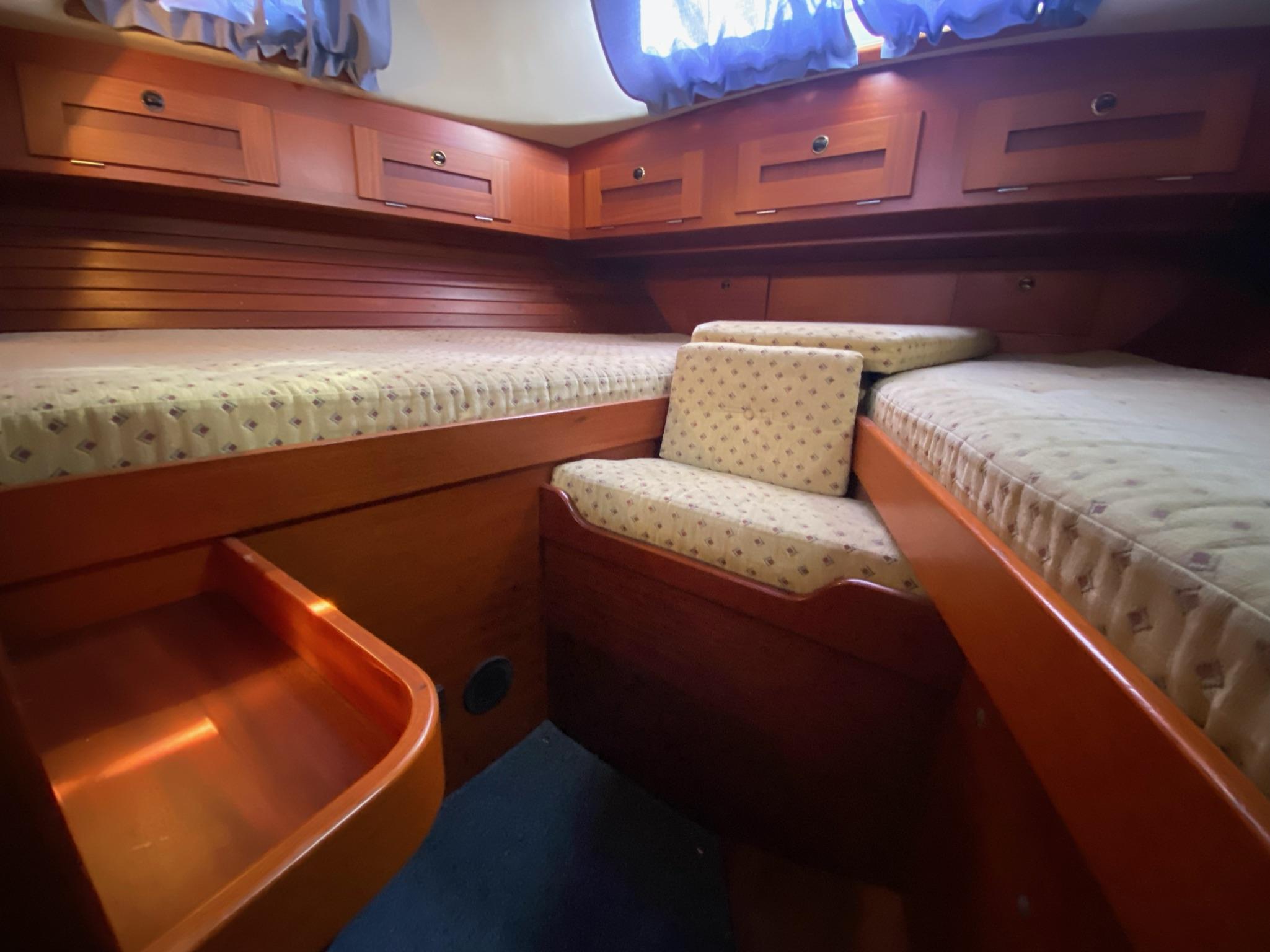

FORWARD CABIN:
V-berth with infill cushion. Ample stowage below berths for sails & other storage items. Lockers above berths. Vanity unit to starboard & hanging lockers. Opening ceiling hatch & portlights. Brass reading lamps. Headroom 1.87m (6’ 1½”).
Mechanical & Electrical Systems

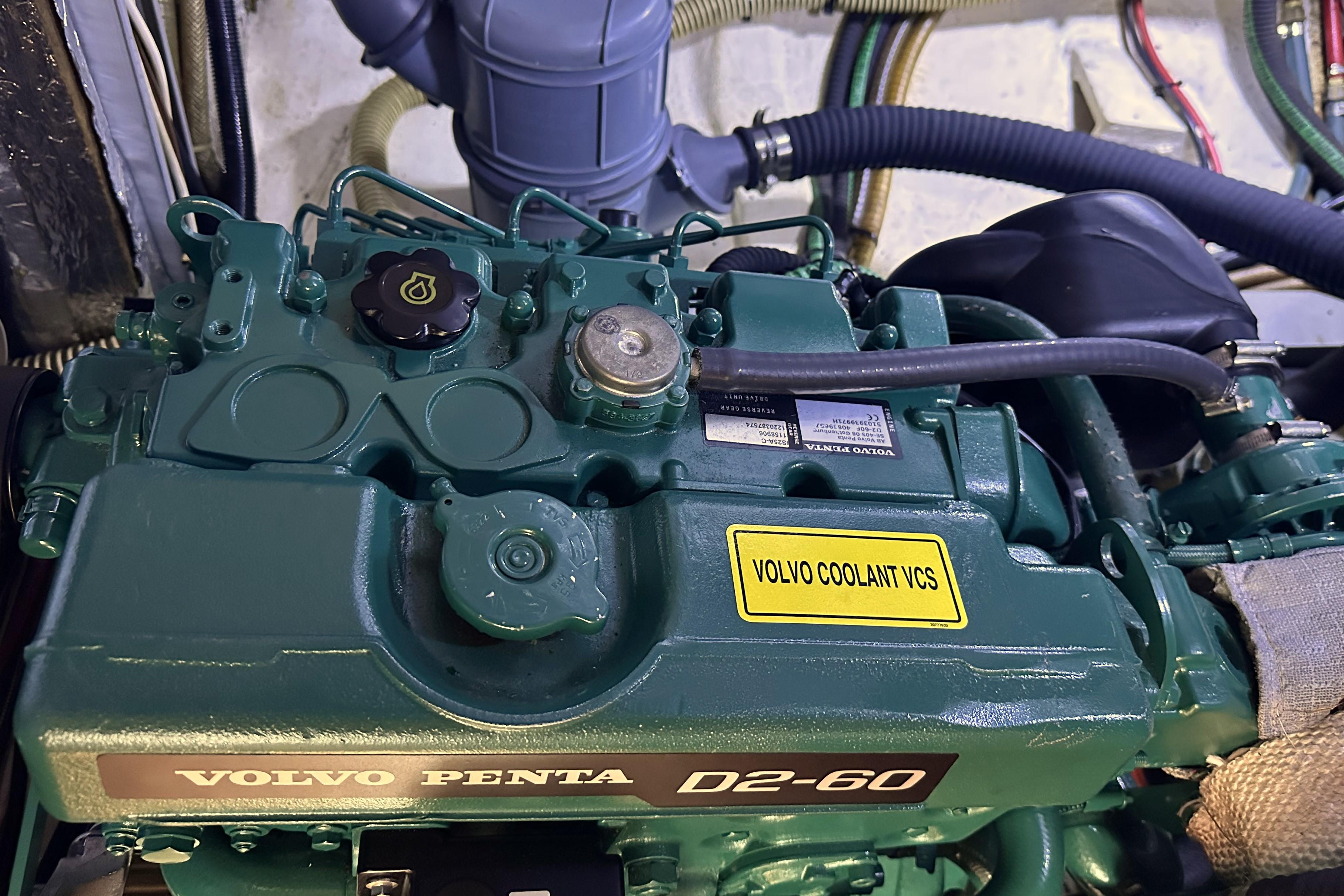

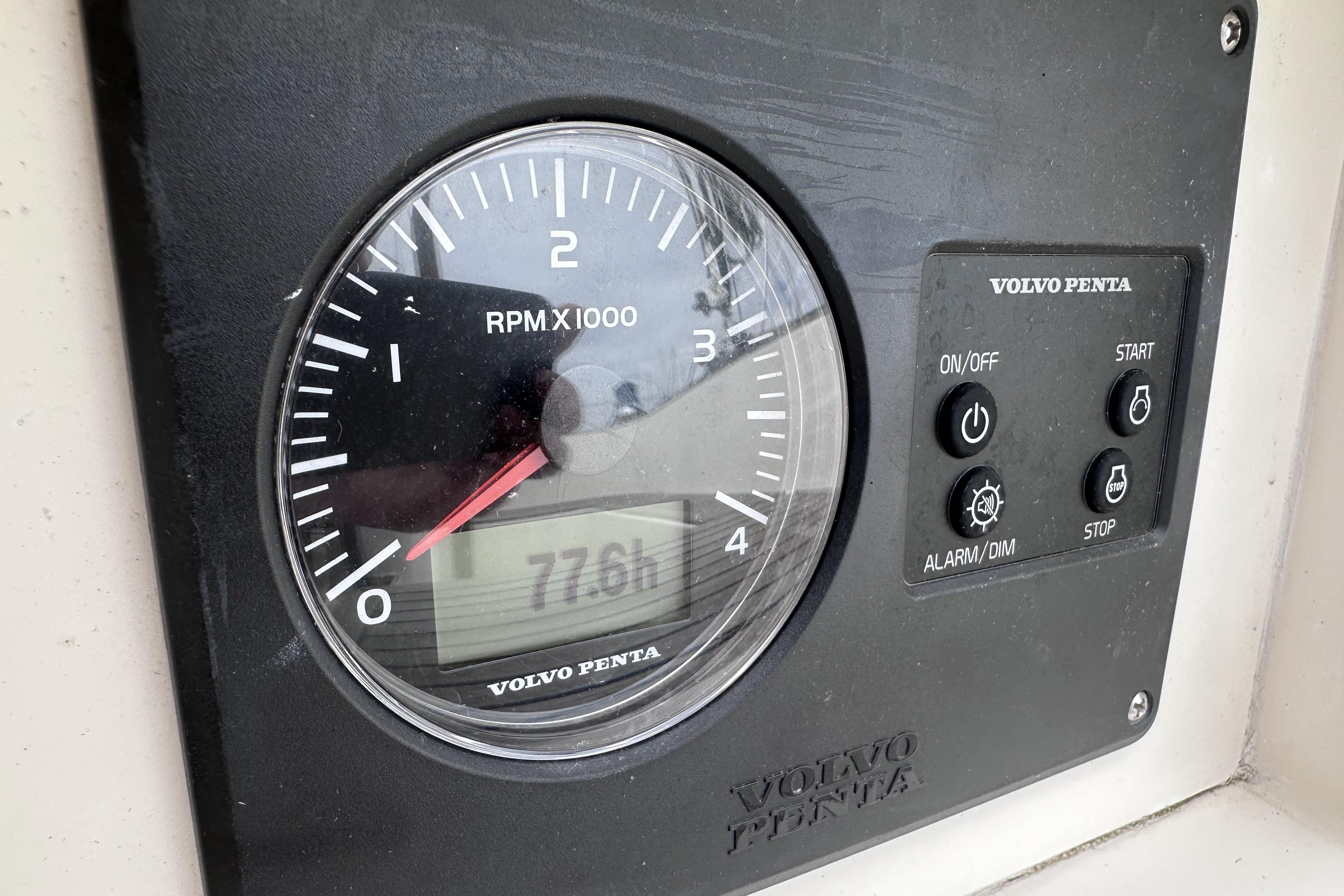

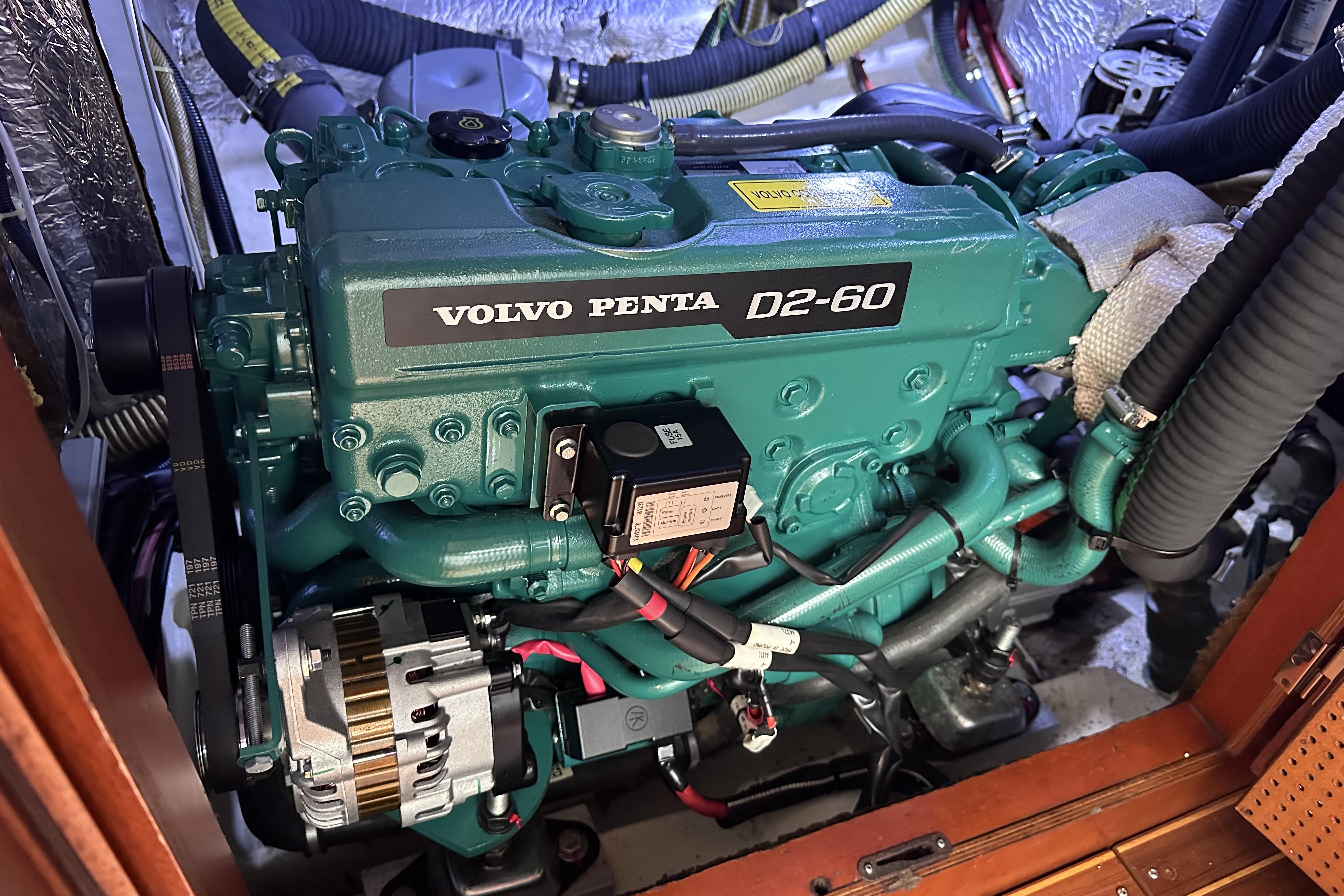

Volvo Penta D2-60 4 cylinder fresh water cooled diesel engine, New 2023
Wheel steering with single lever engine control

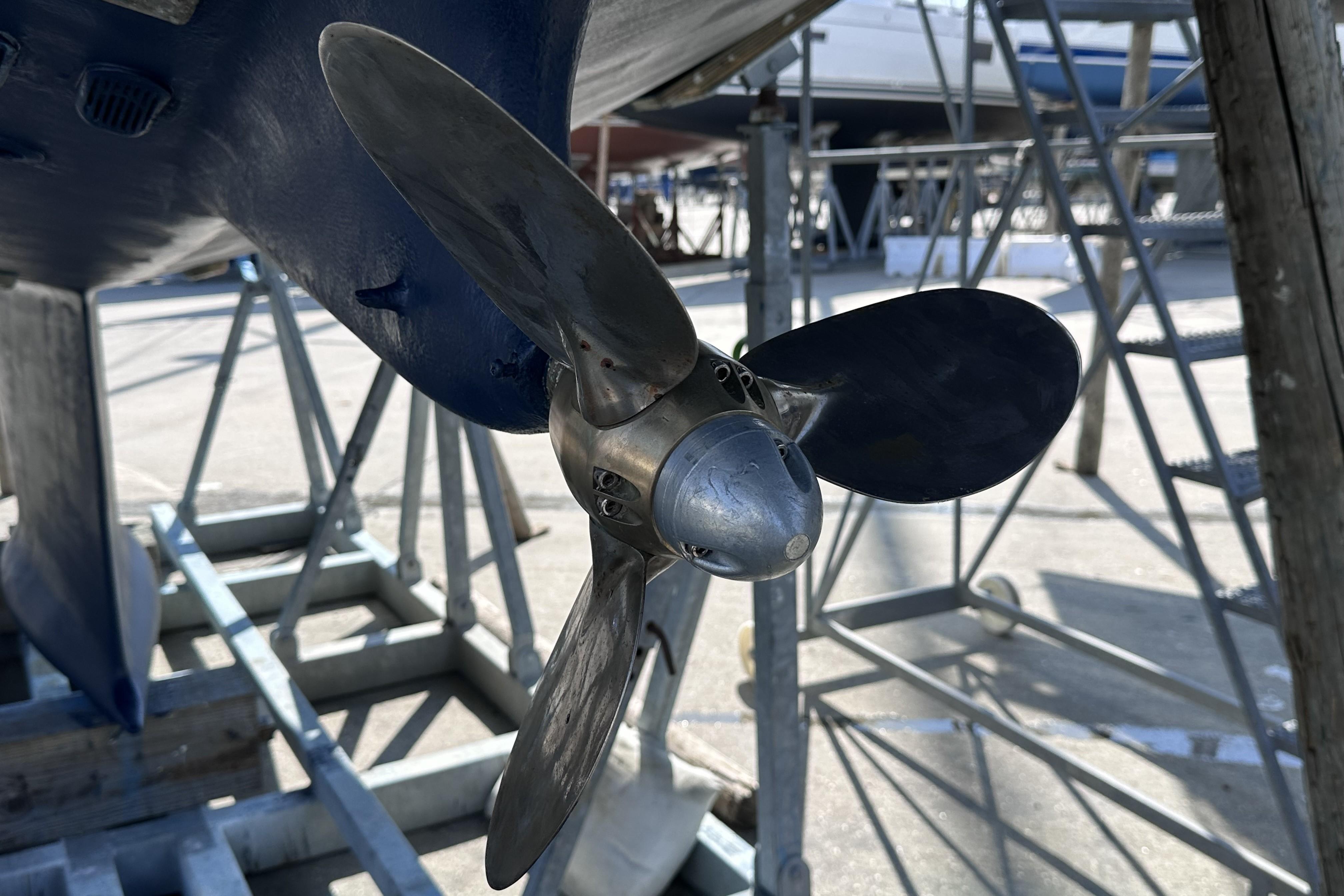

Stainless steel shaft with 3 bladed Darglow shaft drive Featherstream propeller, New 2023 with new s/s shaft 2023
80A alternator

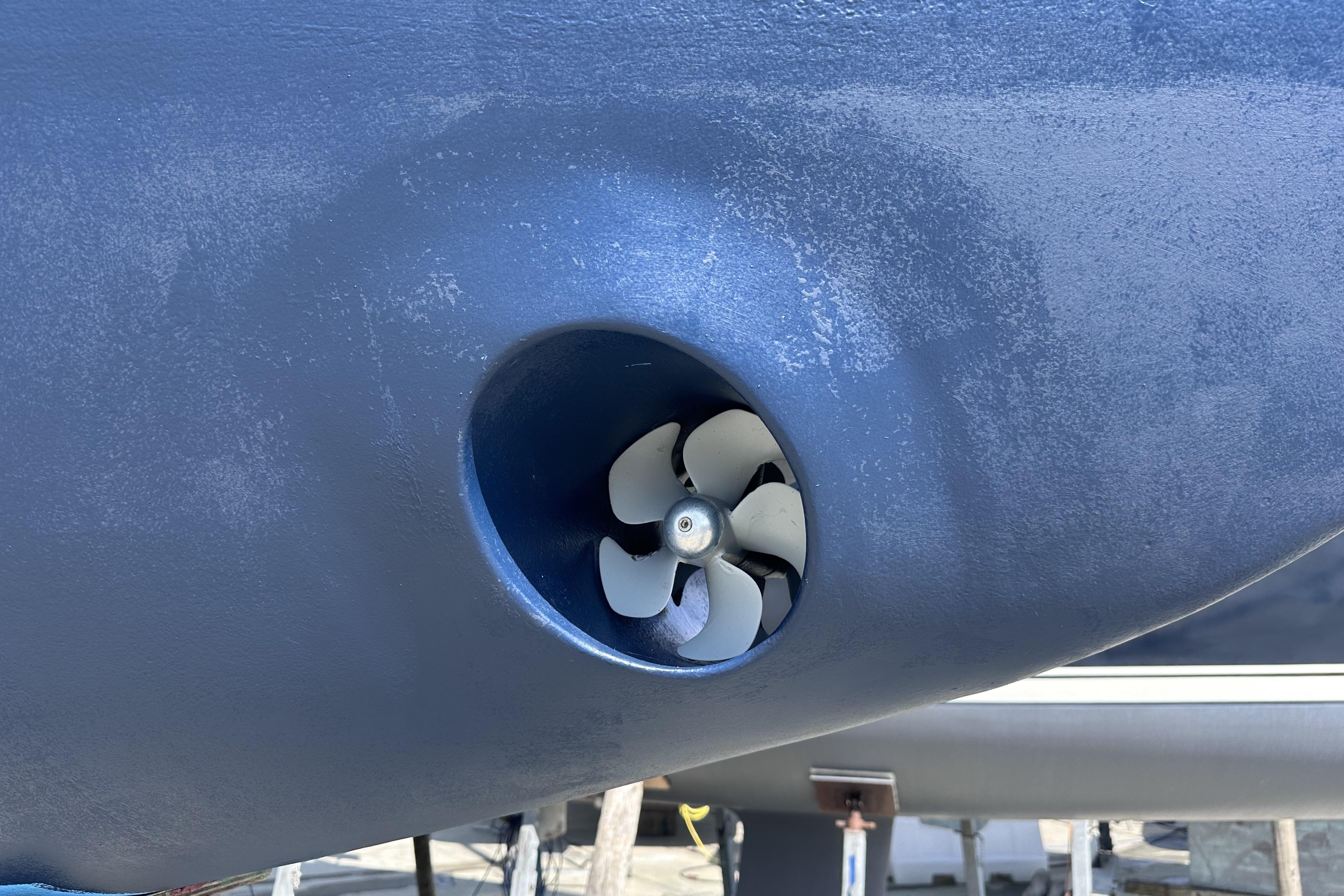

SidePower SE80/185 bow thruster in tunnel New 2022
Electric bilge pump
Two Manual bilge pump
Pressurised freshwater system to galley, heads & transom shower
Numerous sea-cocks re-newed with DZR Brass, including the large cokpit drains in engine room 2022

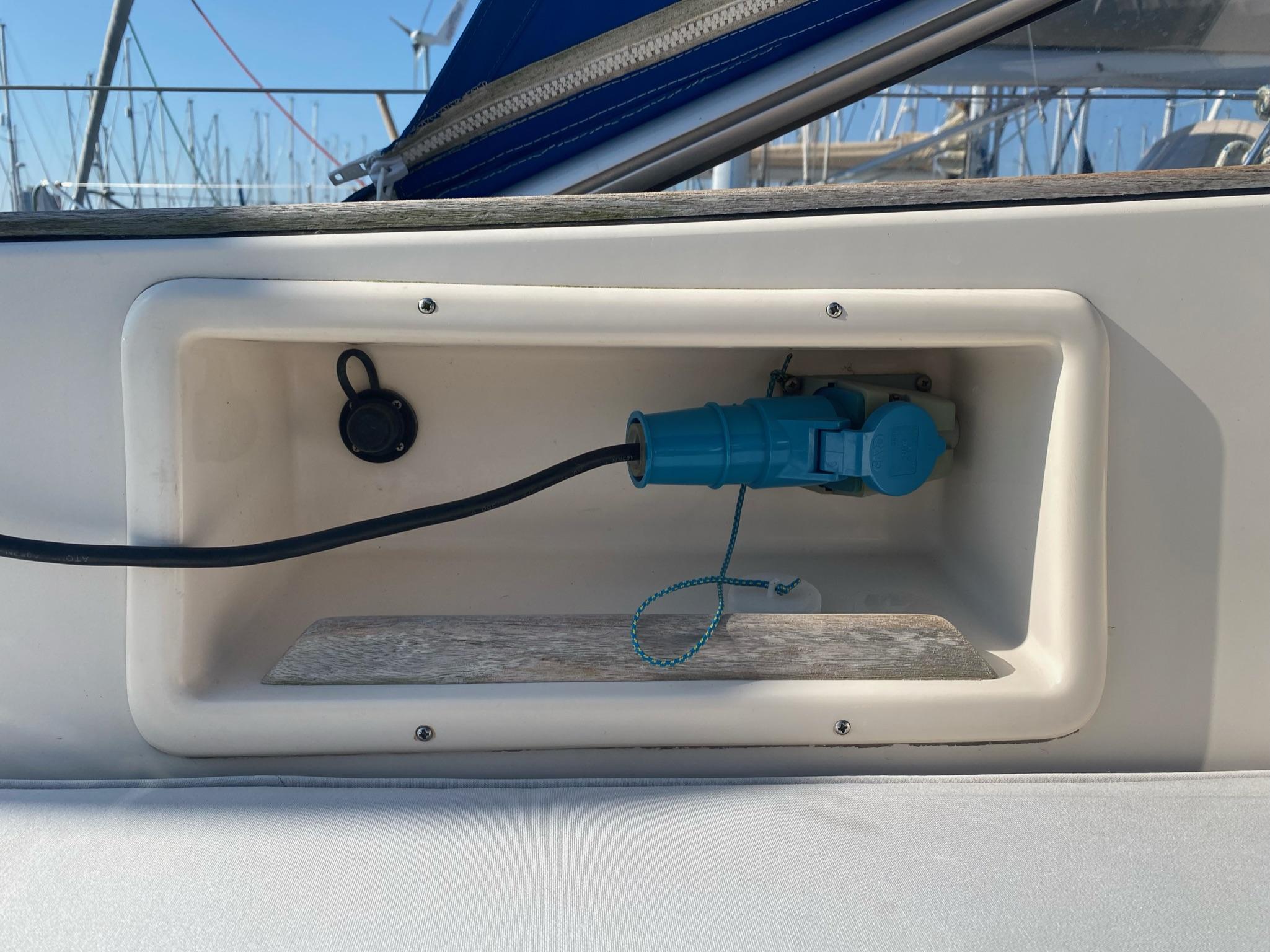

230v shore power system with ring main, immersion heater & 25A battery charger
2 fuel tanks, total capacity 395 litres
3 fresh water tanks, total capacity approx 570 litres

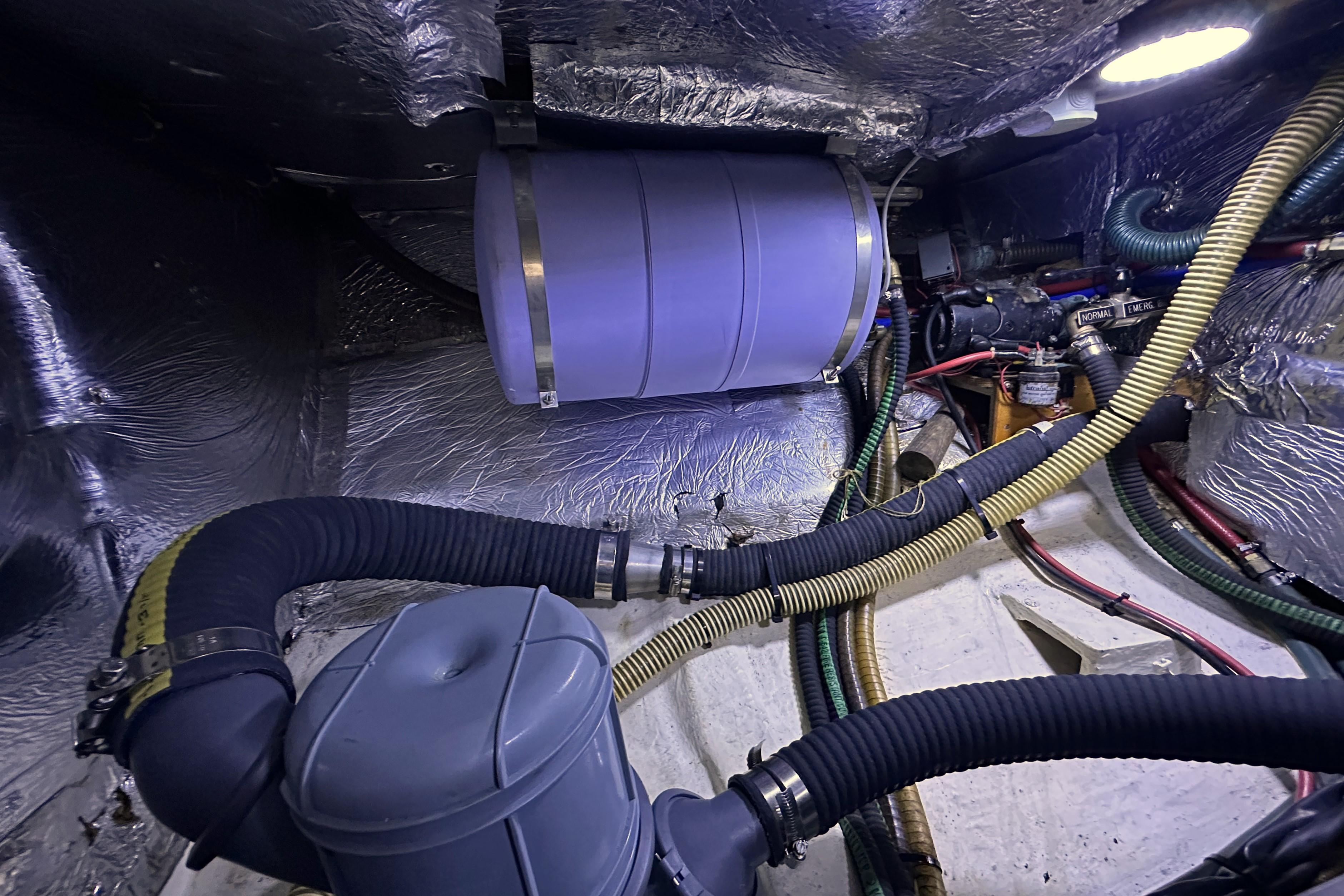

40 litre hot water calorifier , new pipe work and tank 2022.
ELECTRICS:
Electric switch panel at chart table with voltmeter, diesel & fuel gauges
12v sockets in aft cabin, saloon, forward cabin & cockpit
Victron Energy Multiplus 3000 Inverter/charger with Digital Multi control, New 2023
3 x 140Ah Varta service batteries - June 2023
2 x 74Ah Varta engine start battery - June 2023
Navigation Equipment

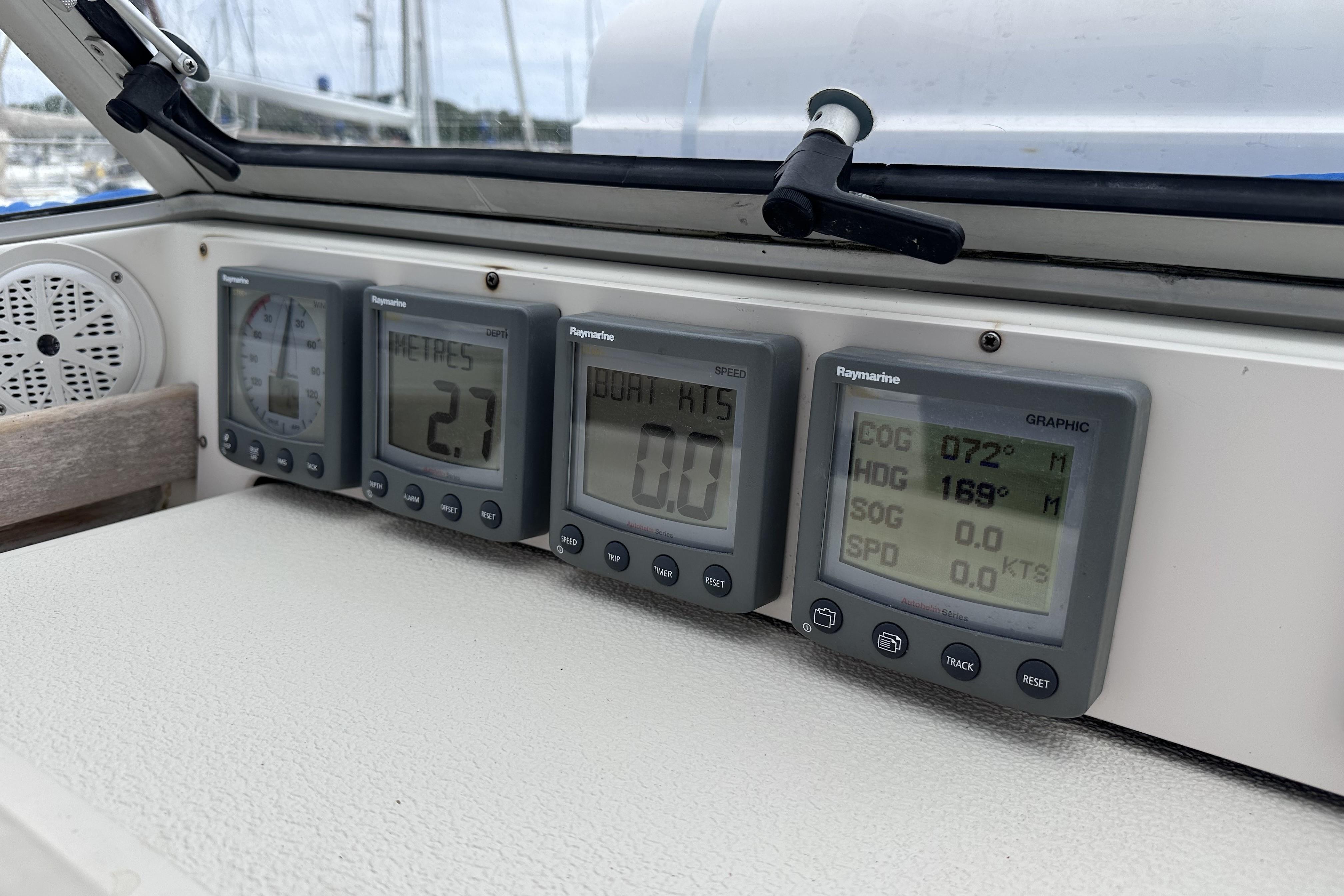

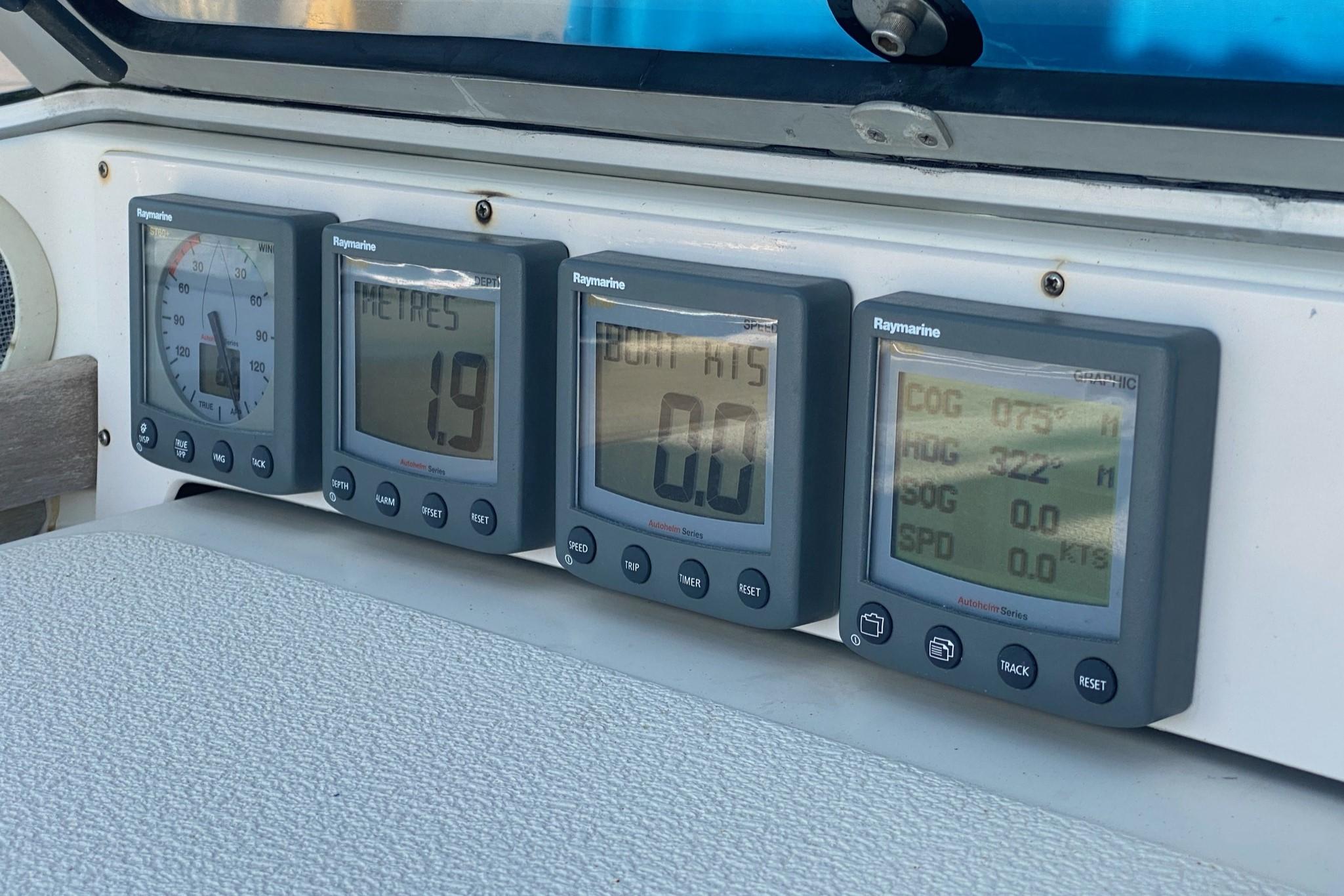

Raymarine ST60+ Wind, Depth, Log and Graphics
Raymarine Radar and GPS

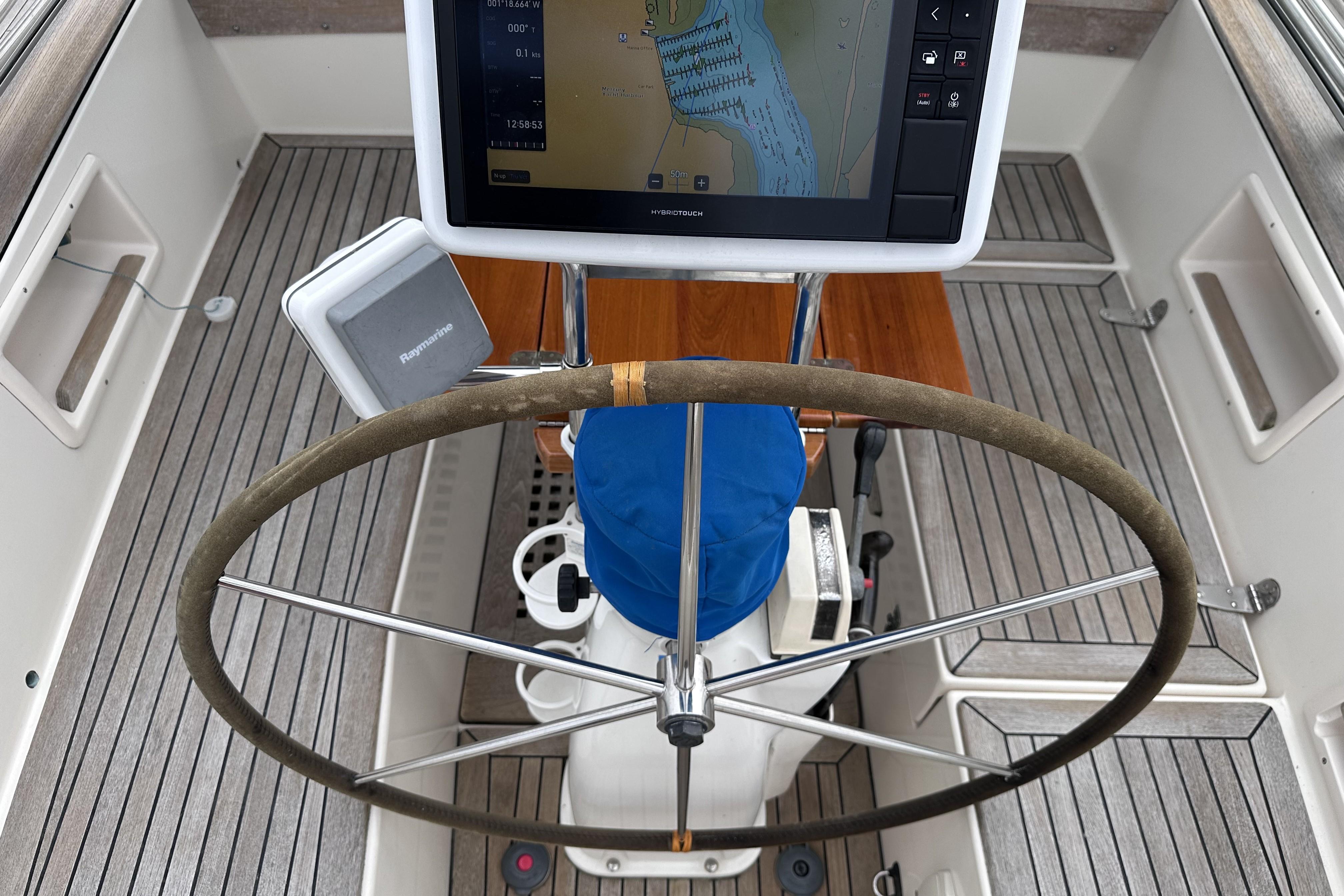

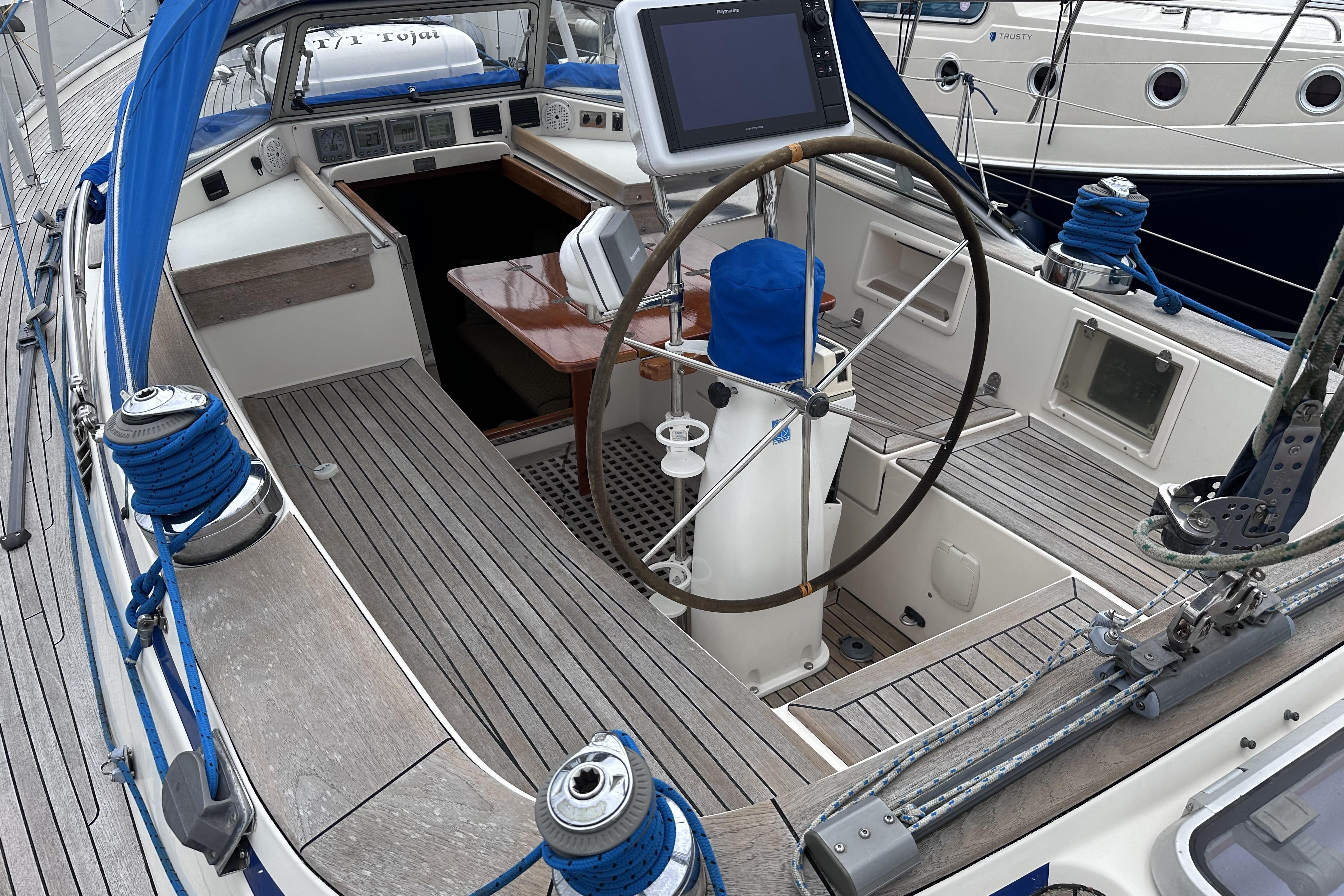

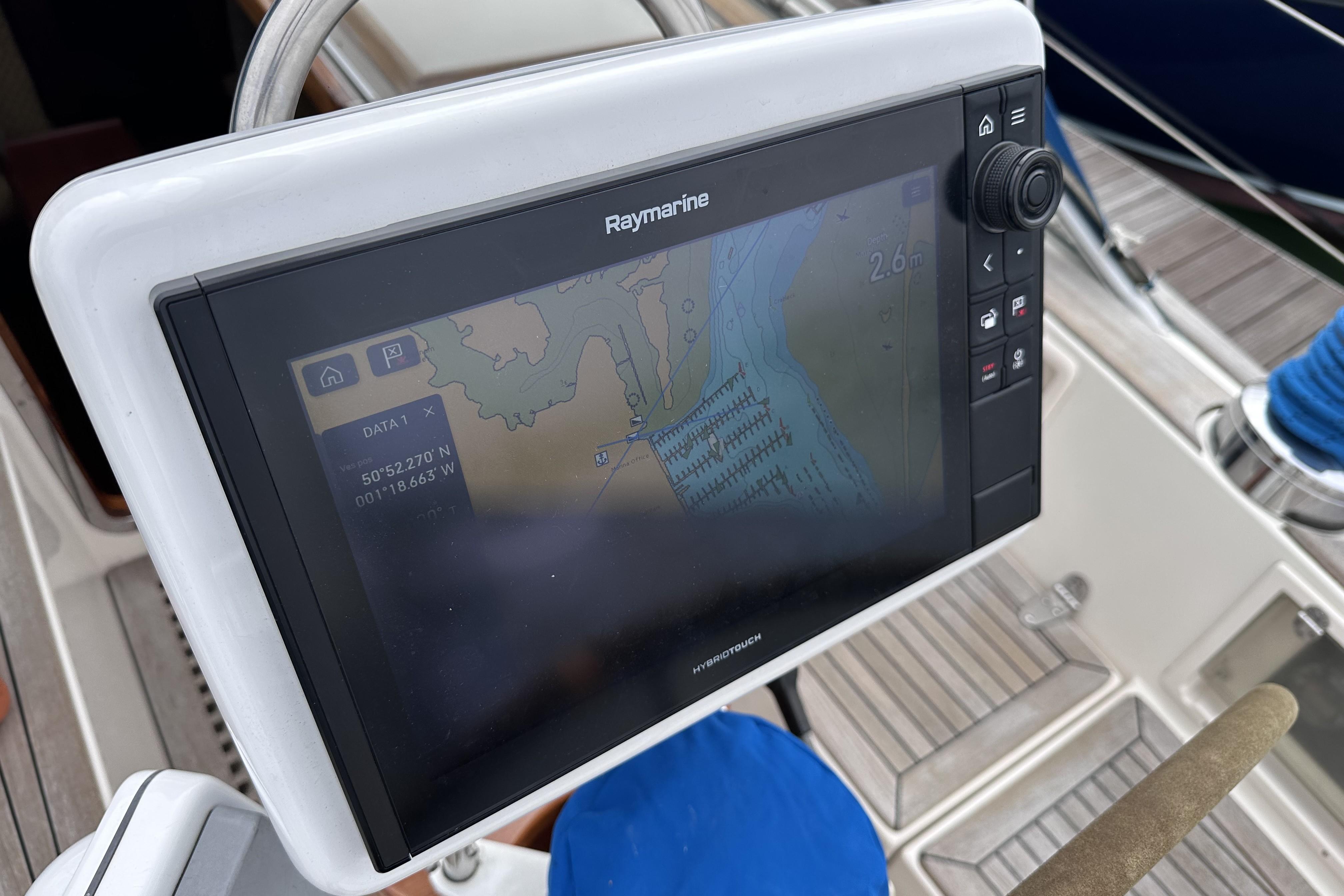

Raymarine AxiomPro 12S in pod at wheel, New 2022

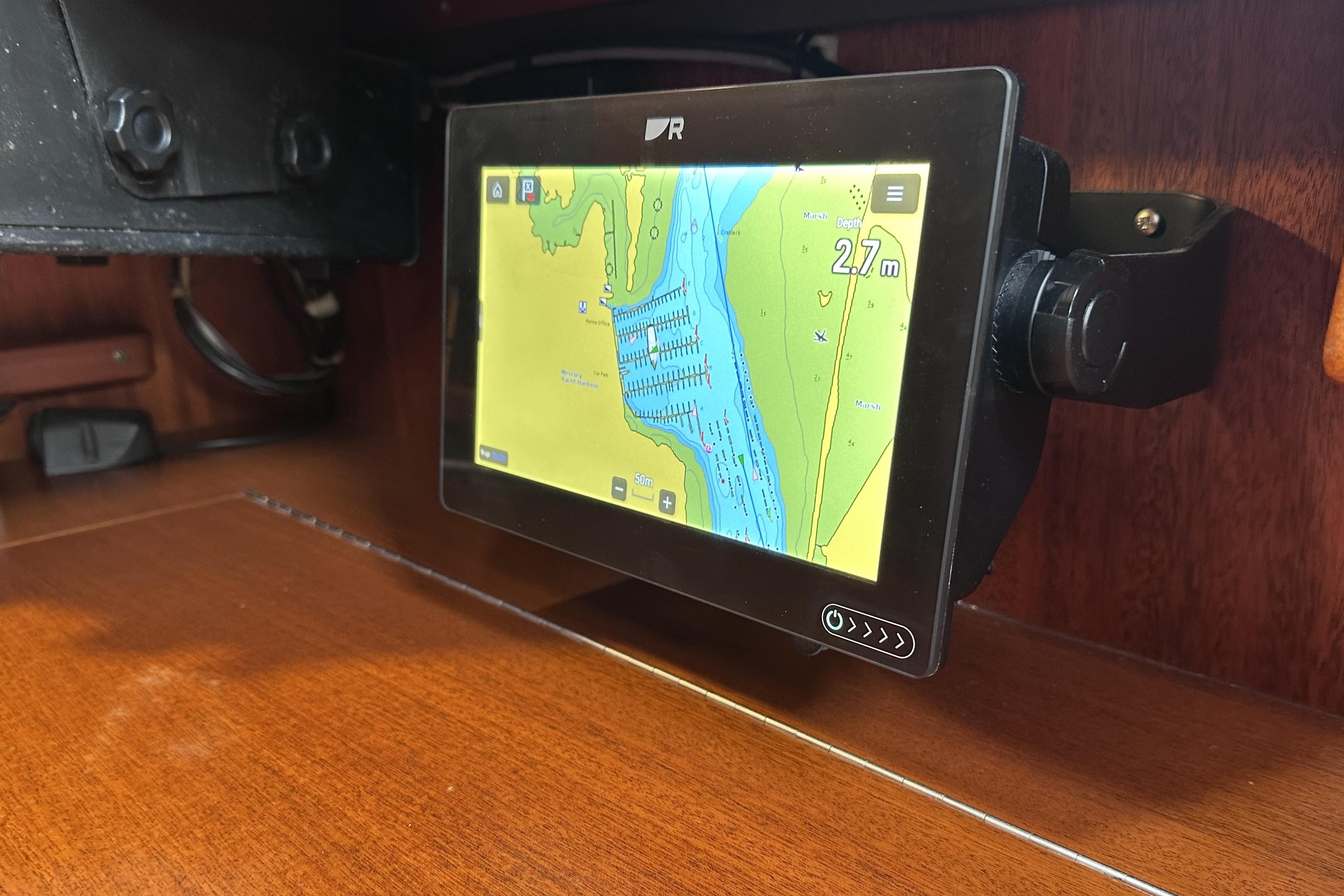

Raymarine Axiom+ 9 at chart table, New 2022
Raymarine Autohelm
Lofrans Windlass (motor replaced 2015) with cockpit additional control
Sony Stereo CD/Radio

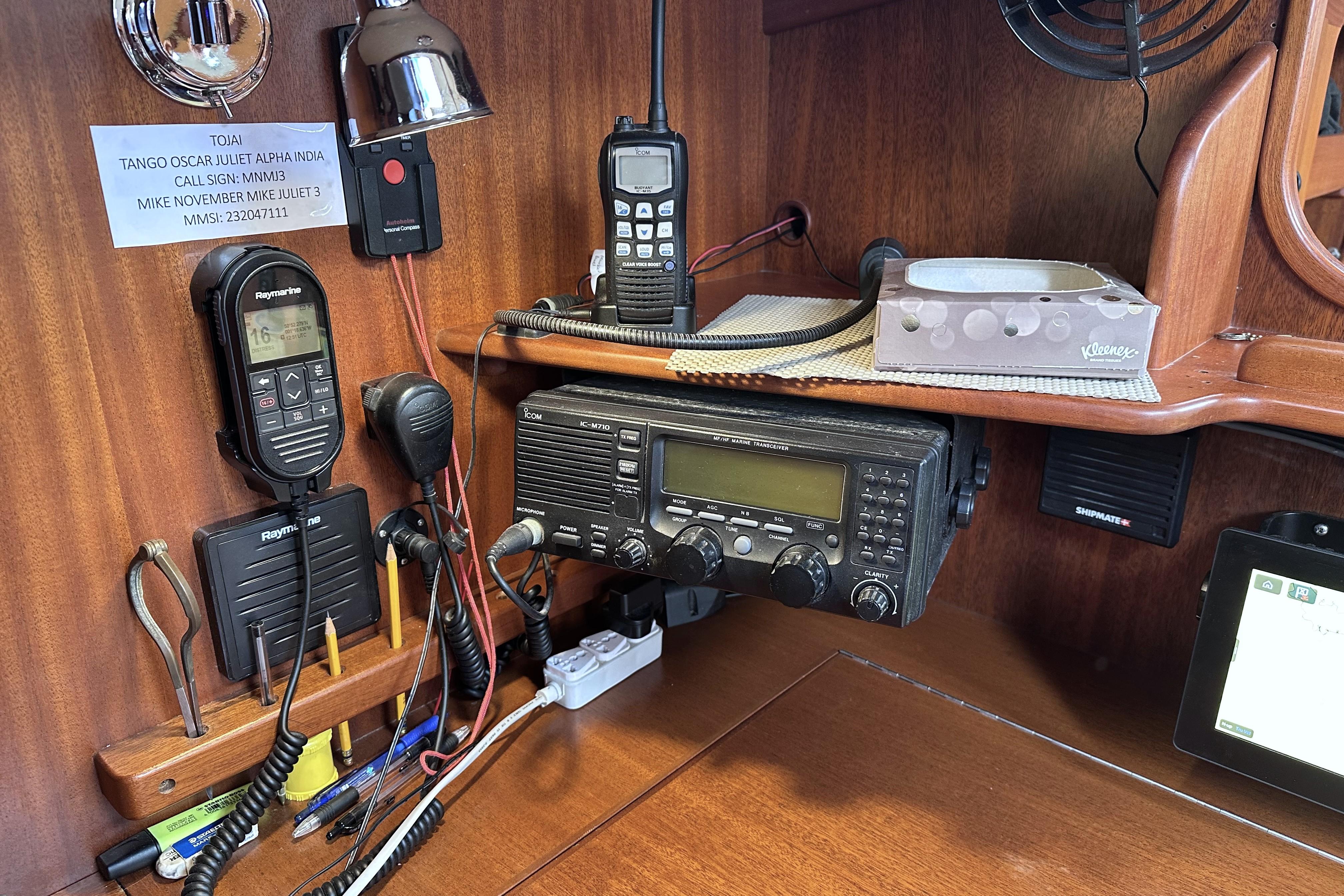

Raymarine Ray91 VHF with built in AIS, New 2022
ICOM HF Automatic Antena Tuner
Autohelm Personal Compass
ICOM handheld VHF IC M35
Spars & Sails

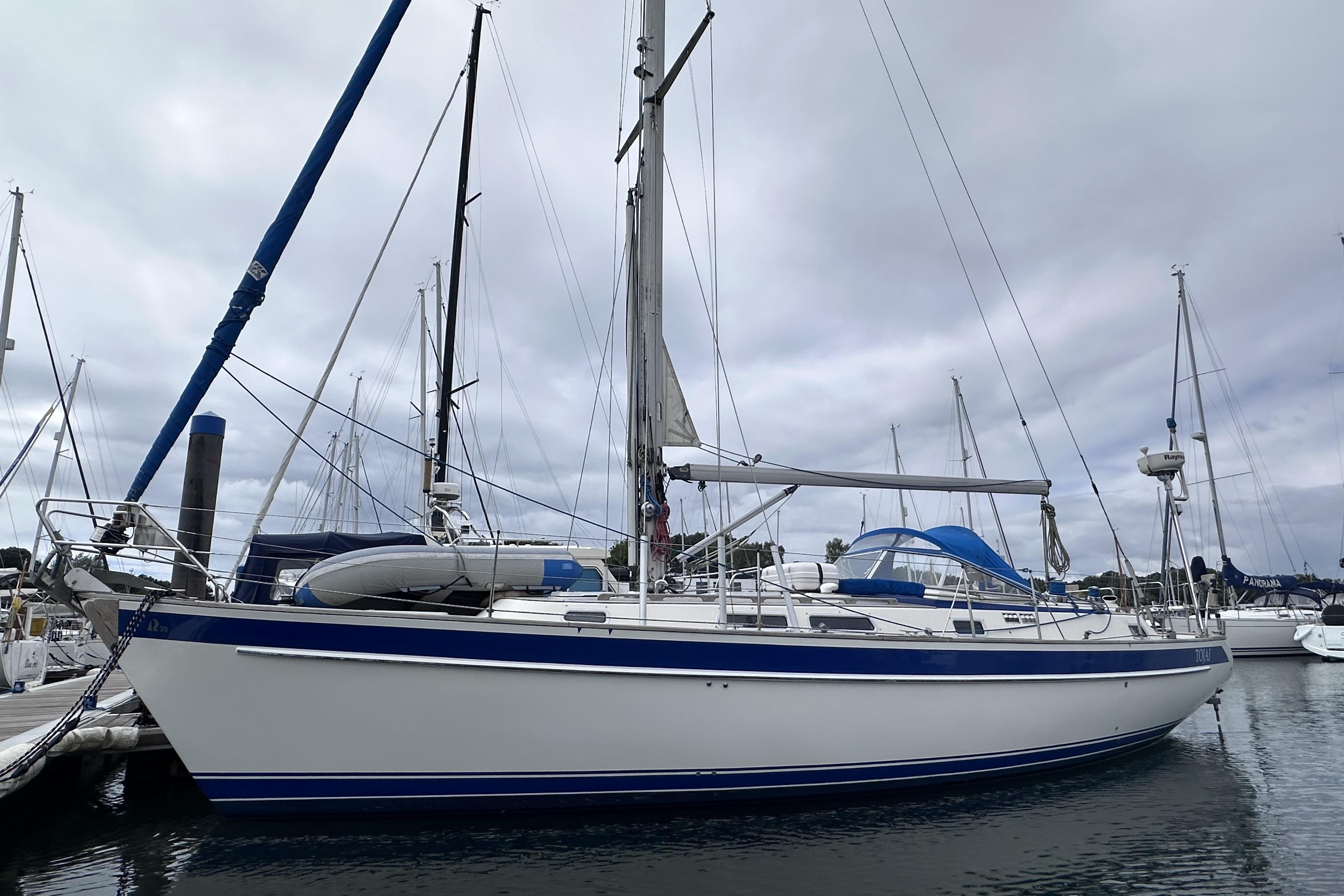

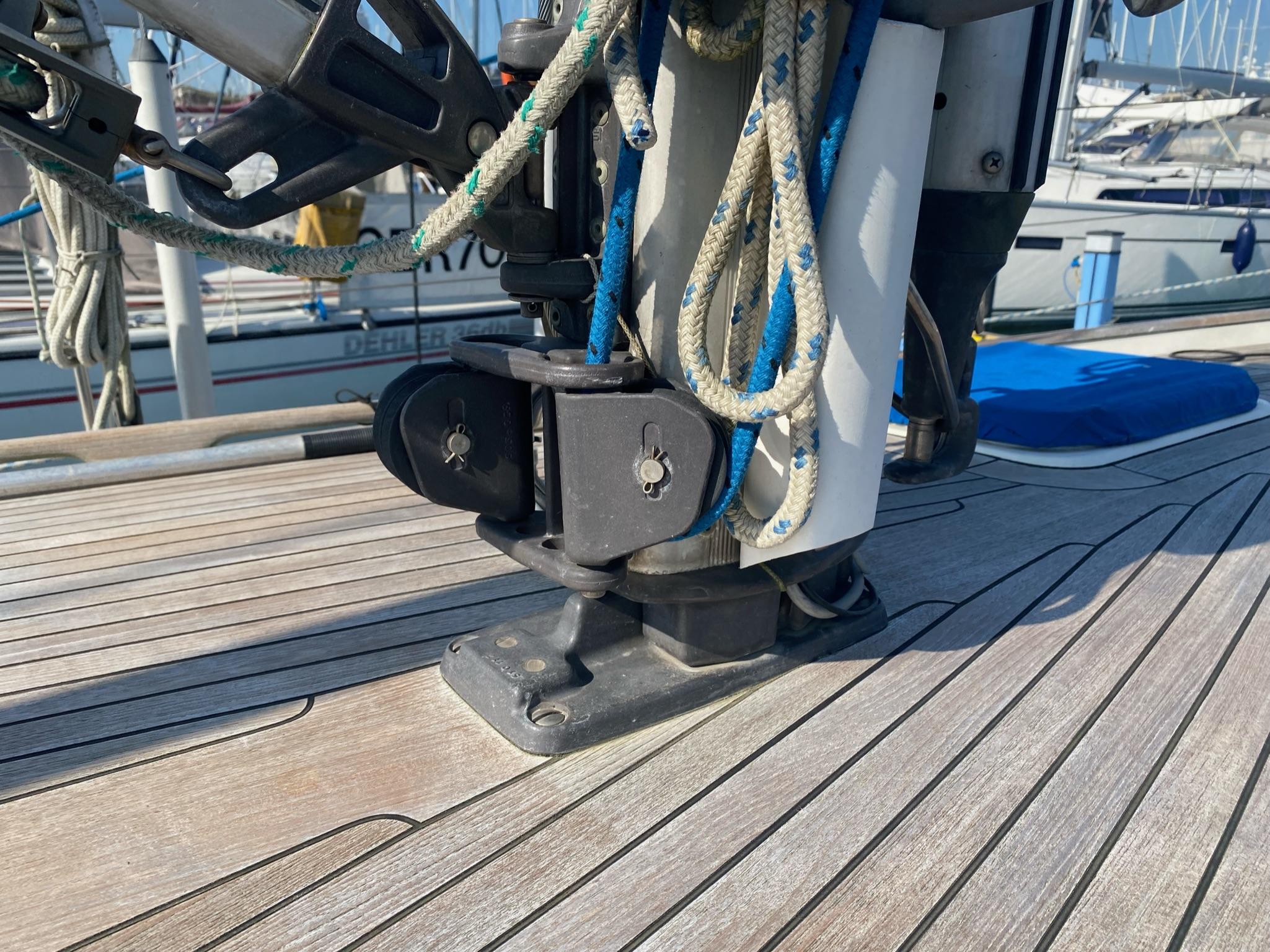

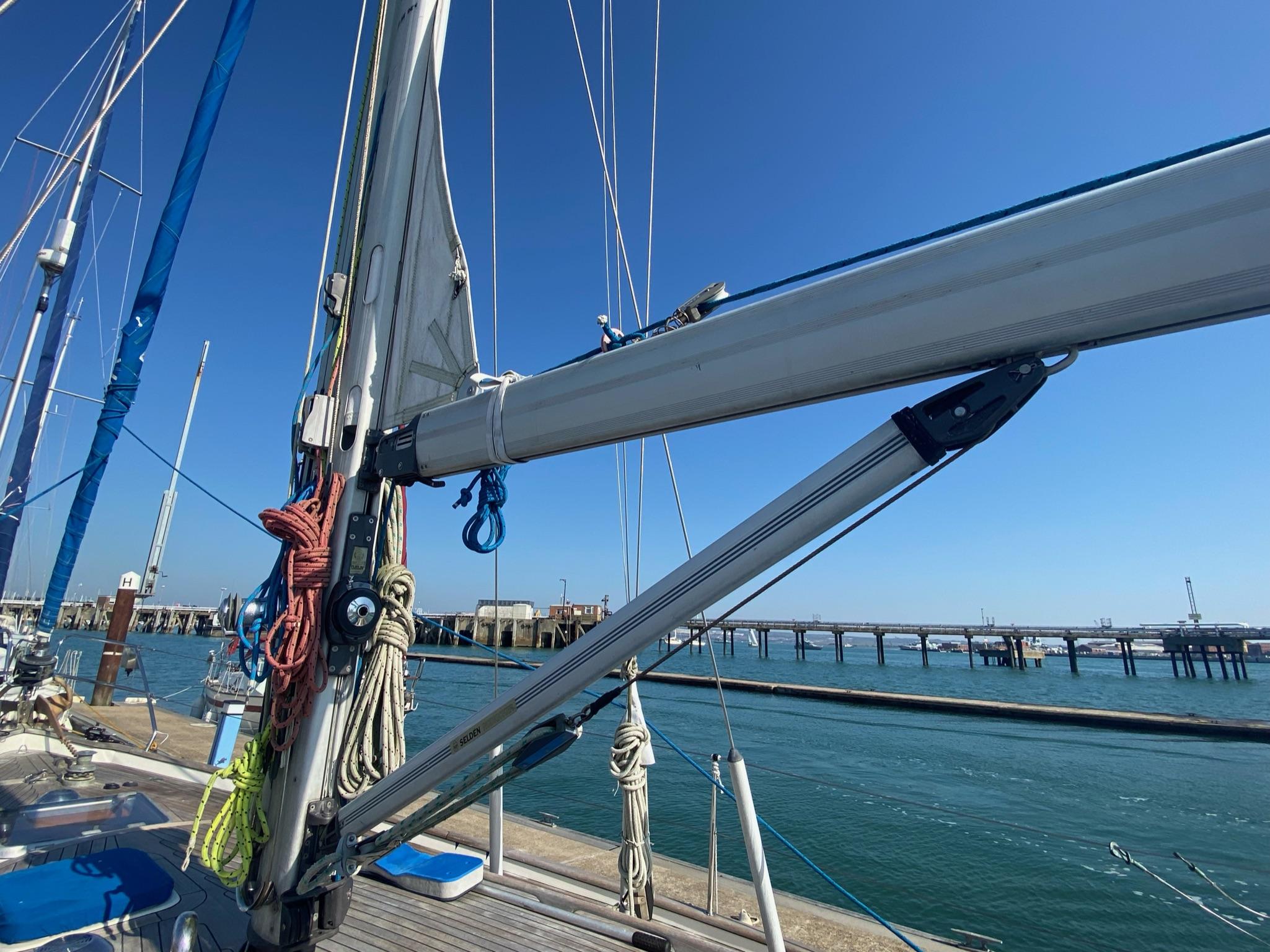

Double spreader furling sloop rig by Seldén Mast AB
Seldén backstay tensioner
Seldén vang
All standing rigging replaced in 2015

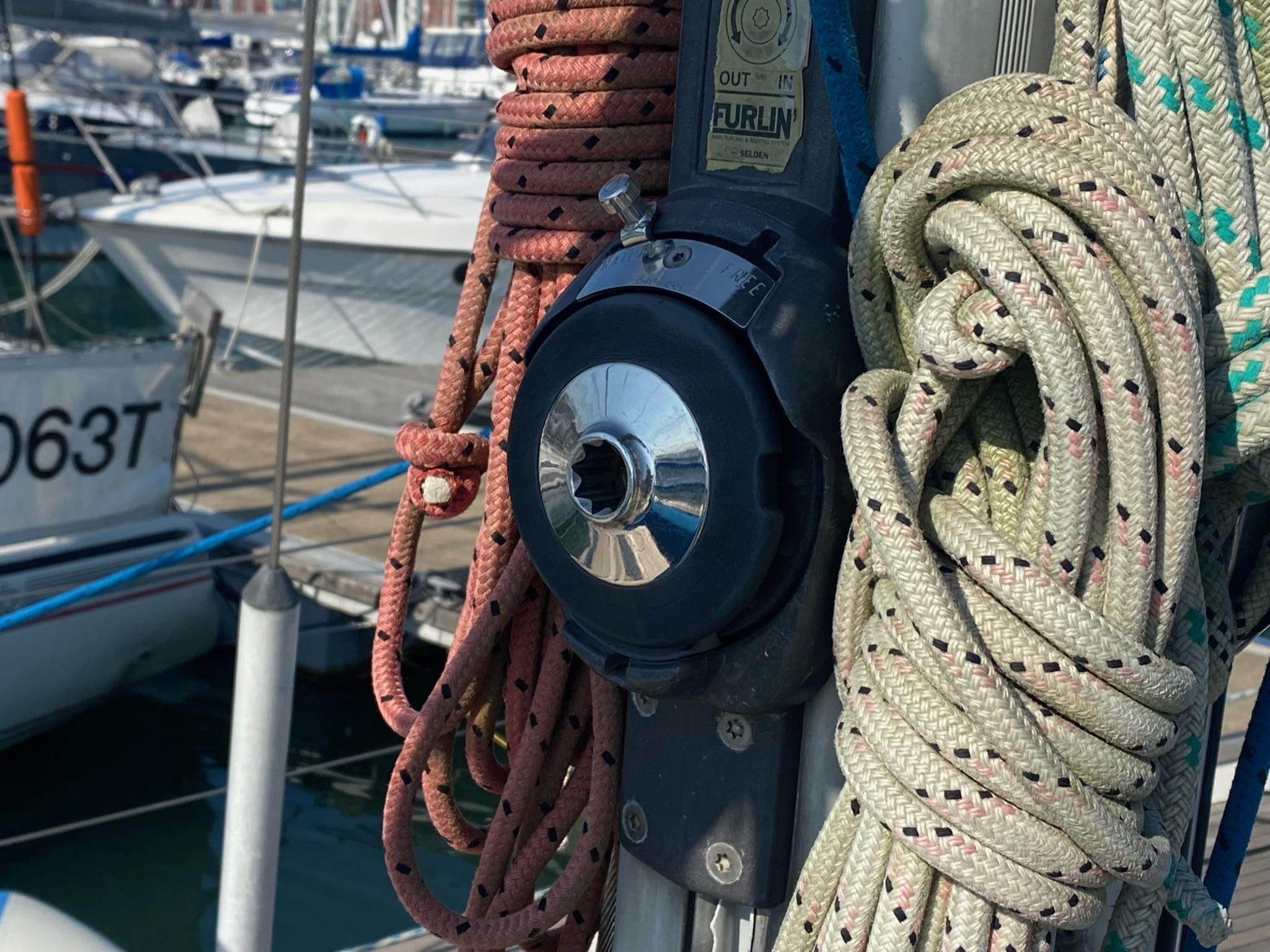

Seldén Furlex 300S headsail reefing & furling system
Cutterstay with running backstays (stowed ashore), halyard & sheets
Spinnaker pole stowed on mast with topping lift
Spinnaker halyard winch

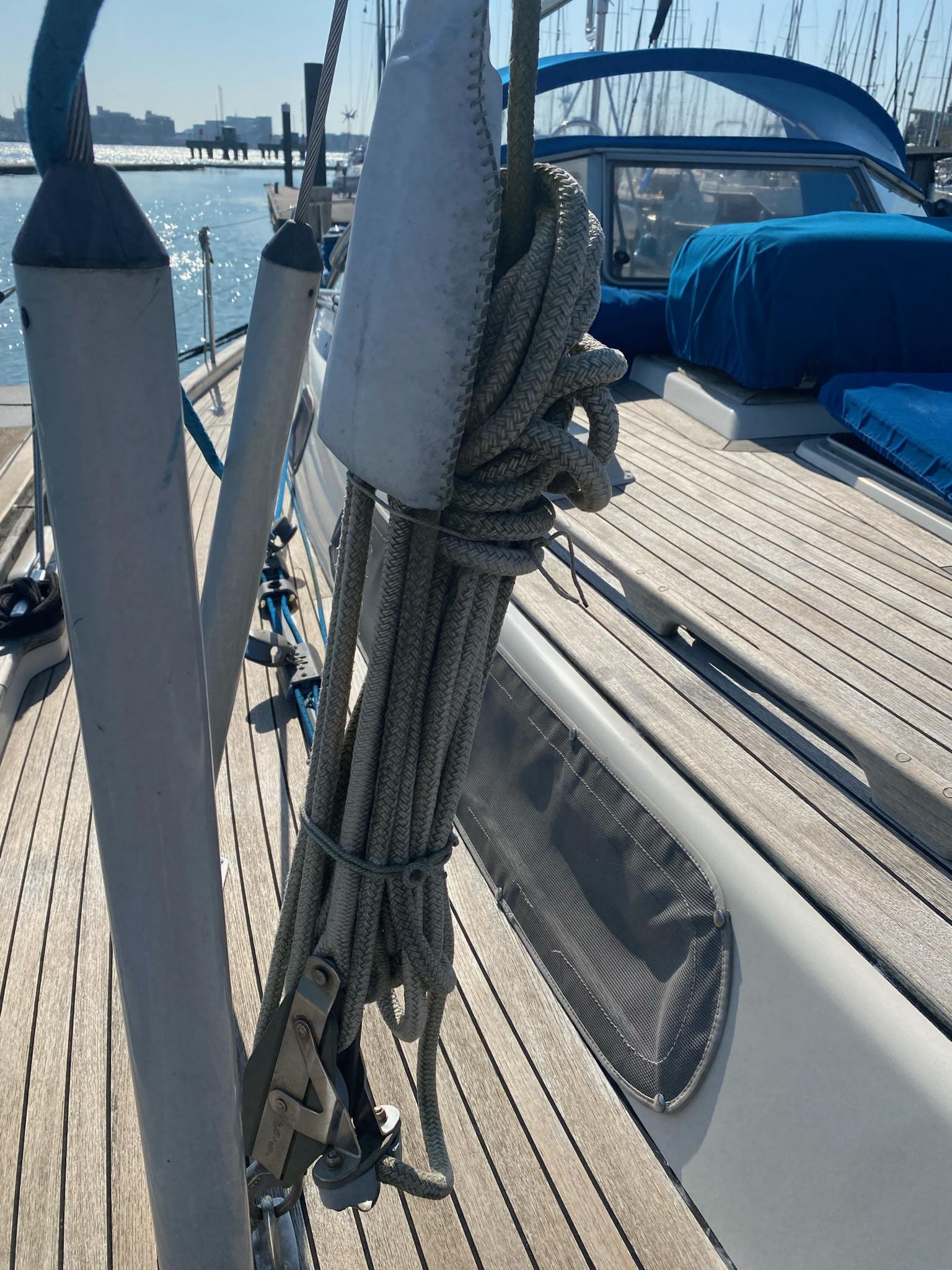

Hasselfors bottlescrews with aluminium protection tubes
Insulated backstay with cable to nav station
Windex
SAILS:
Rolly Tasker in Mast furling Dacron mainsail (2017)
Furling Genoa
1 x lighter weight furling Genoa
Tri Sail
Storm jib
150 % Mylar Genoa
Heavy weather jib
Cruising chute
Spinnaker

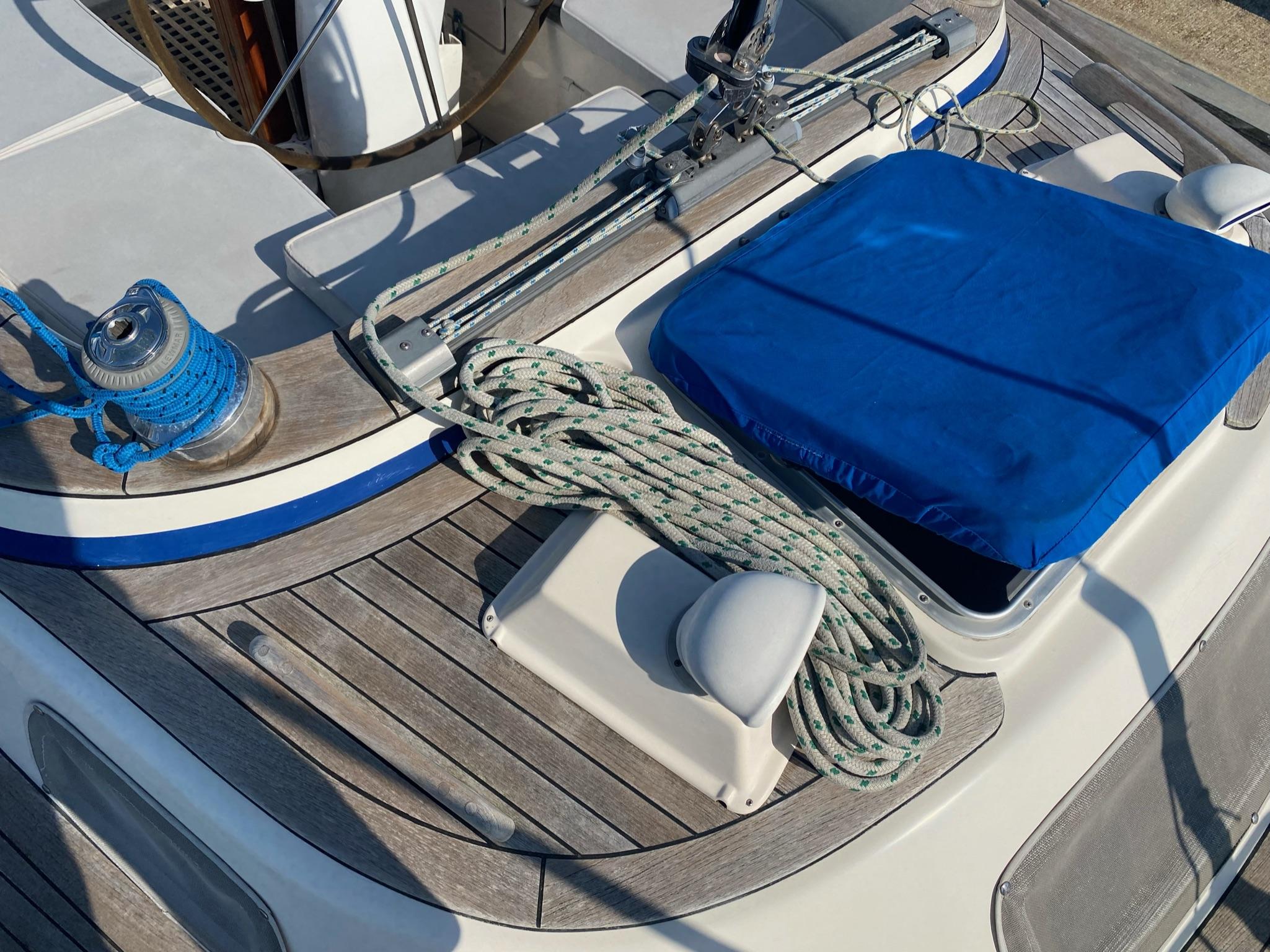

Deck Equipment

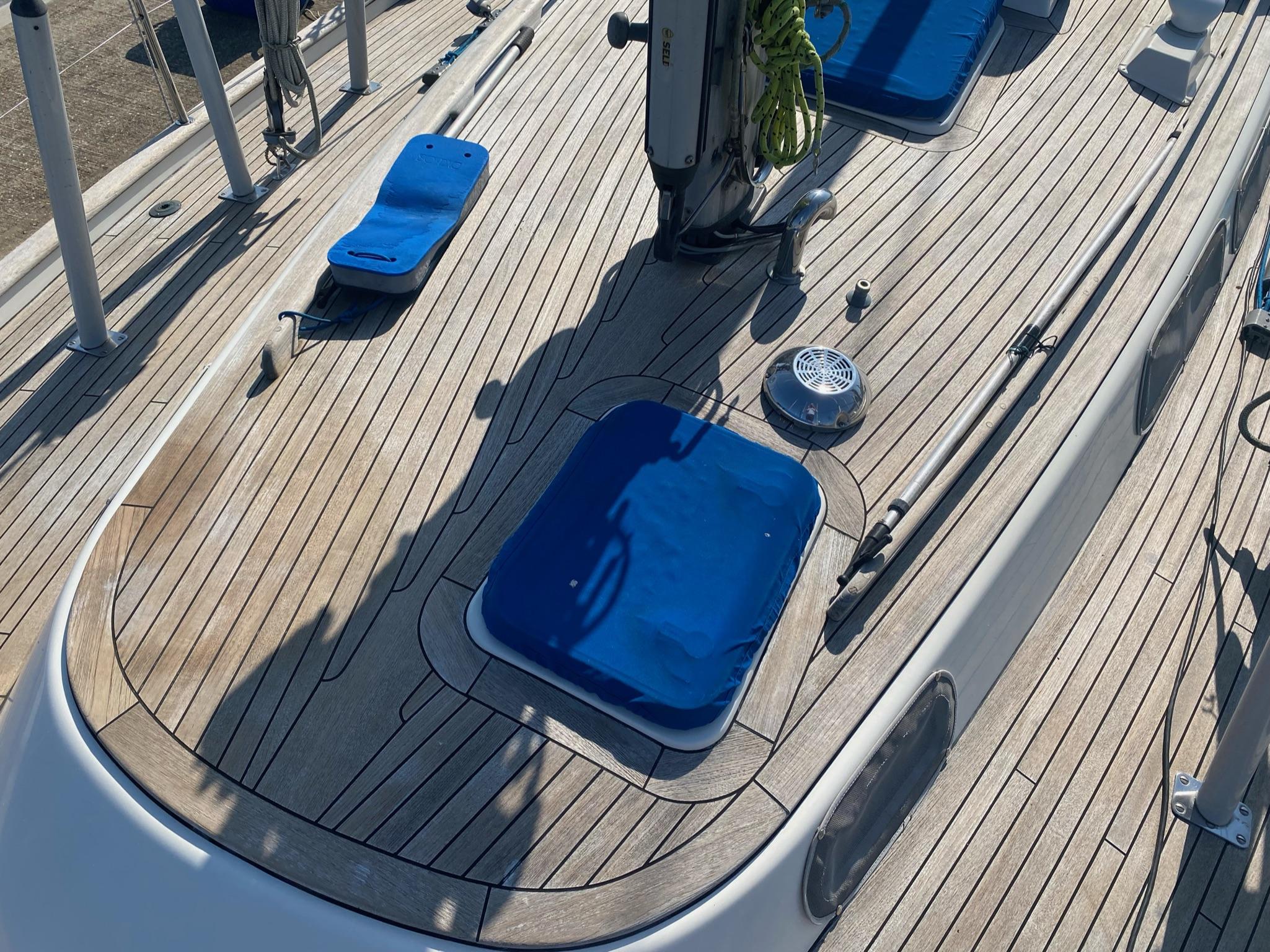

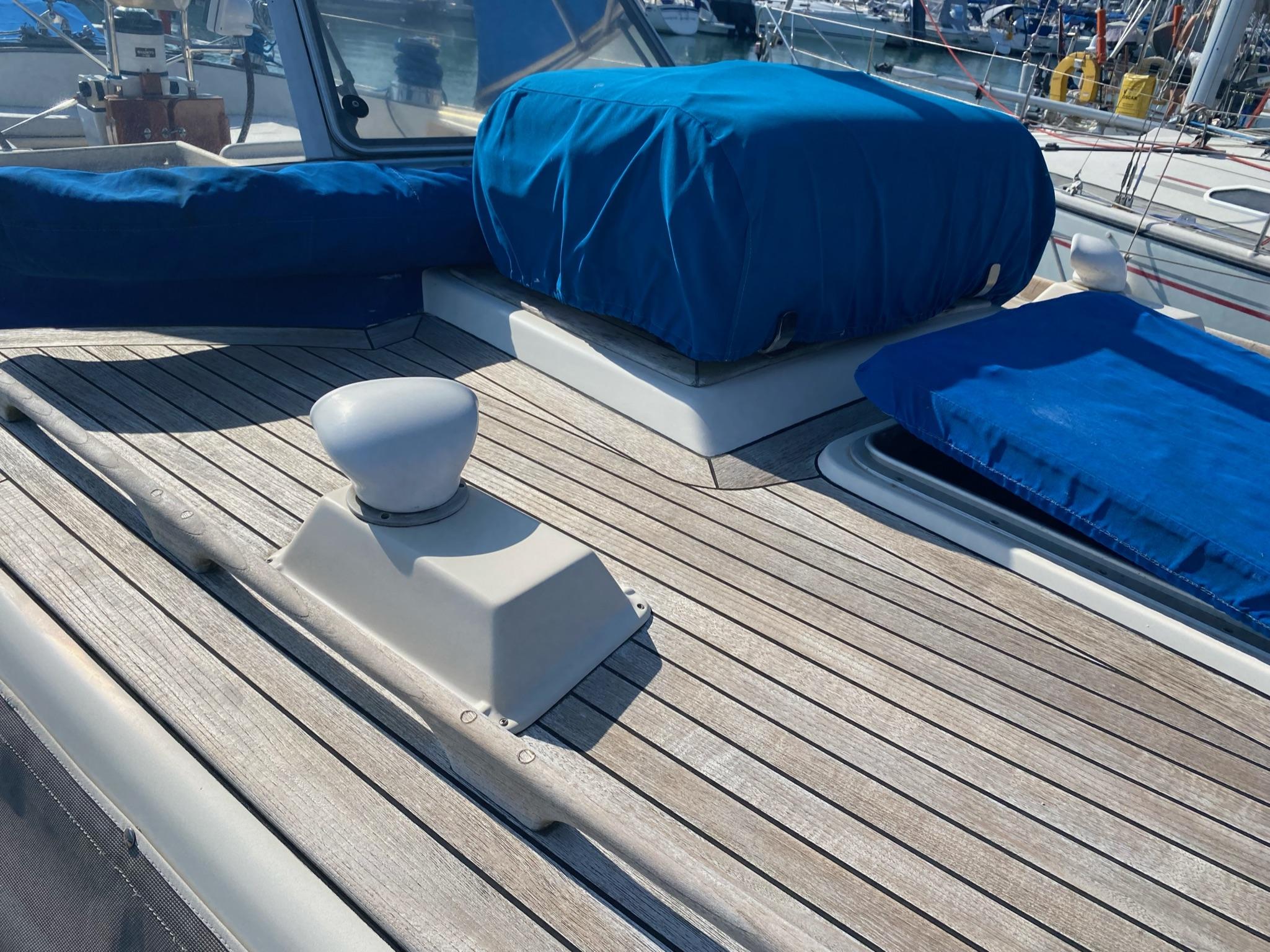

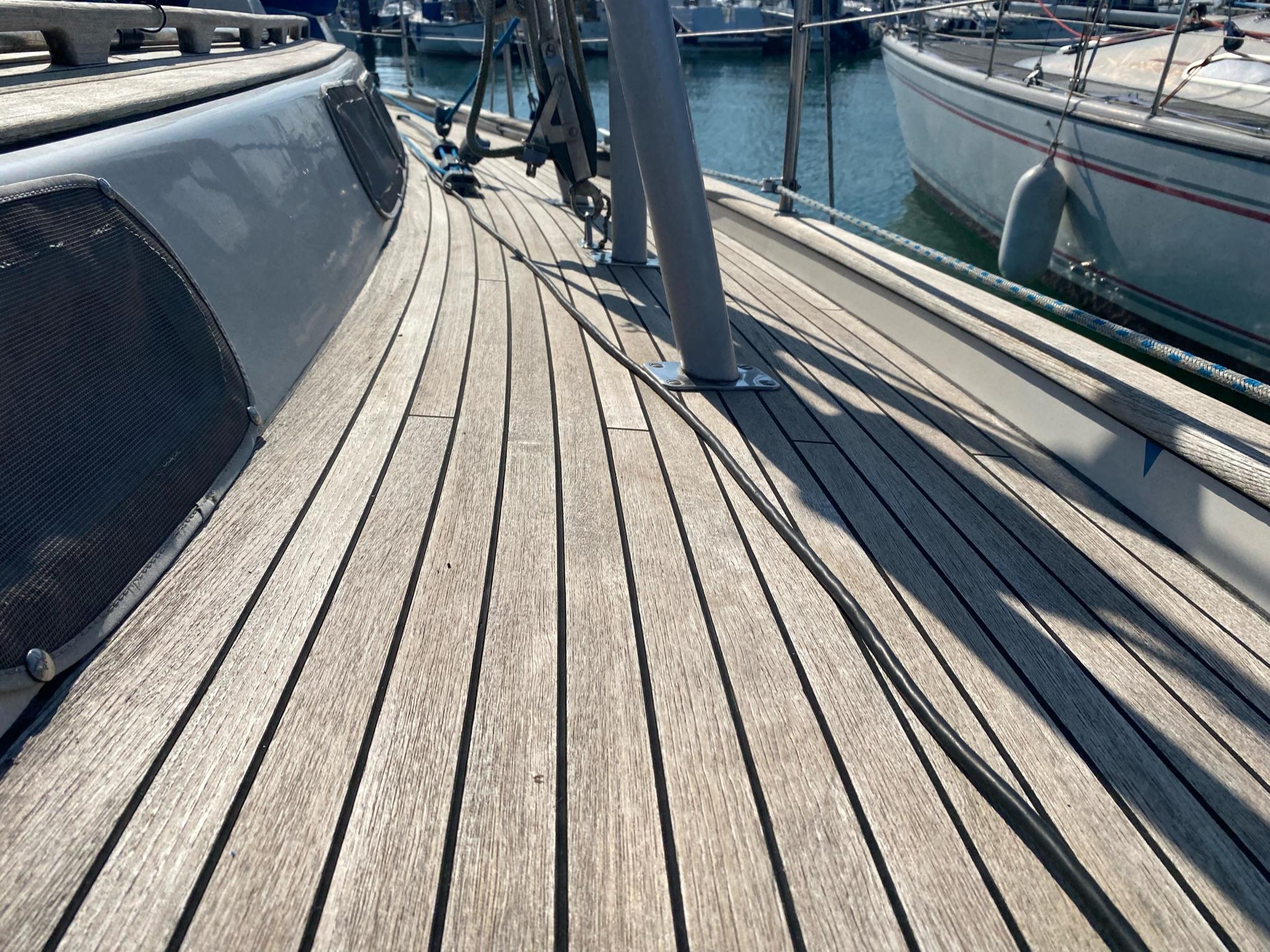

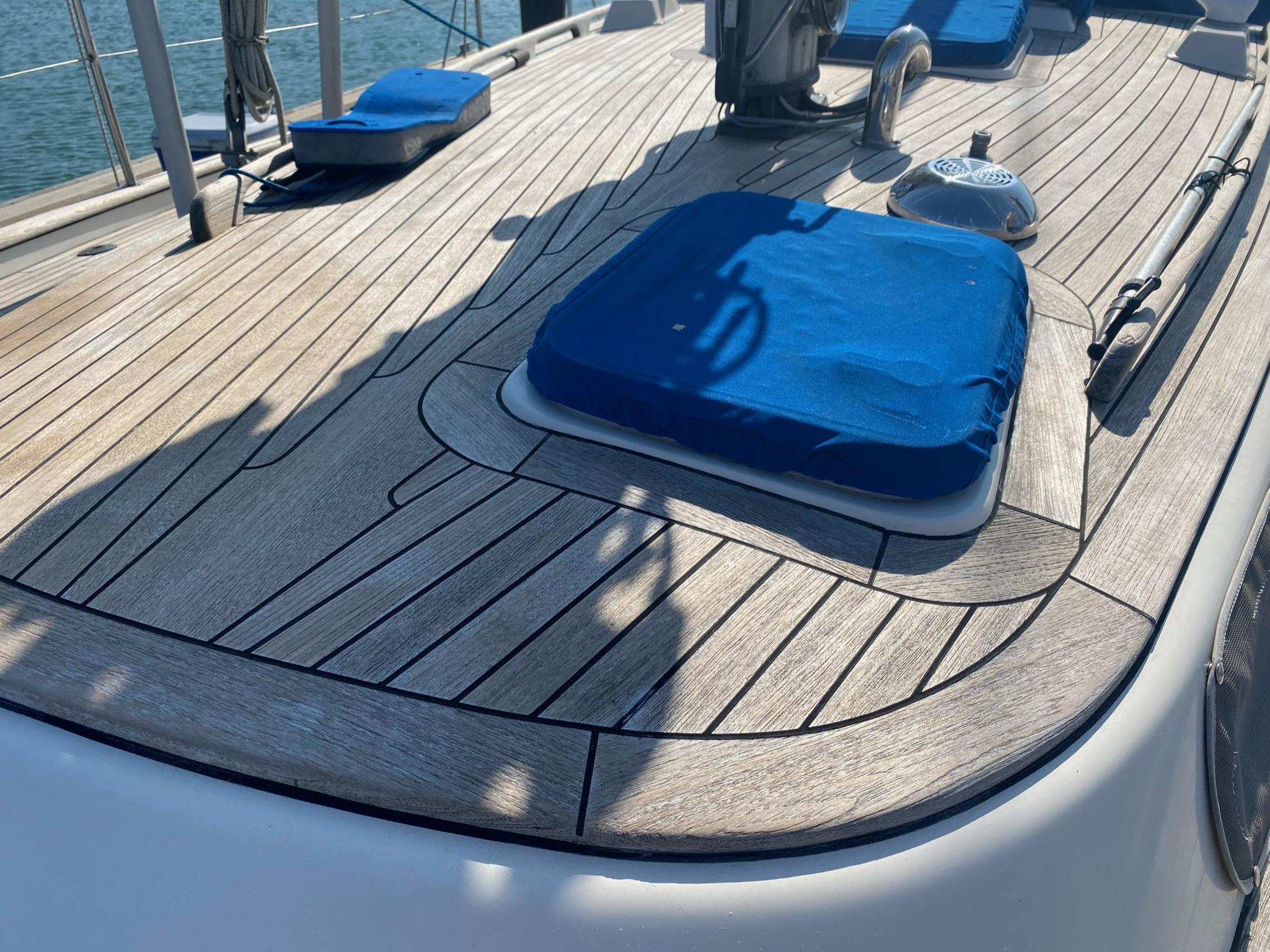

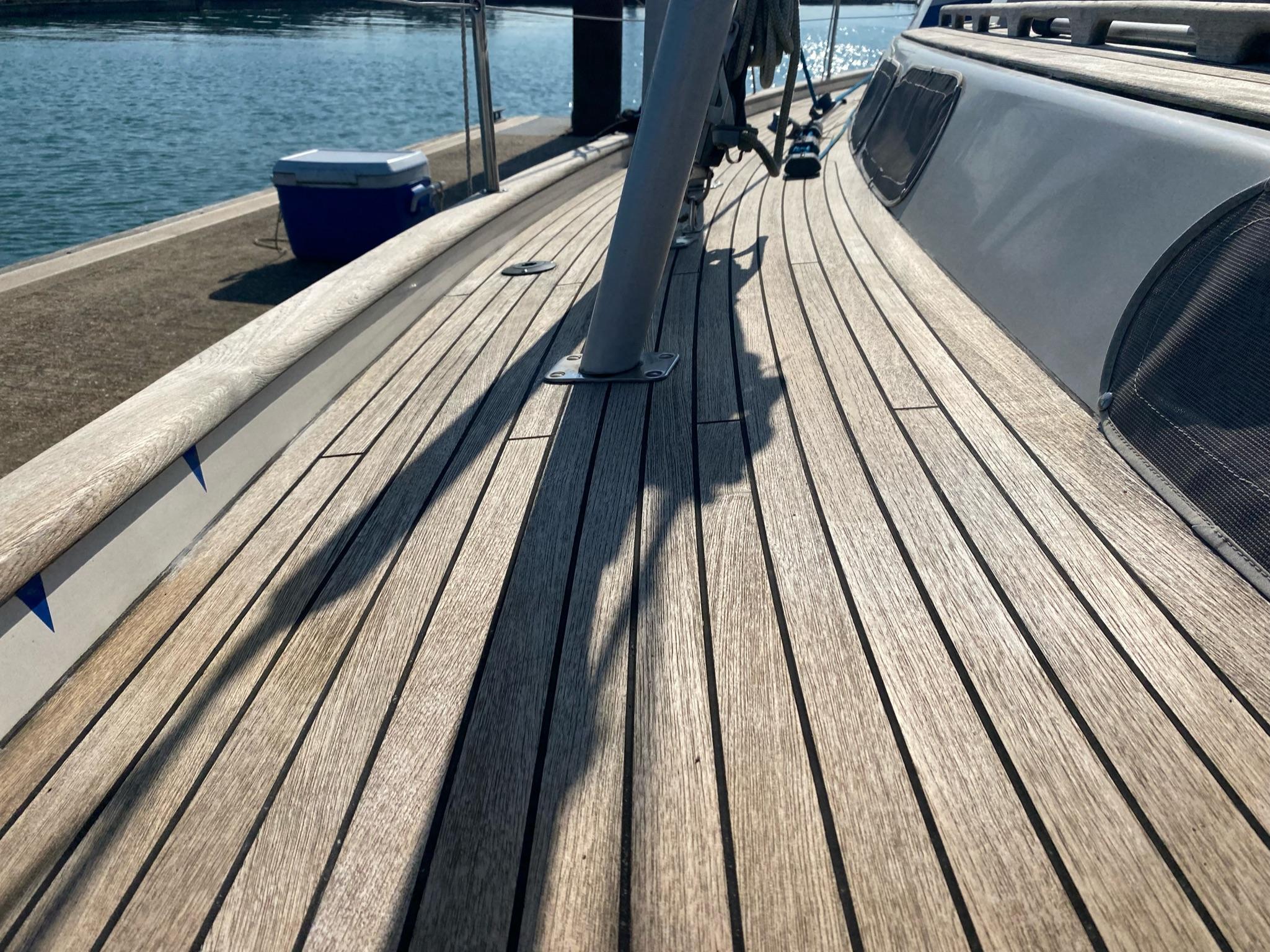

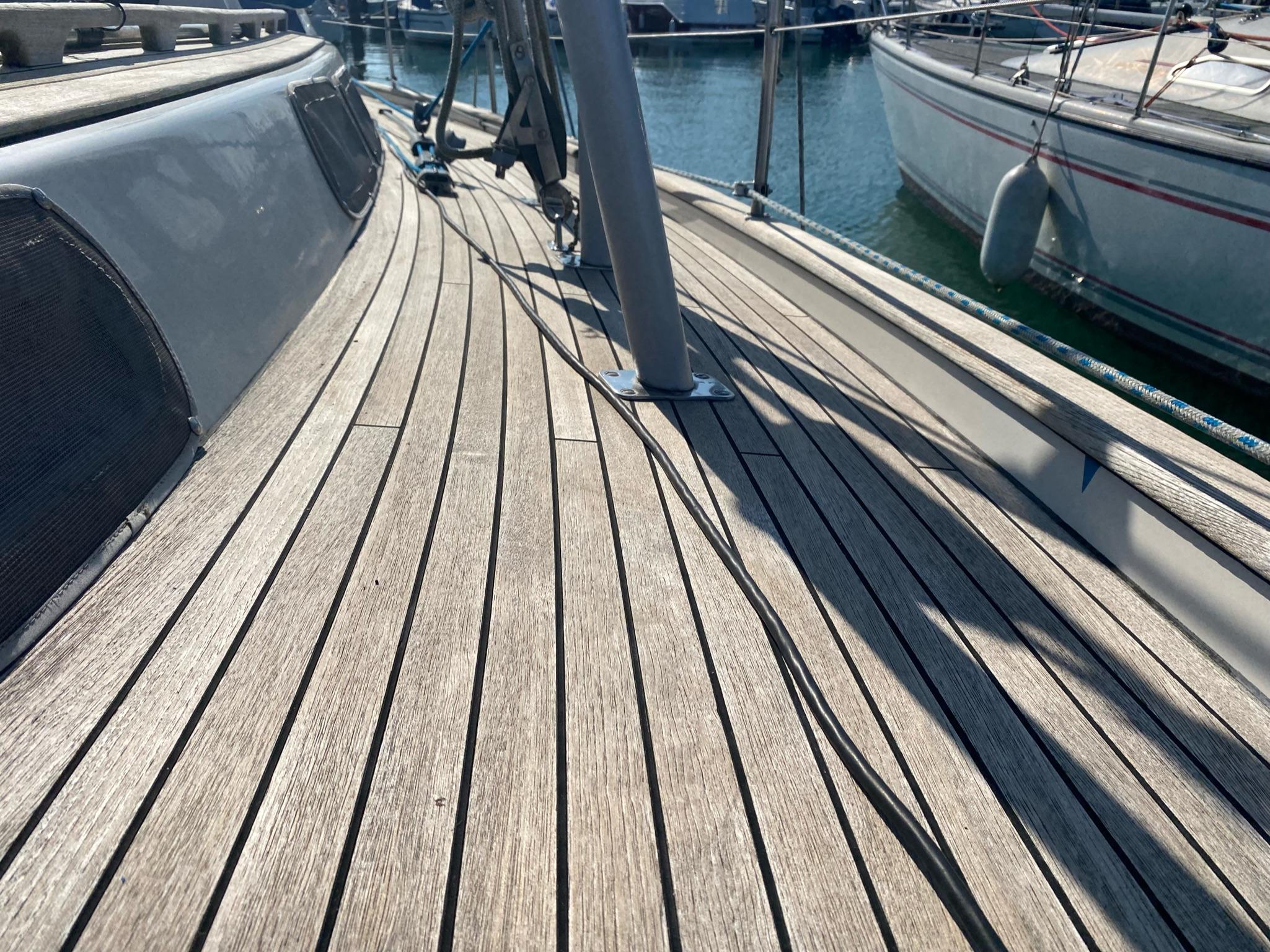

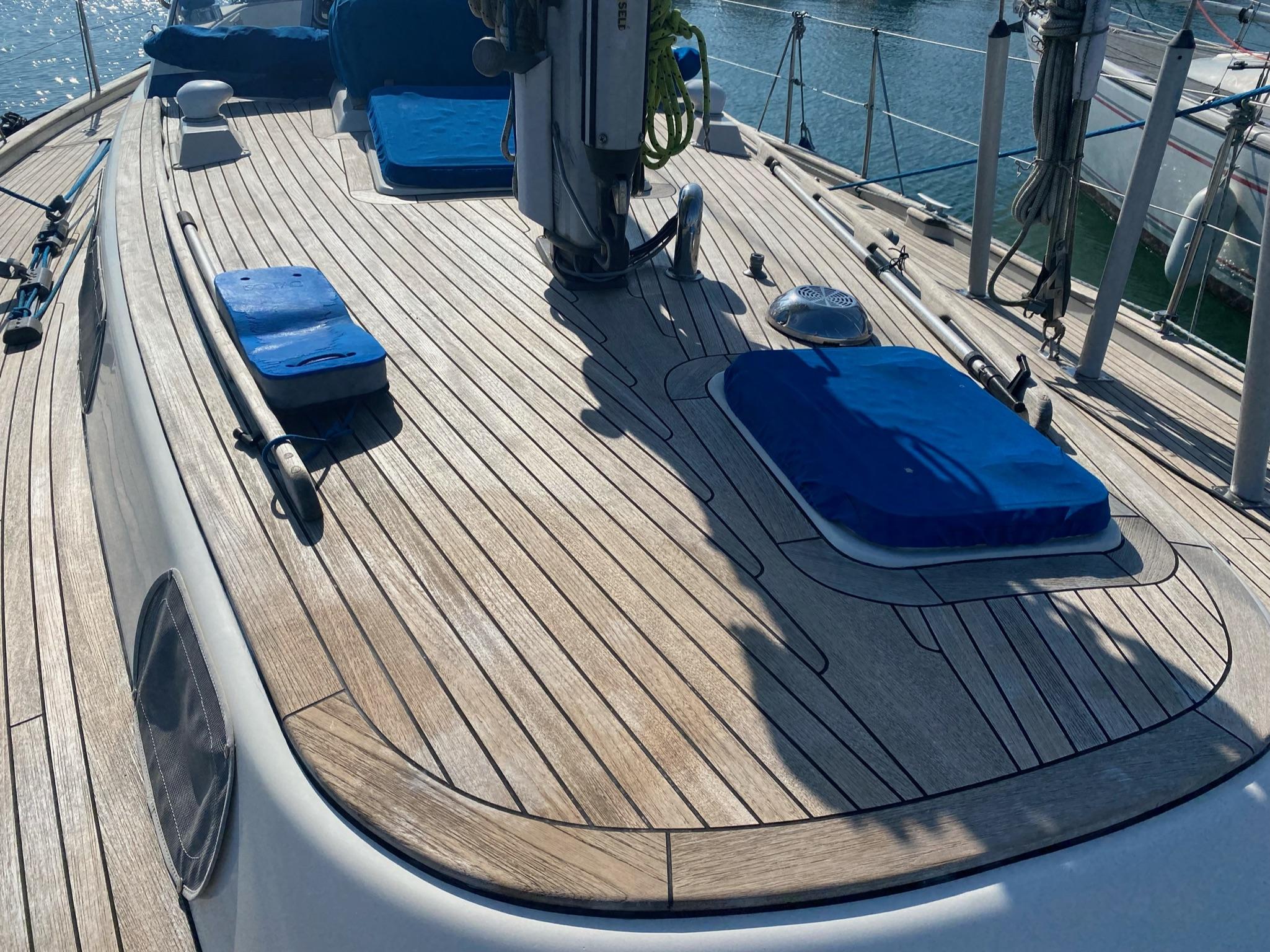

Teak laid side decks & coachroof, renewed in 2015

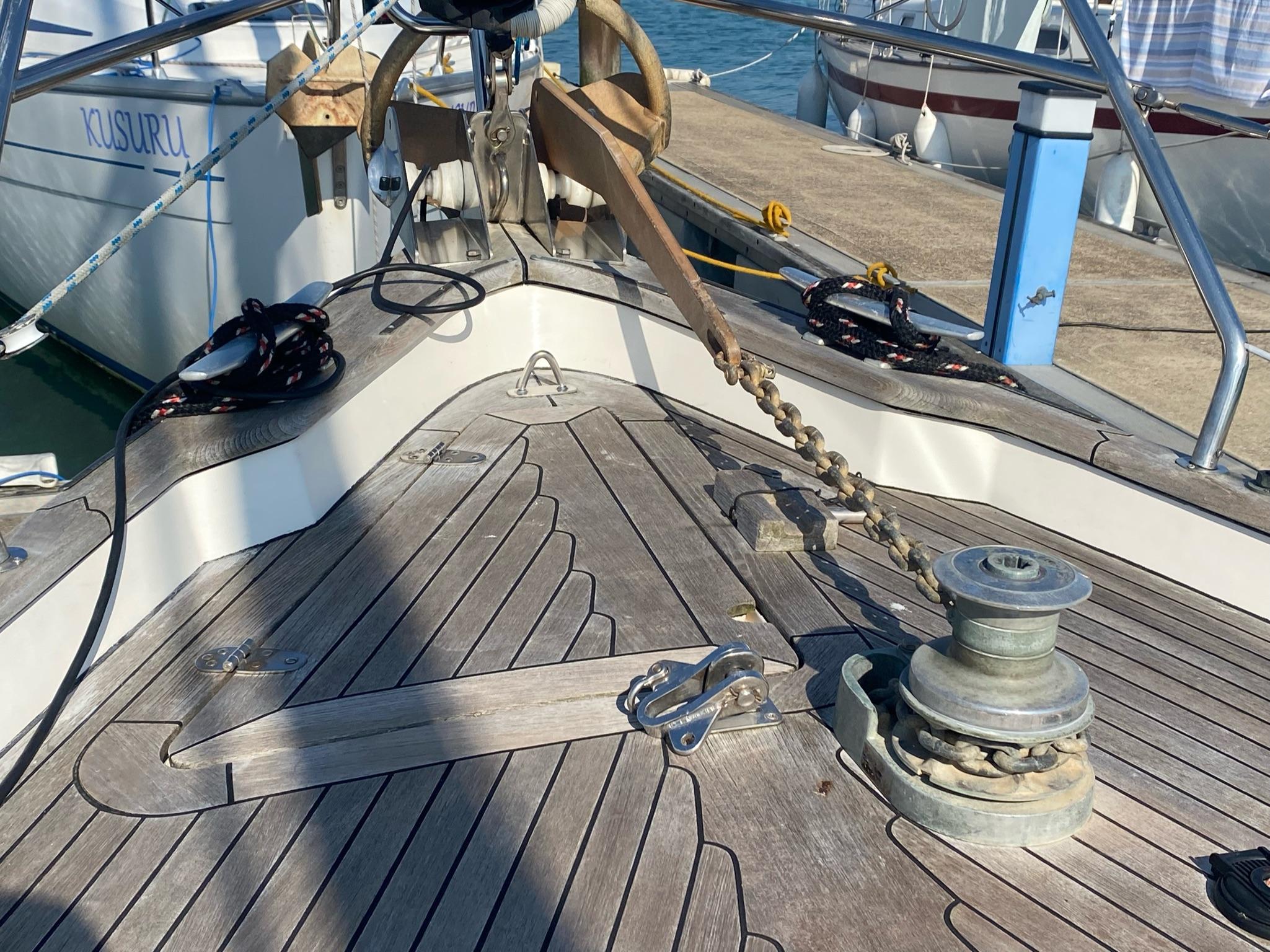

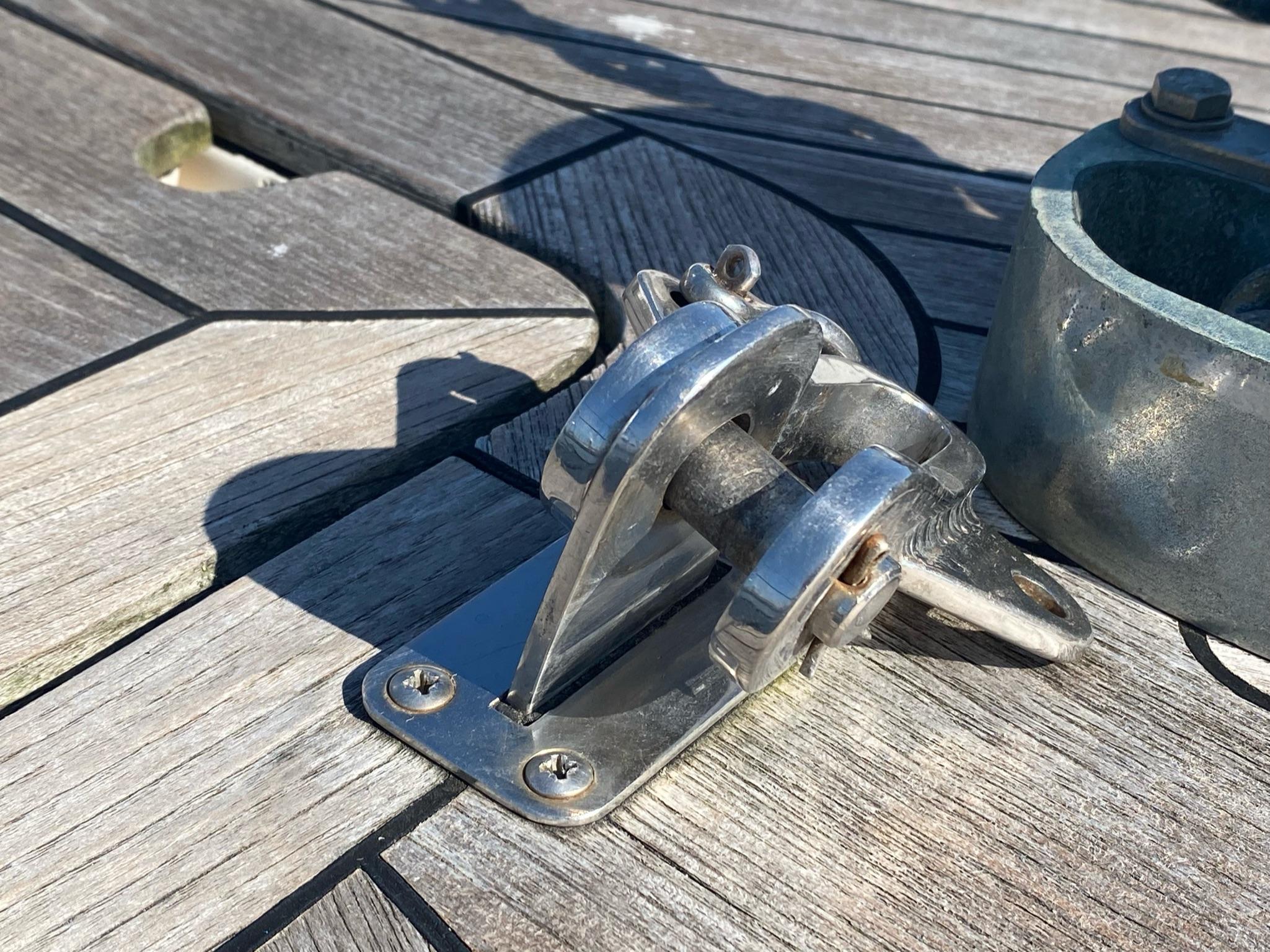

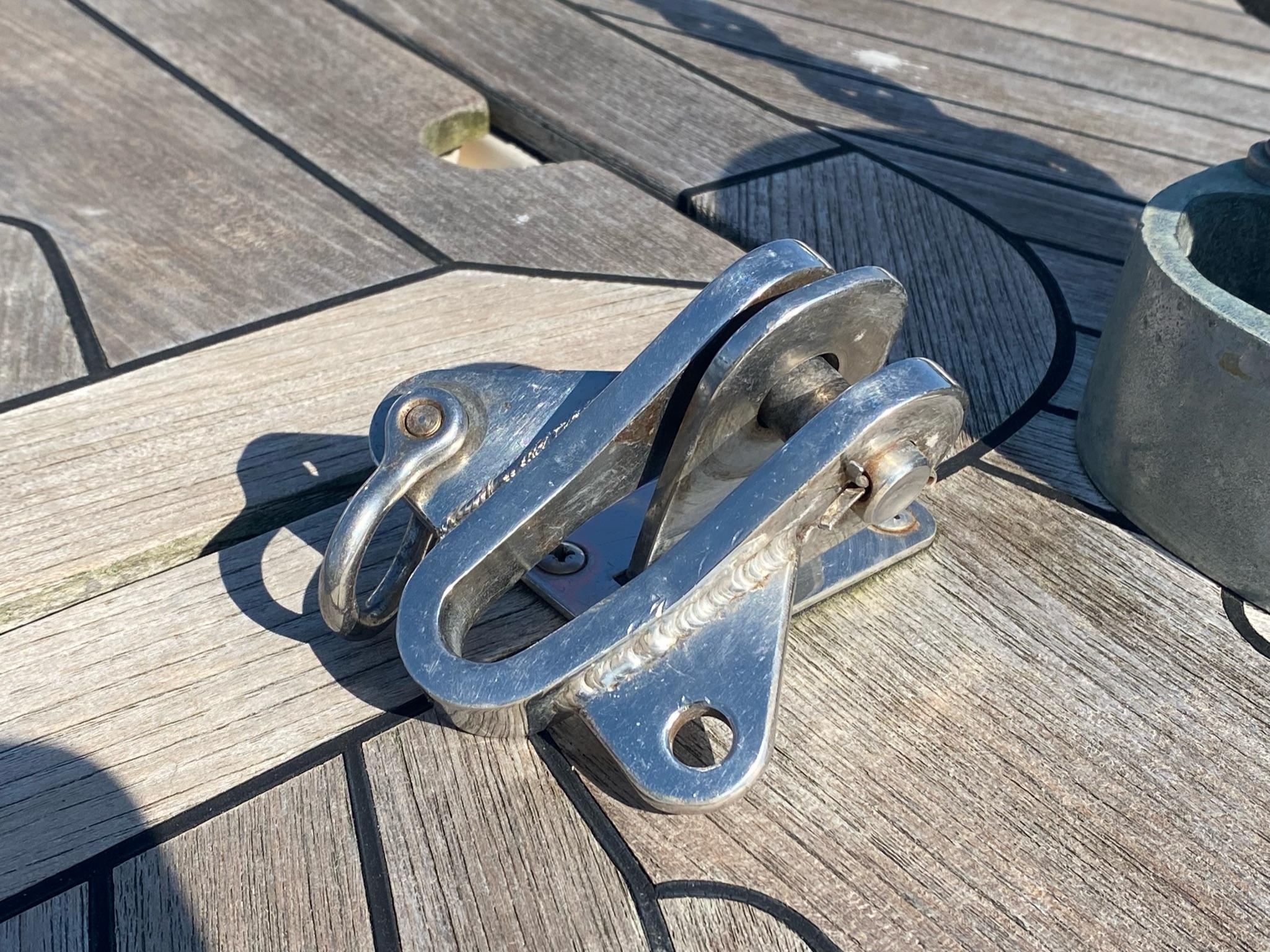

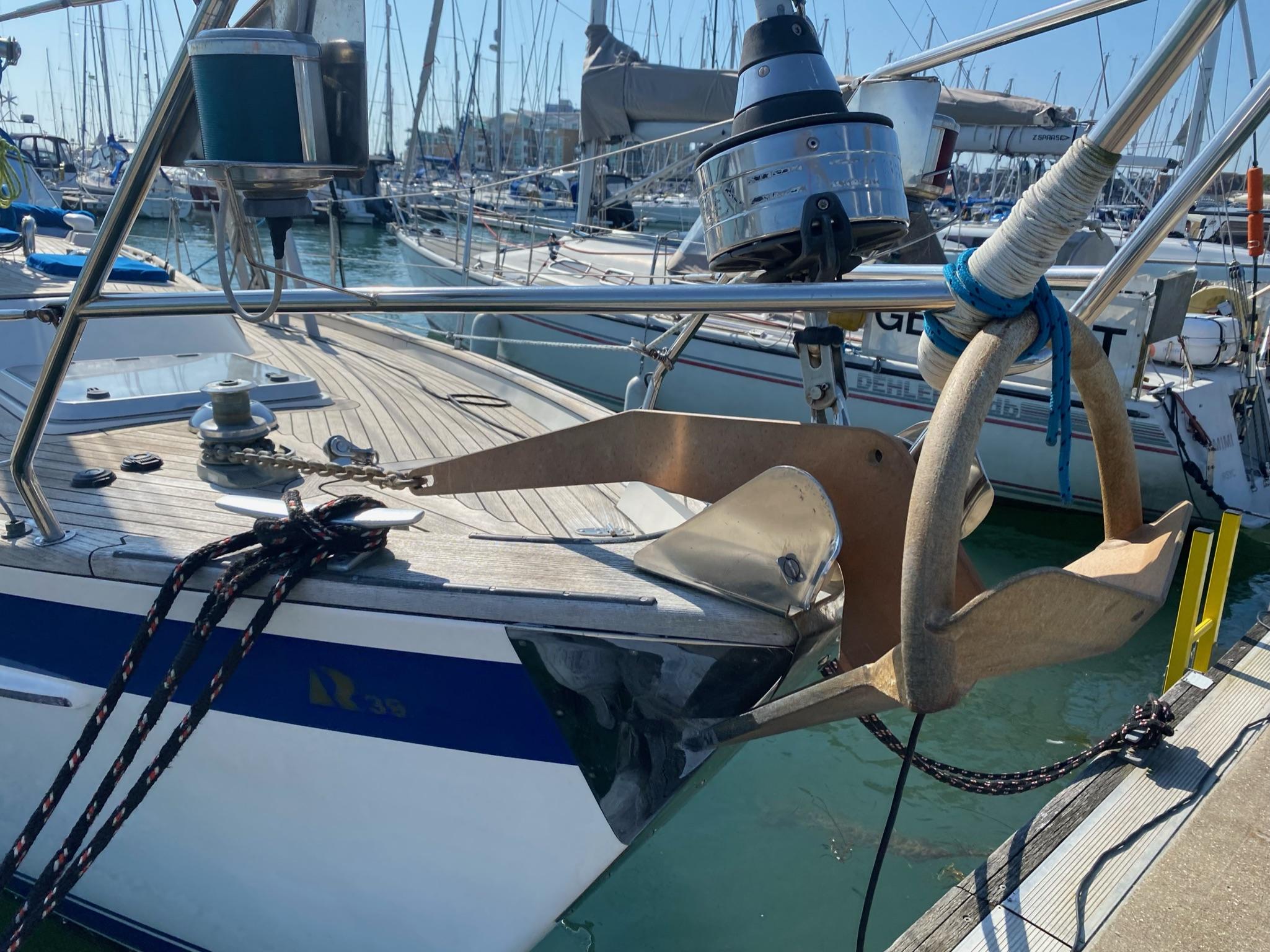

Stainless steel stemhead fitting with double bow rollers

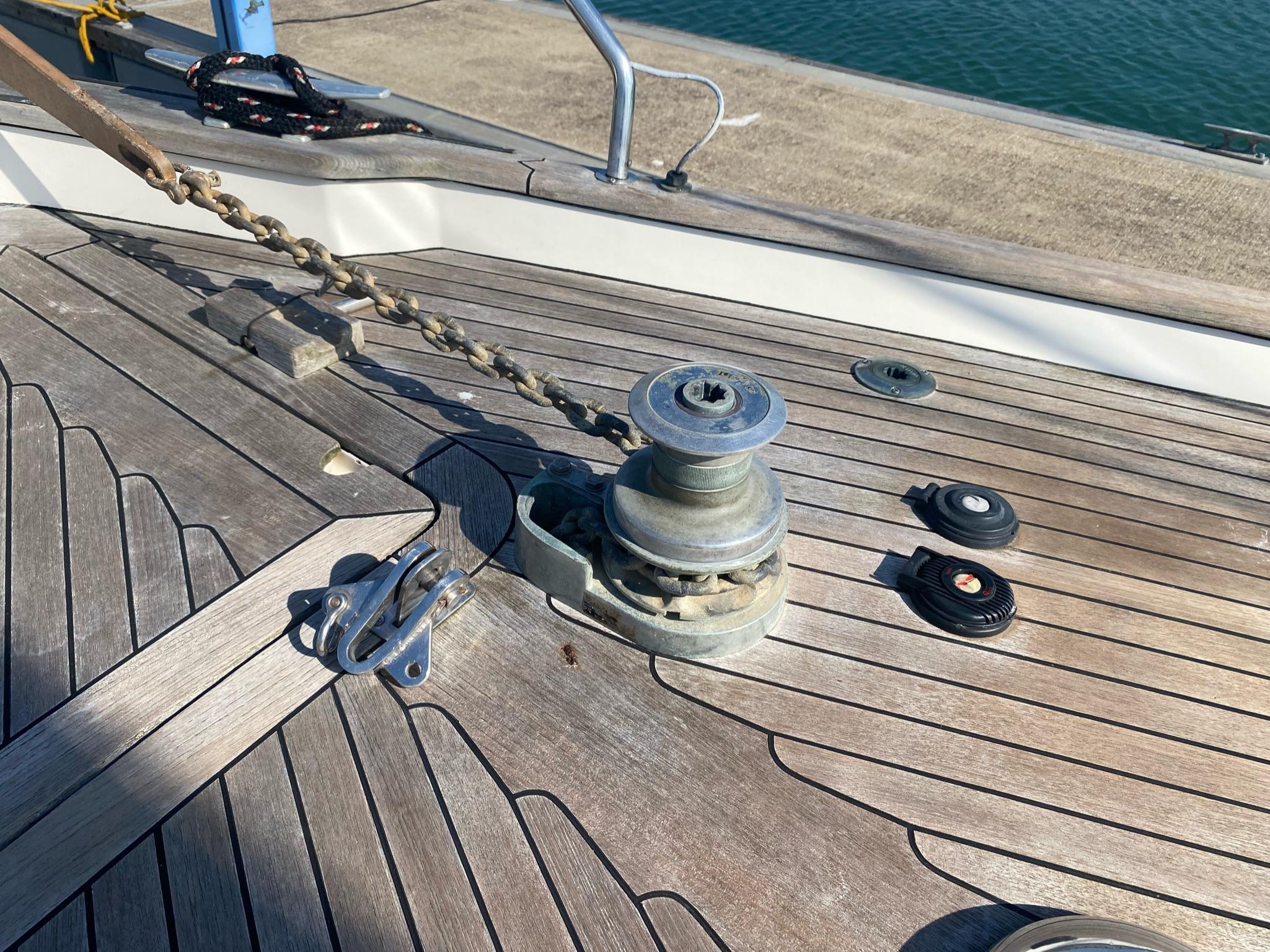

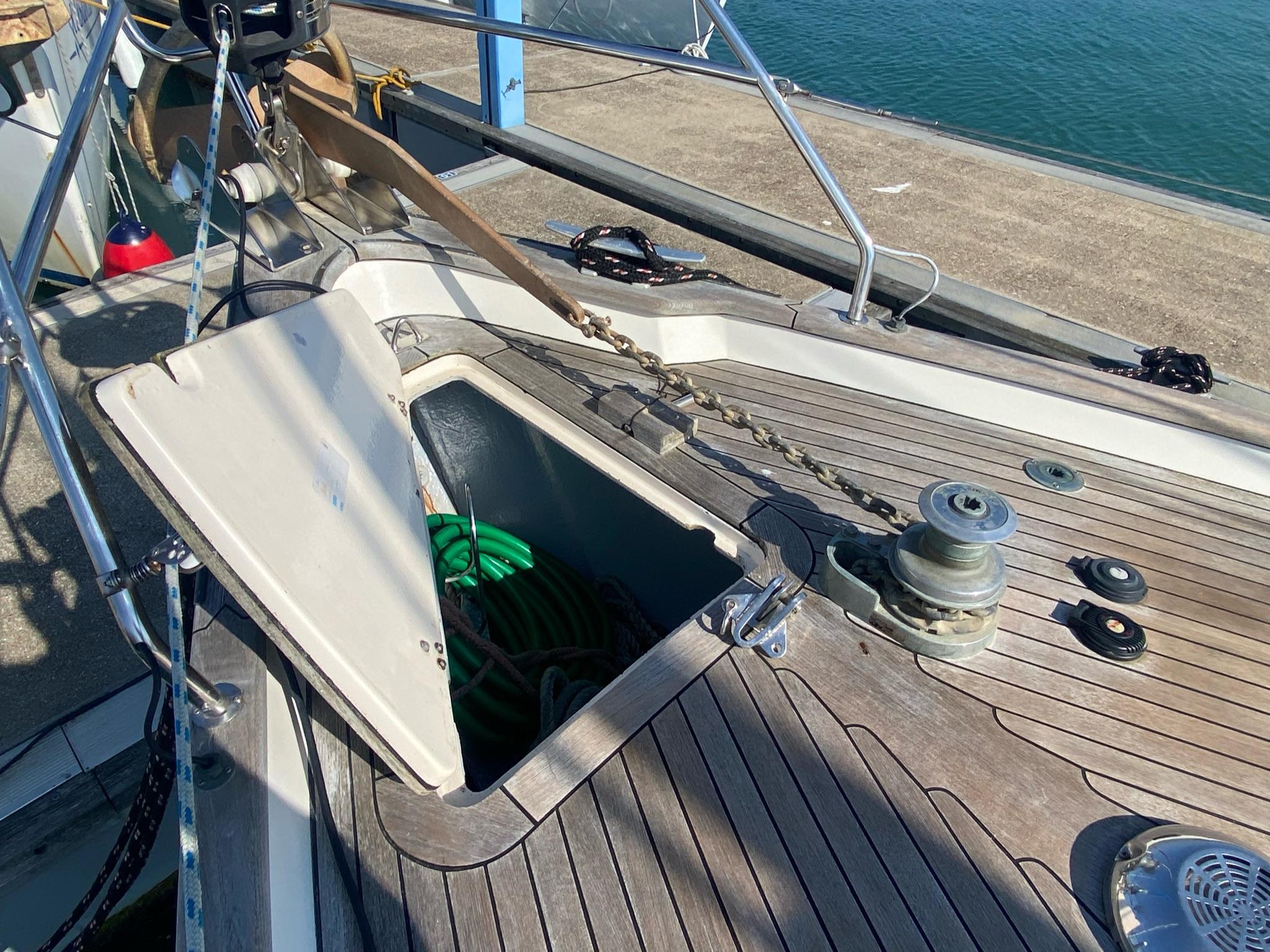

Electric anchor winch with footswitches on foredeck
45lb CQR ROCNA anchor with 40m chain.
CQR availble (Regalvanised)

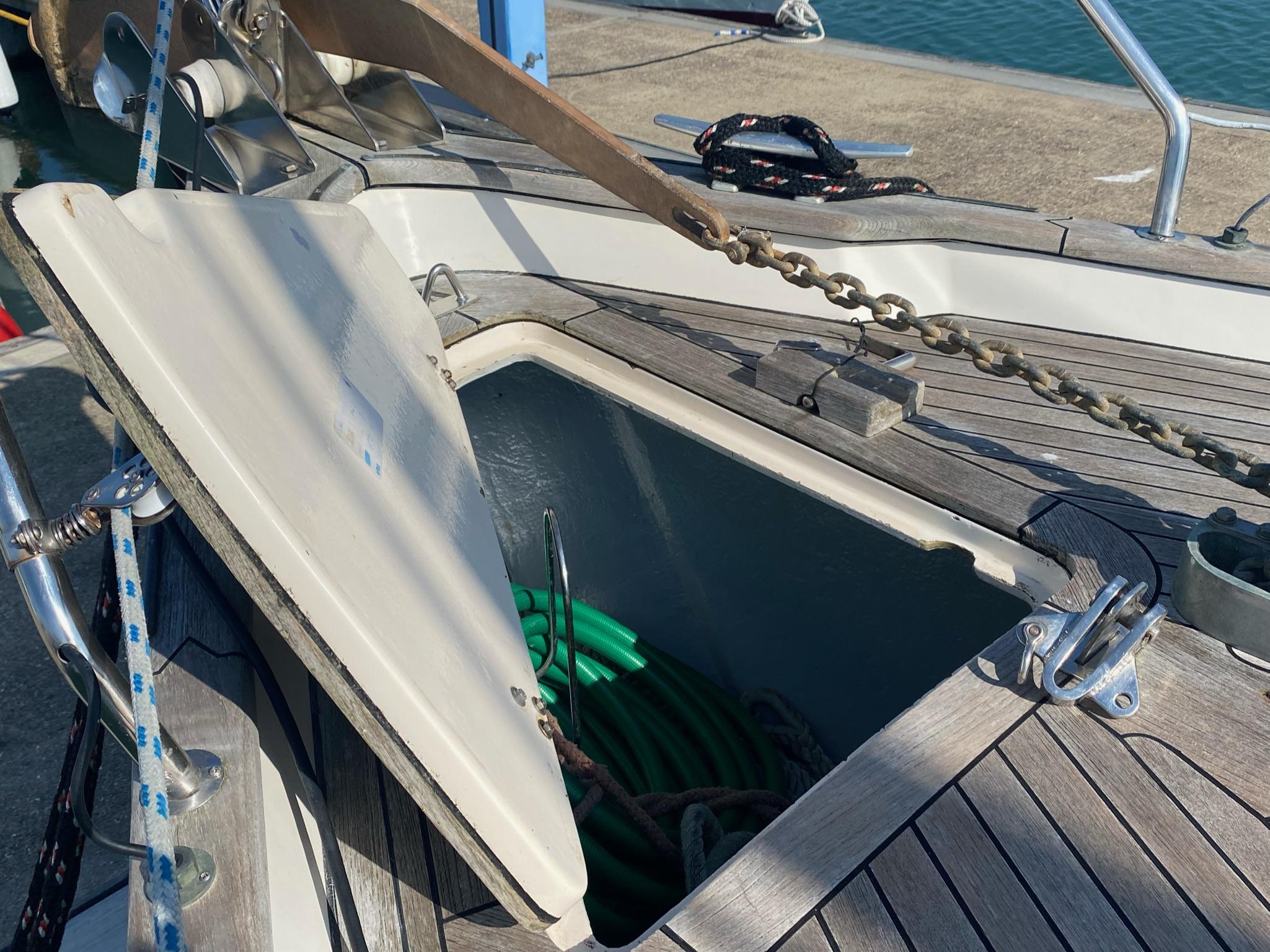

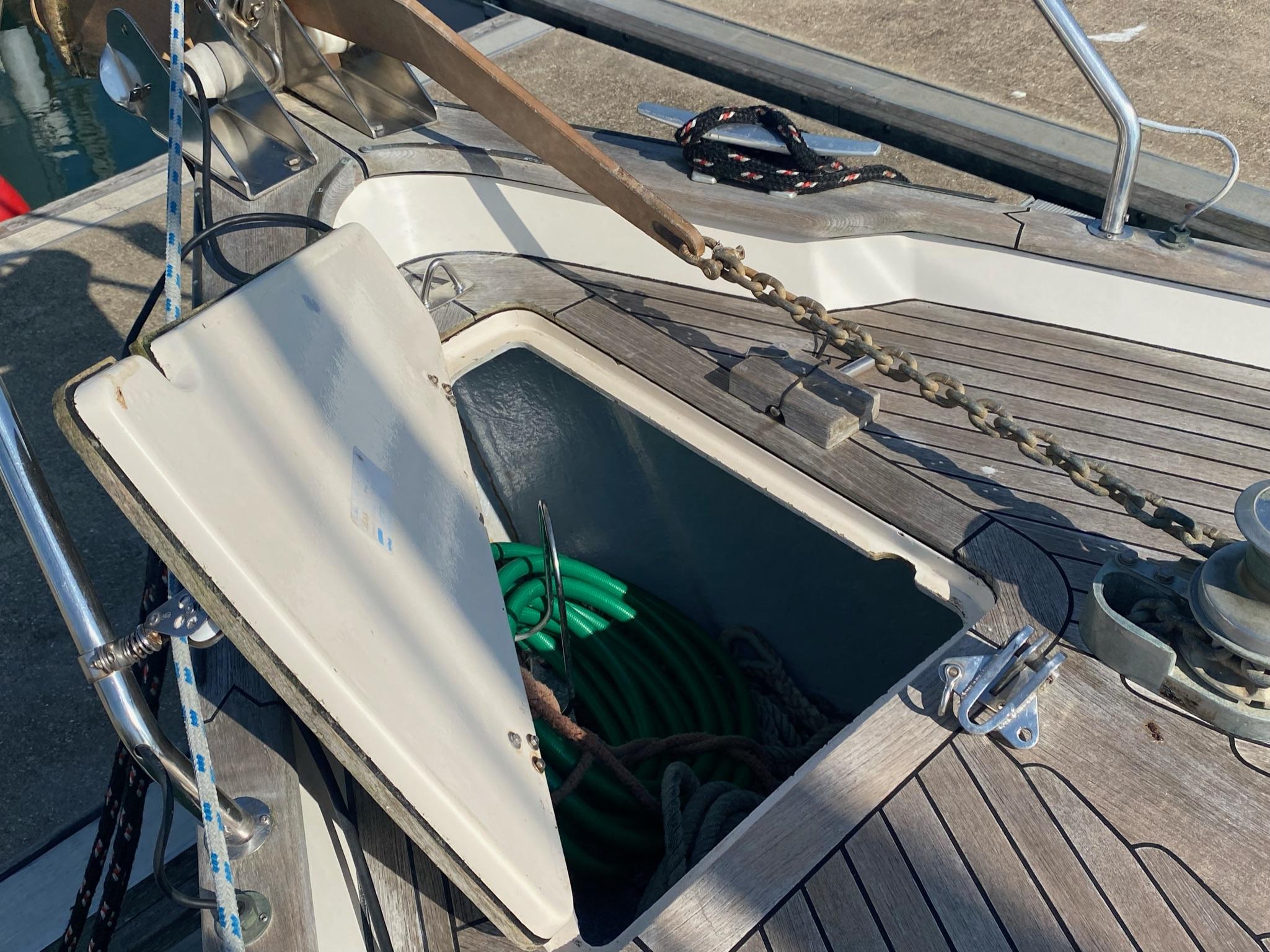

Self draining chain locker
Emergency fortress anchor and warp
Stainless steel stanchions & double guard wires
Entry gates port & starboard
Brass protection strips to all mooring & spring cleats

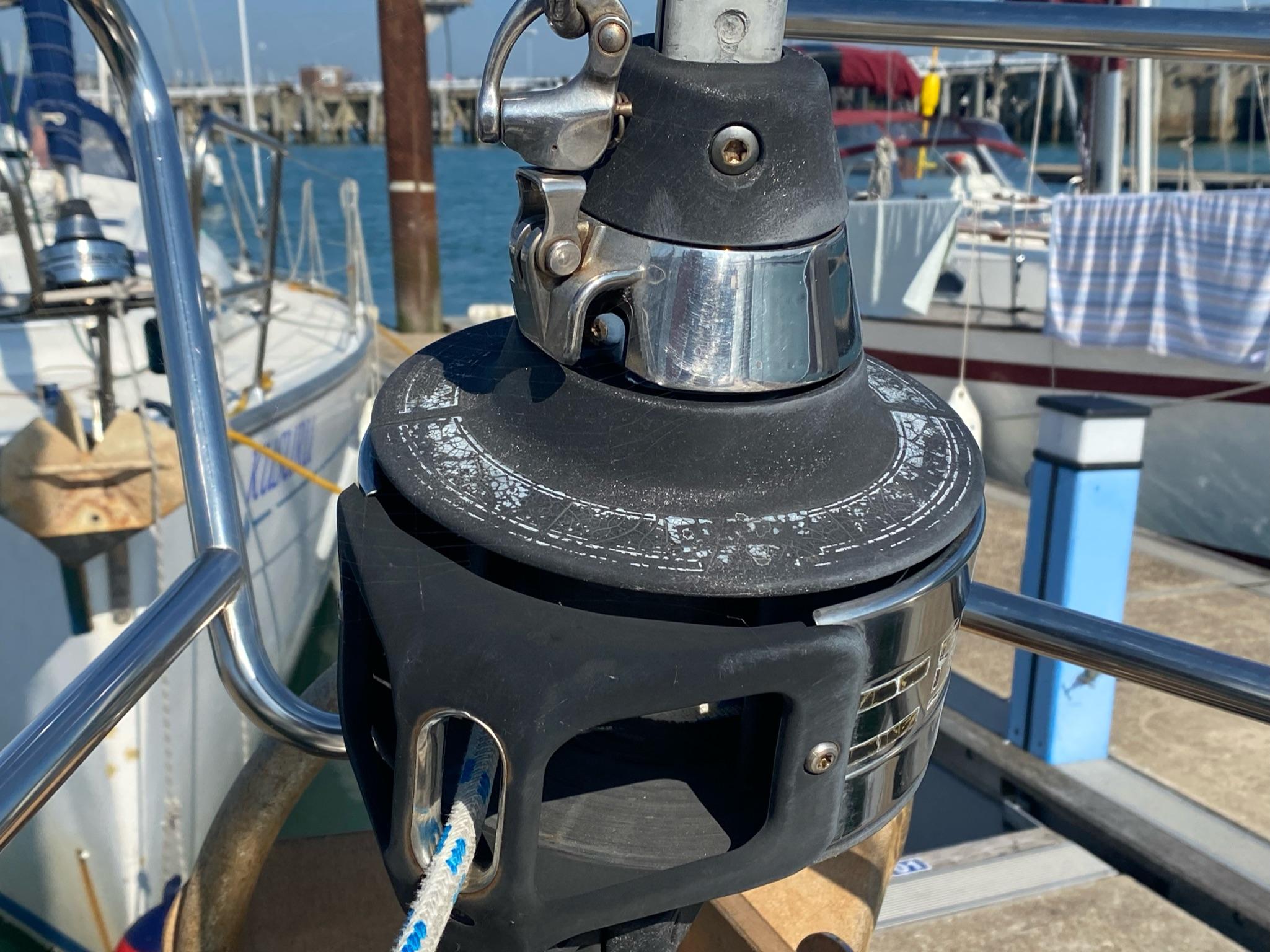

Lewmar 54 CST self tailing genoa sheet winches
Lewmar 30 CST self tailing mainsheet winches
Outboard bracket on pushpit

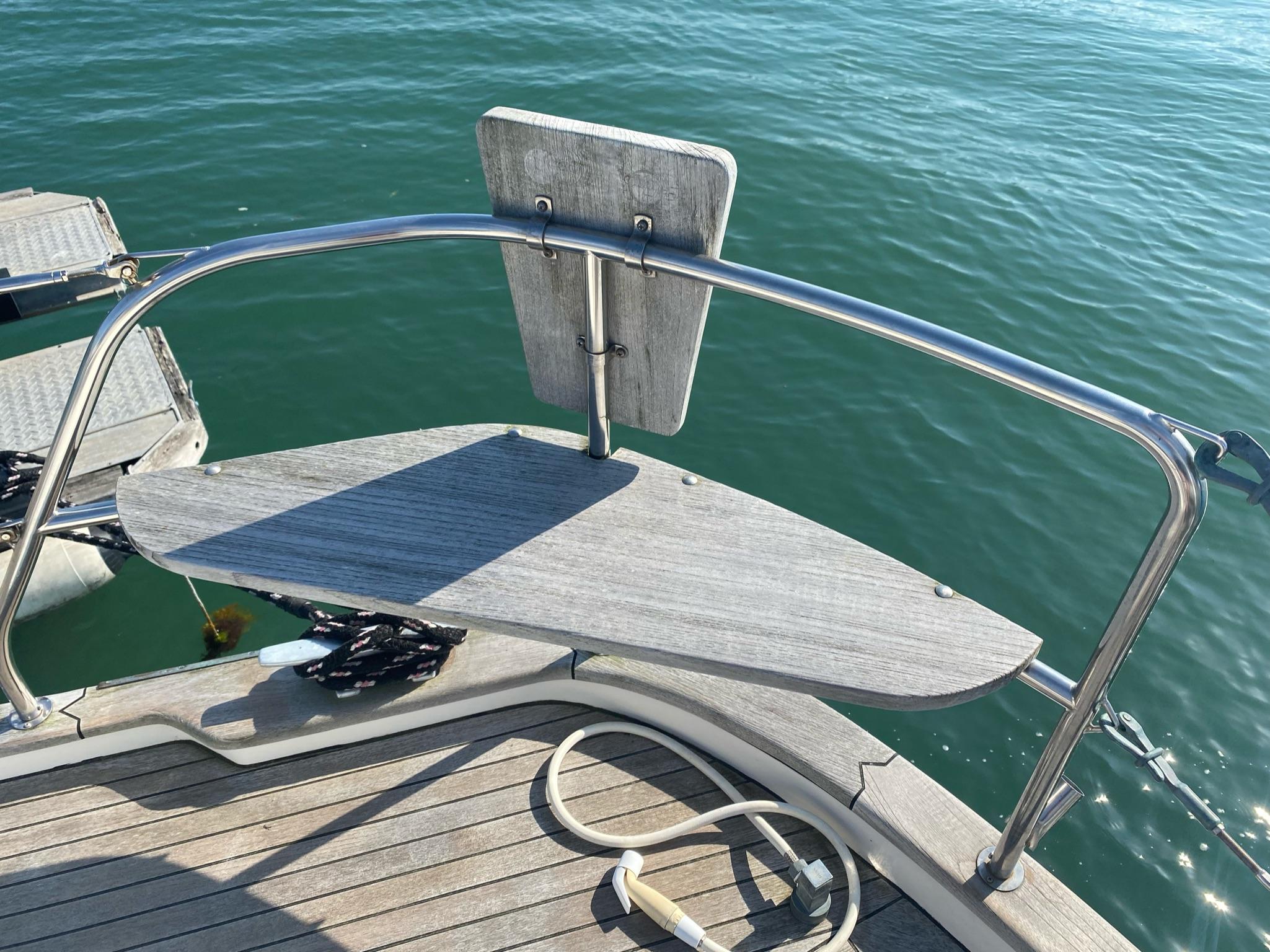

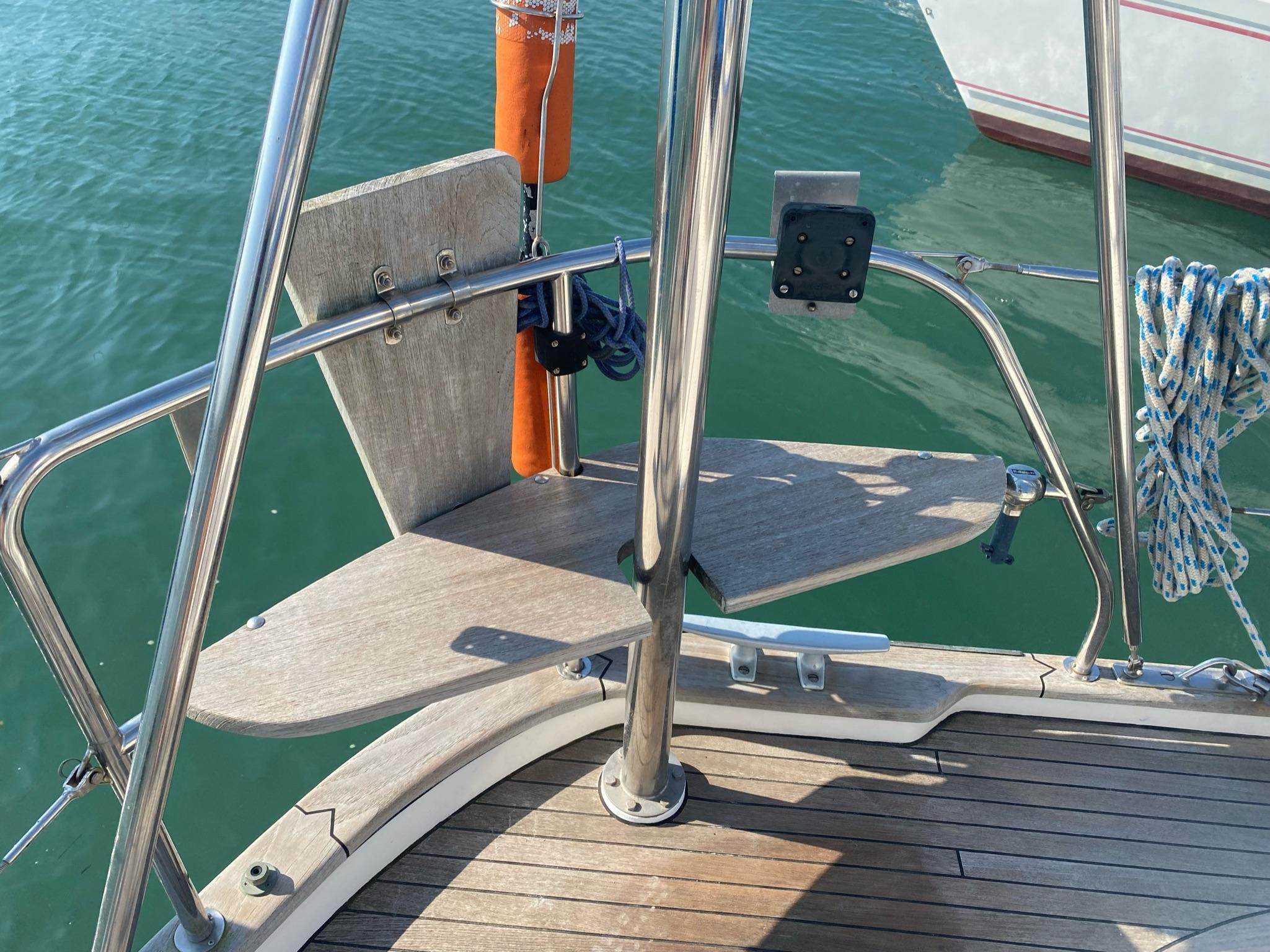

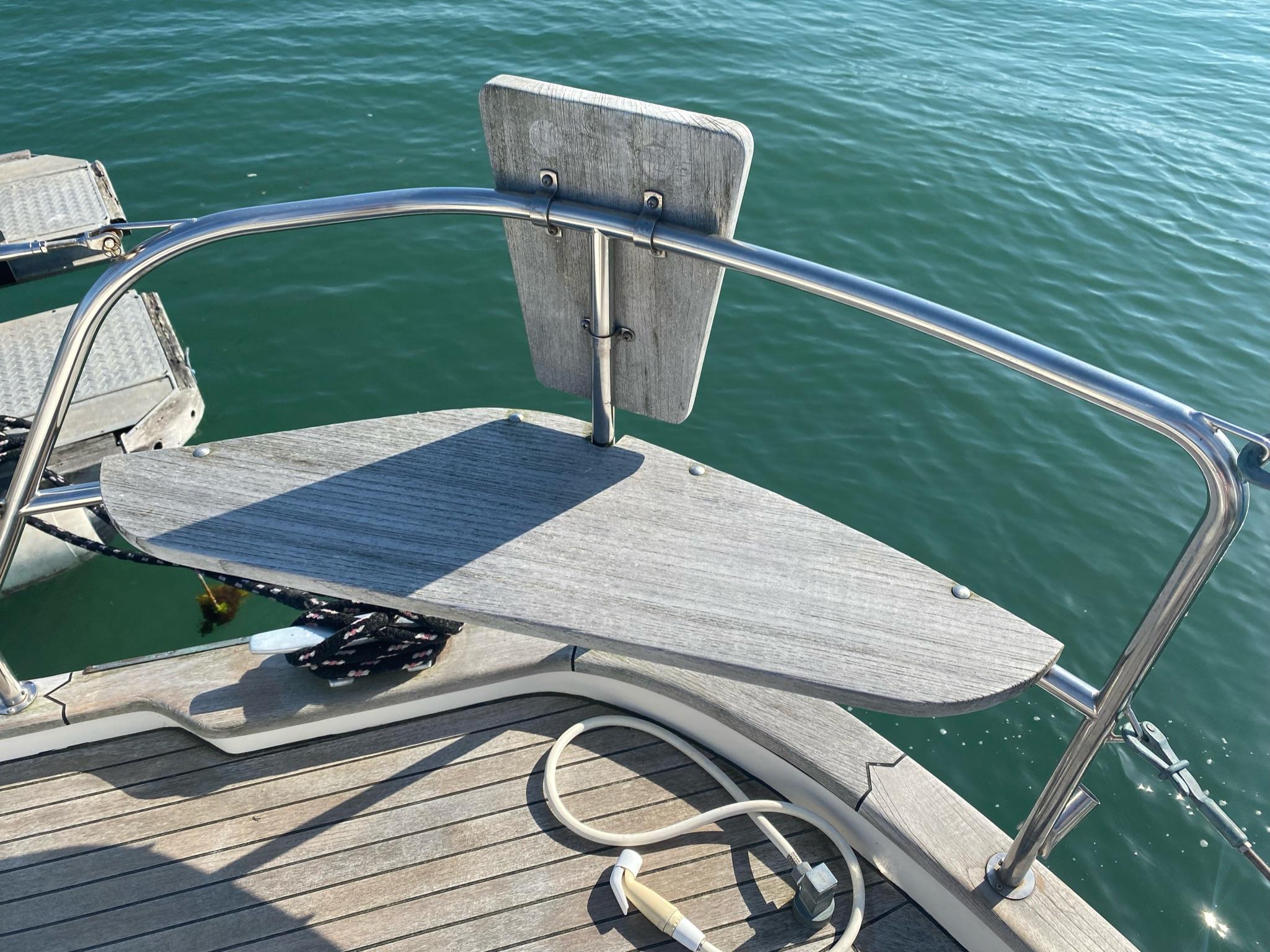

Teak pushpit seats
Large cockpit locker

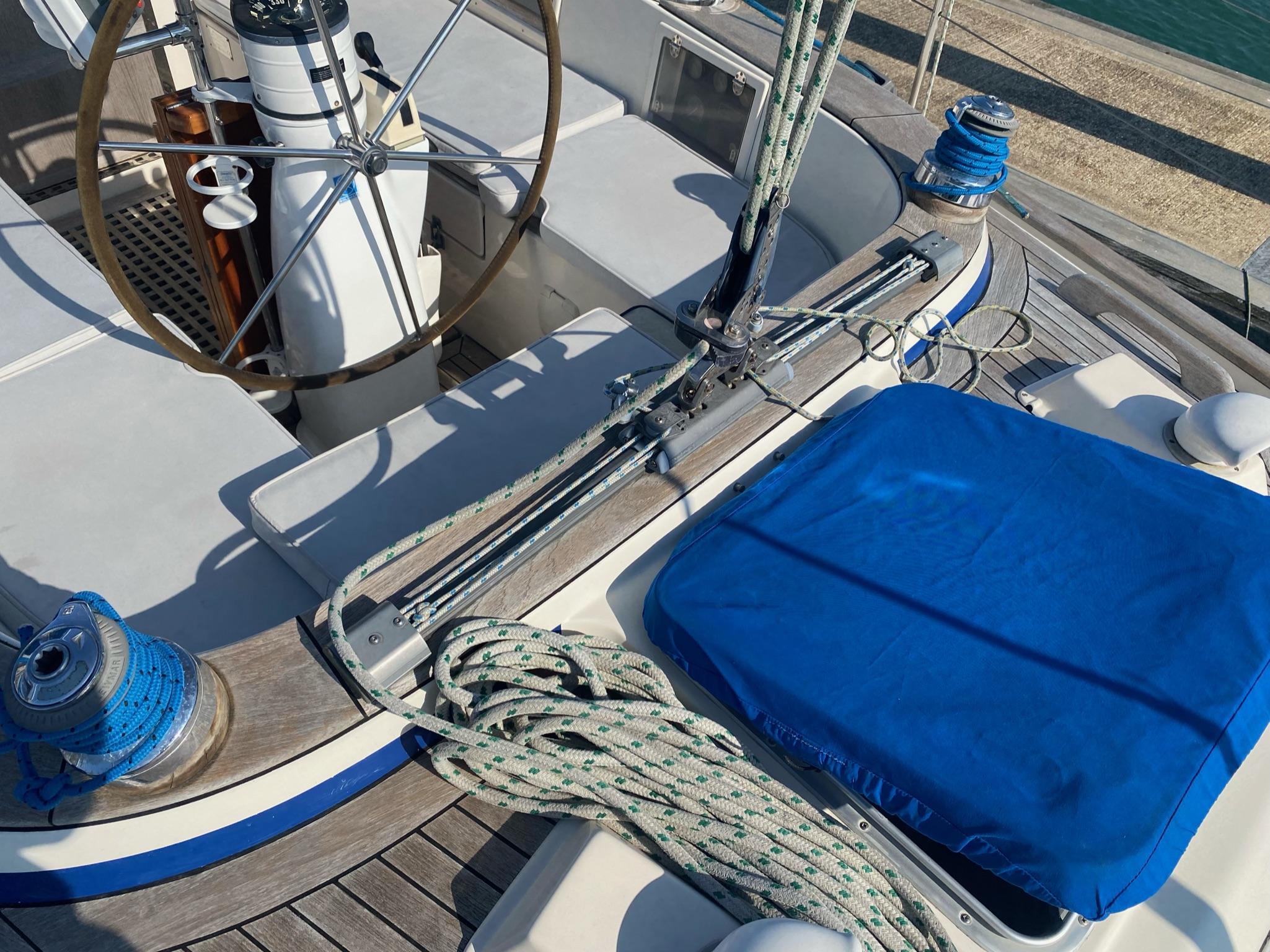

Solimar wheel steering with new cables and masterlink 2022

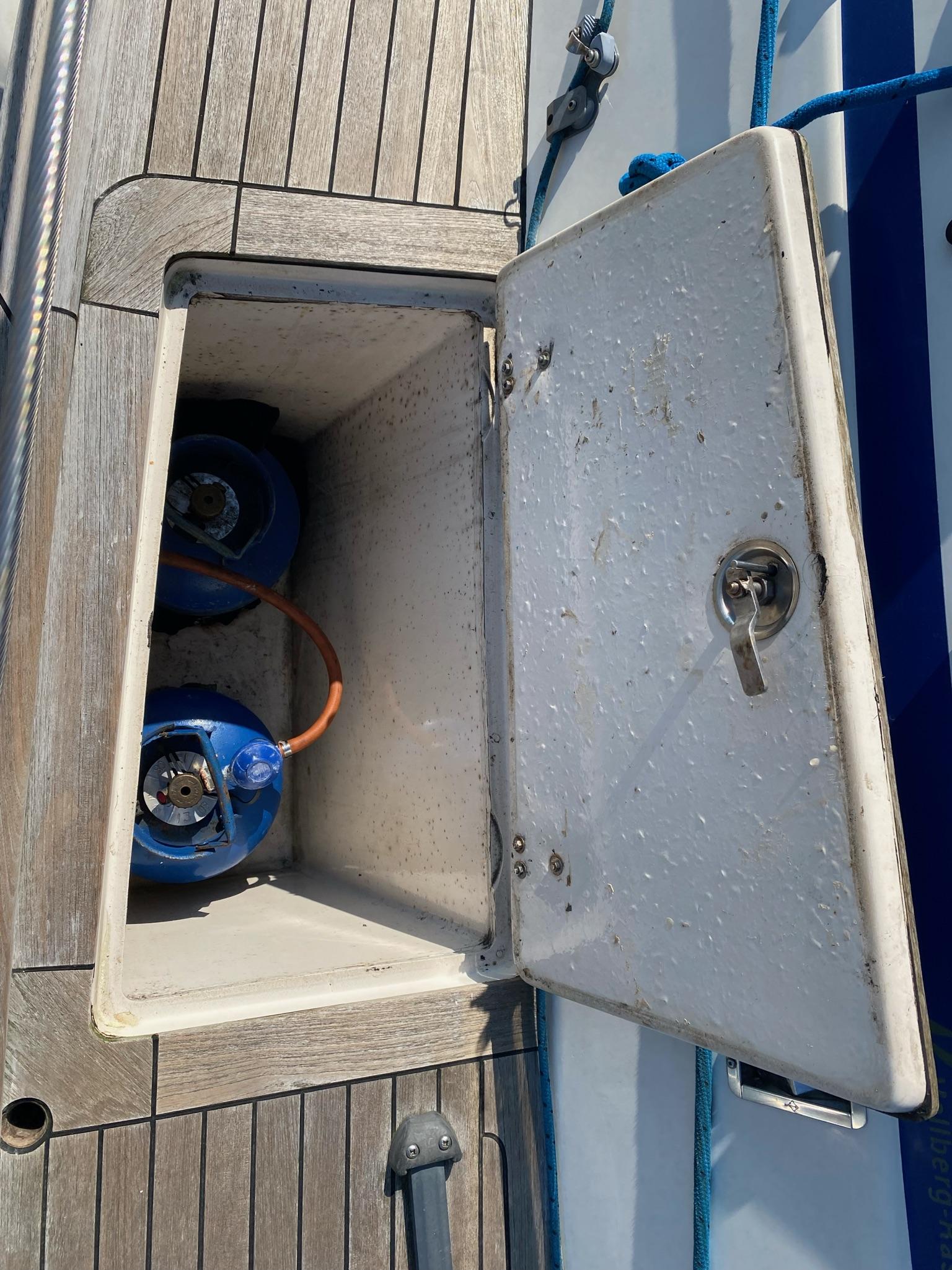

Gas locker on starboard side deck with room for 2 x 6kg gas bottles

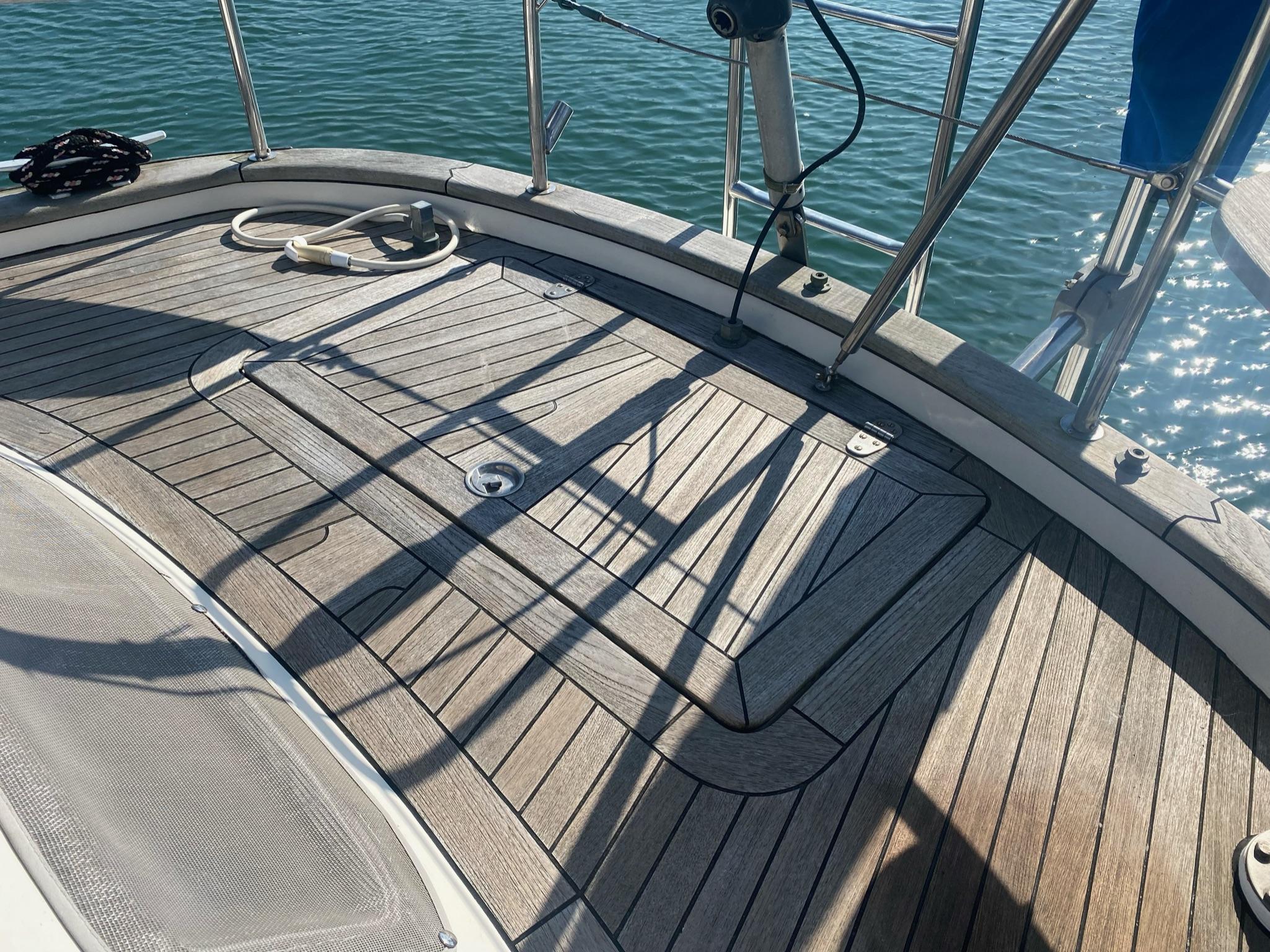

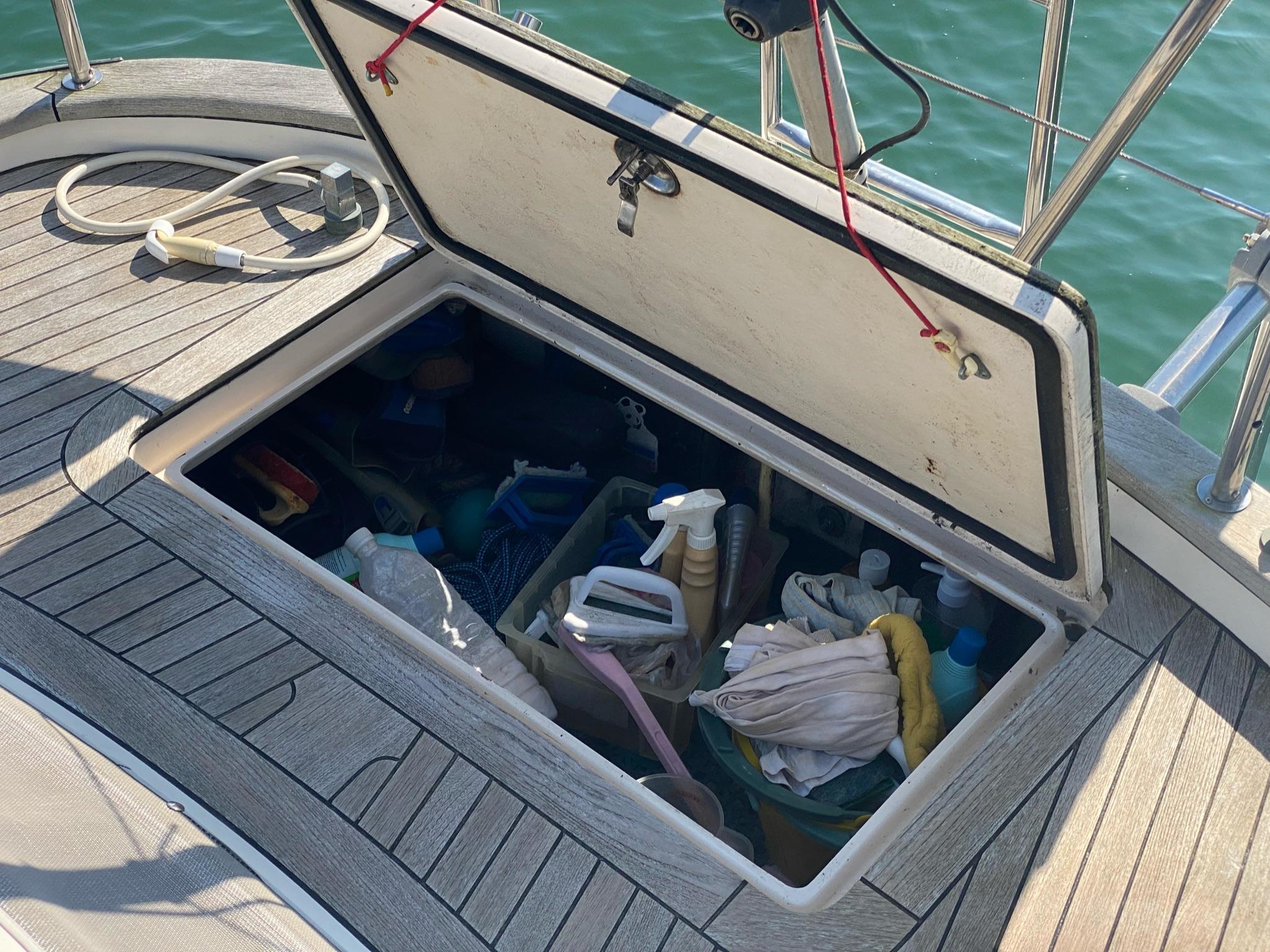

Lazarette on aft deck

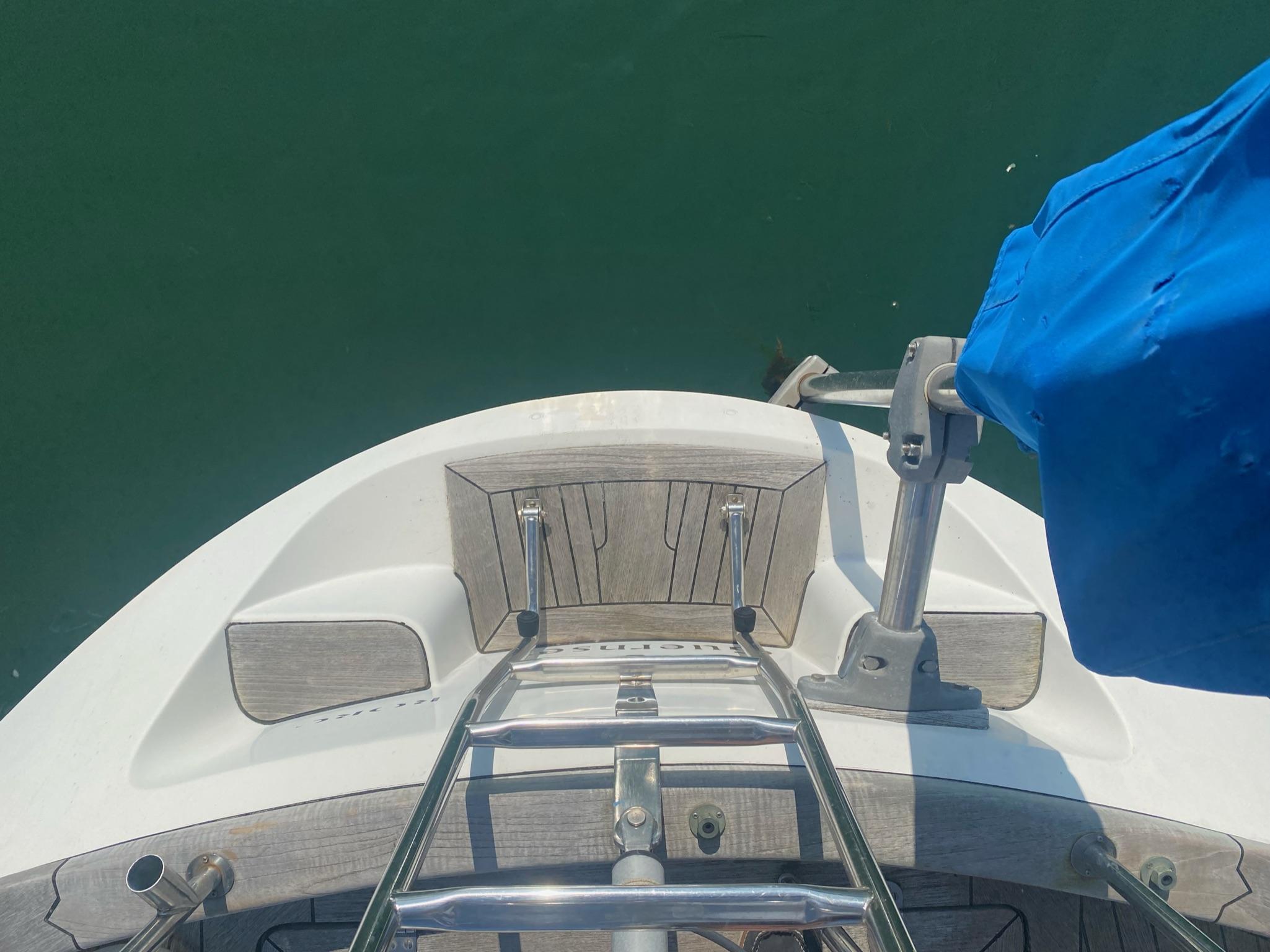

Integral bathing platform with boarding ladder
Swim shower on aft deck
Combined tricolour/anchor light at masthead
Deck light
Cockpit cushions

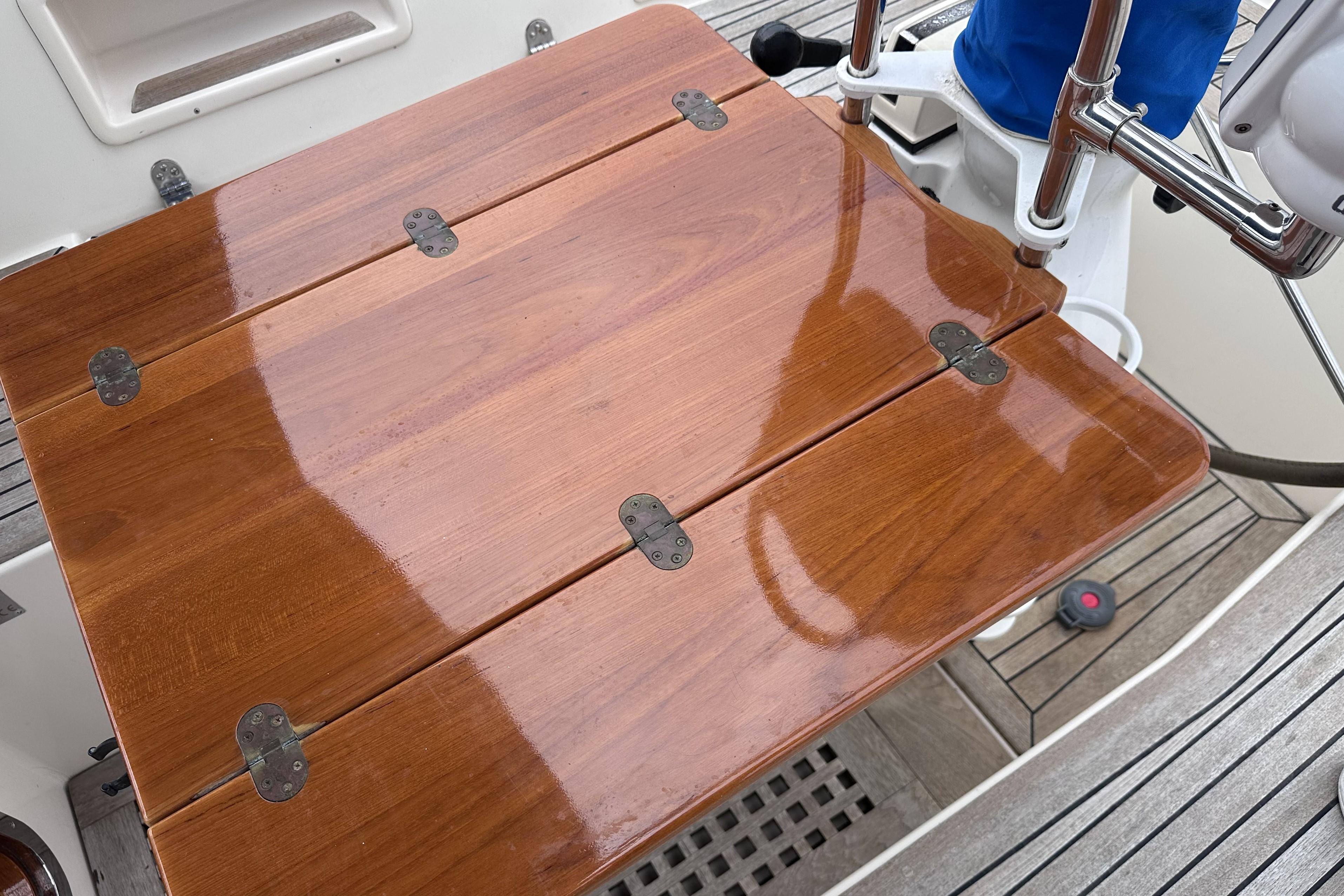

Cockpit table

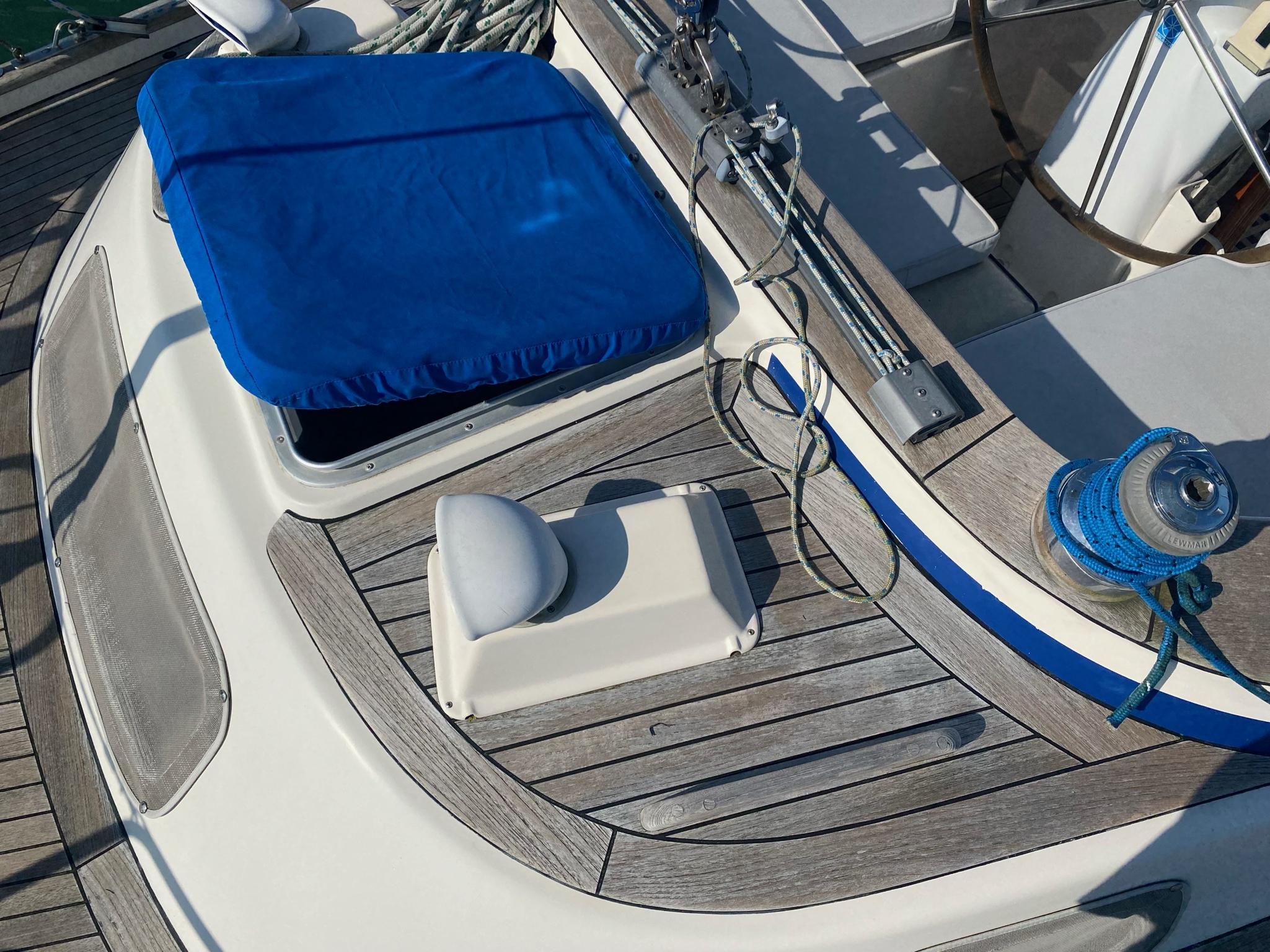

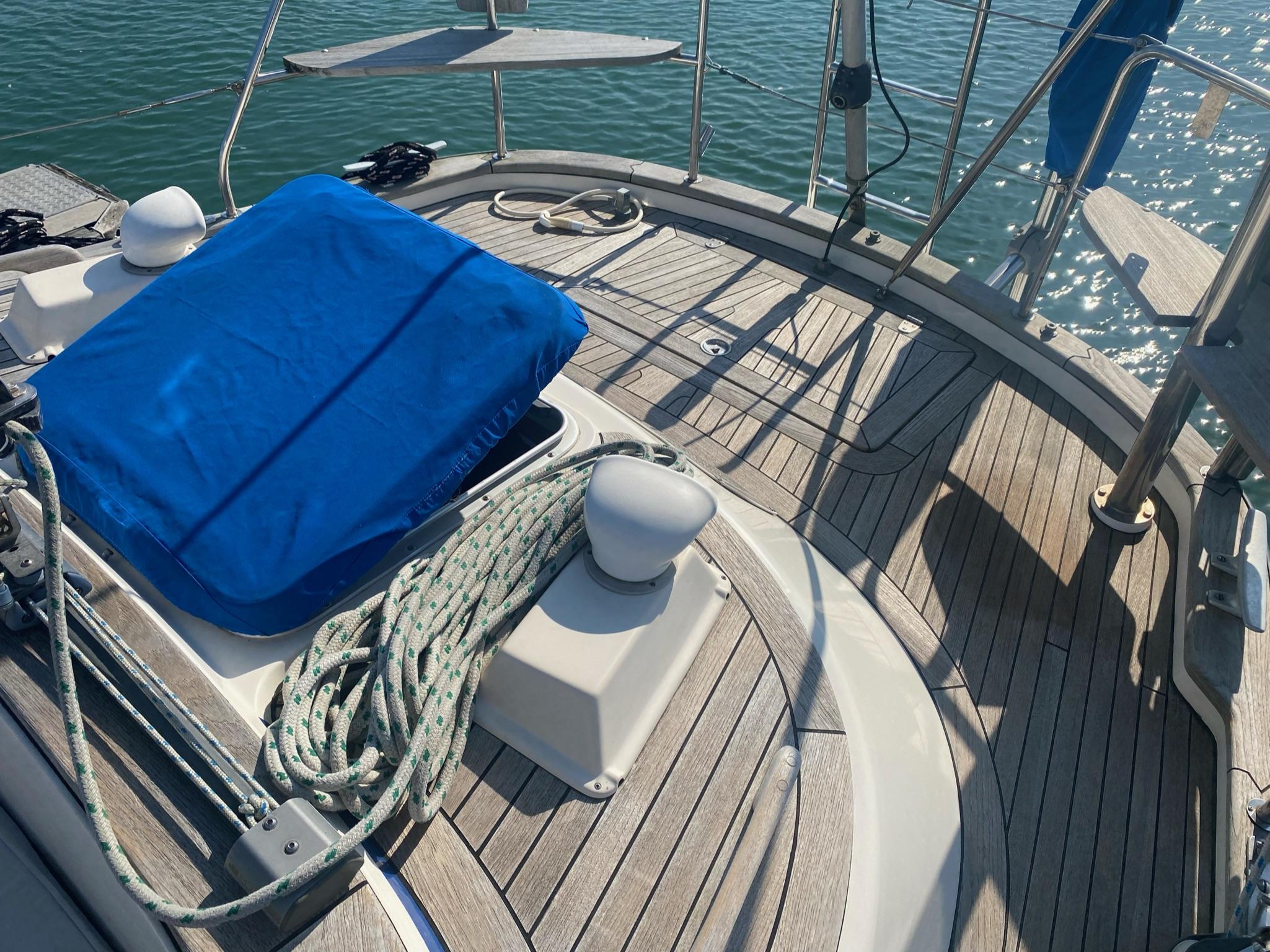

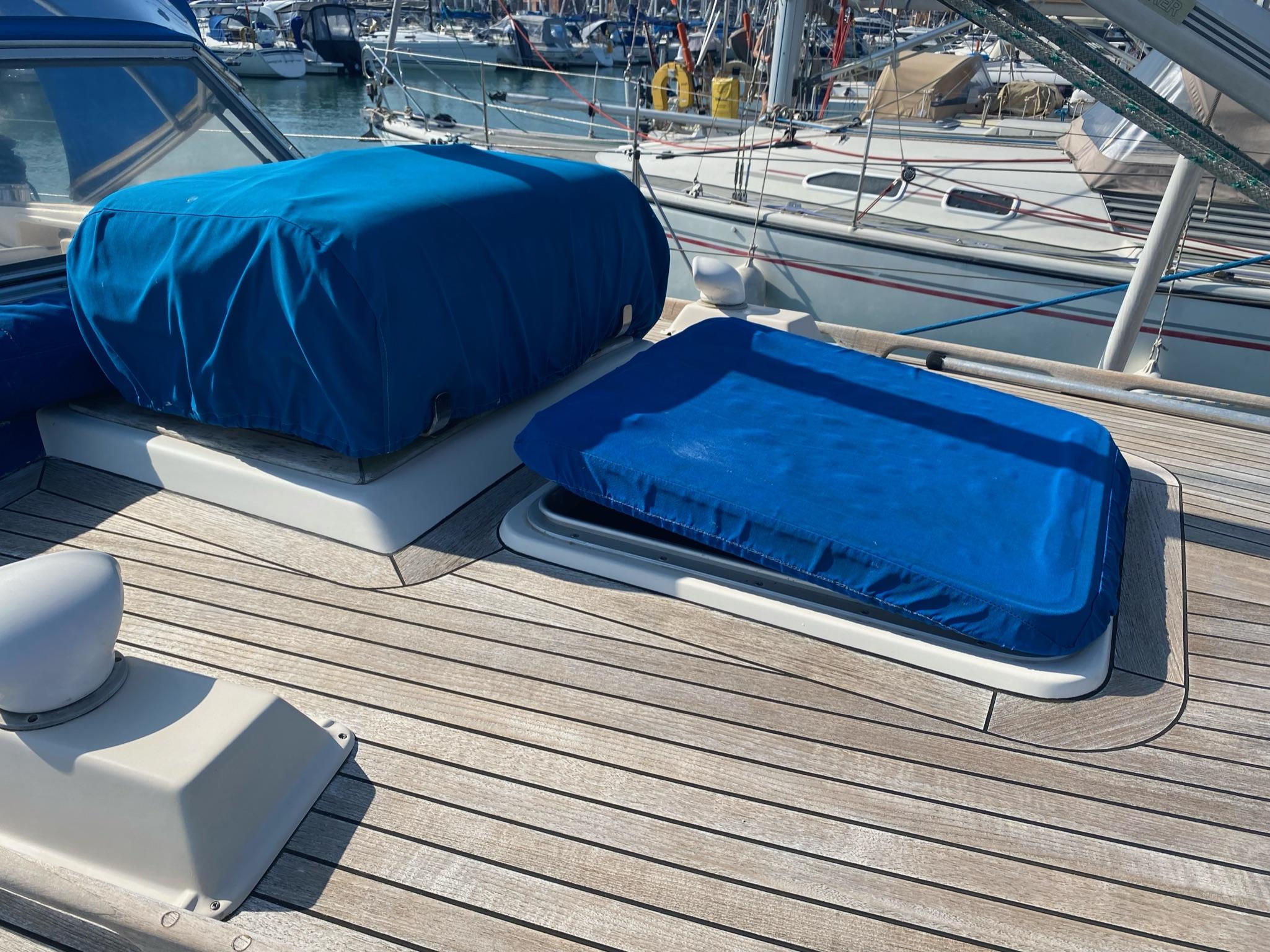

Hatch covers for deck hatches
Refurbished fore peak hatch 2022

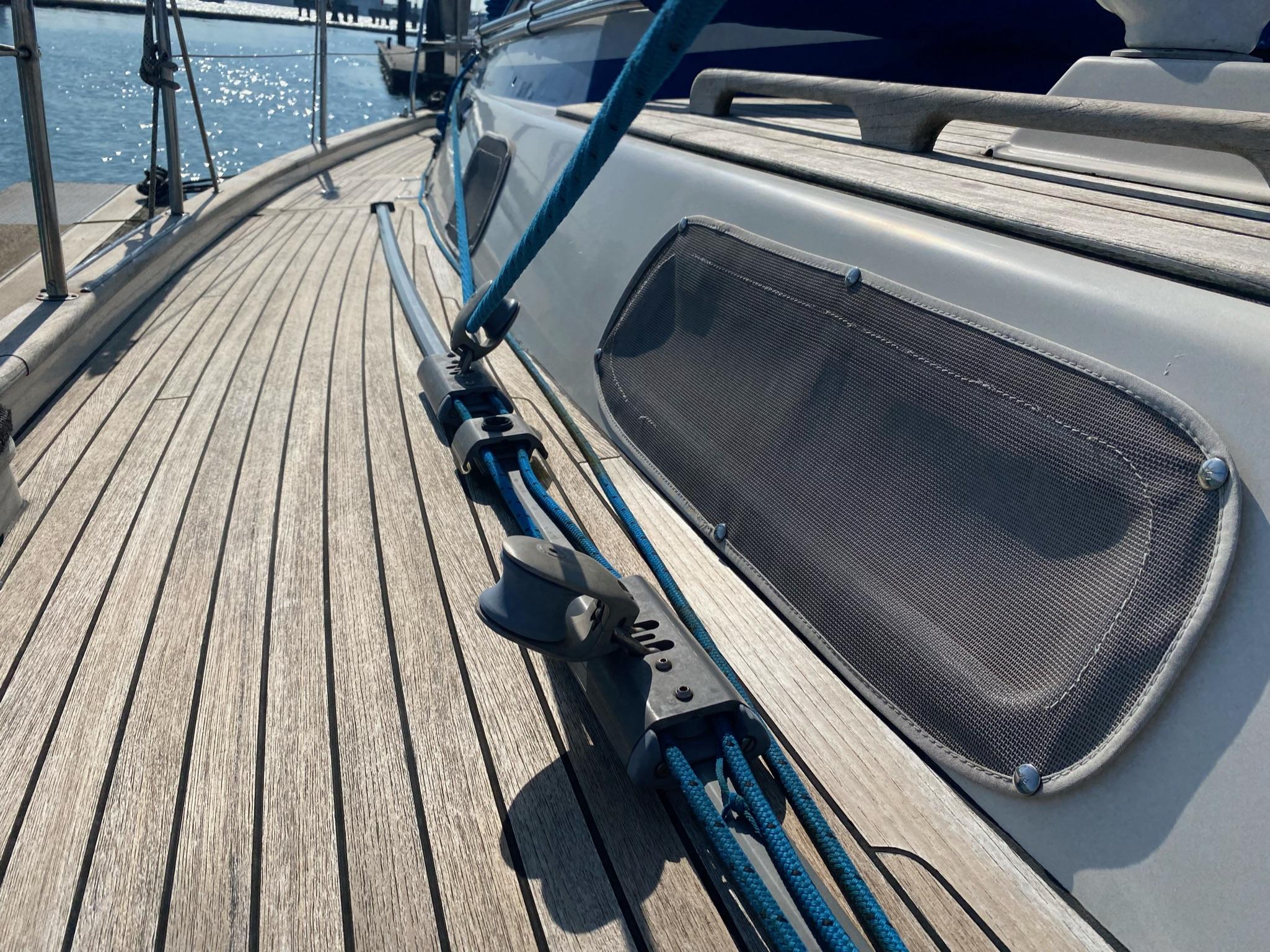

Mesh covers for portlight

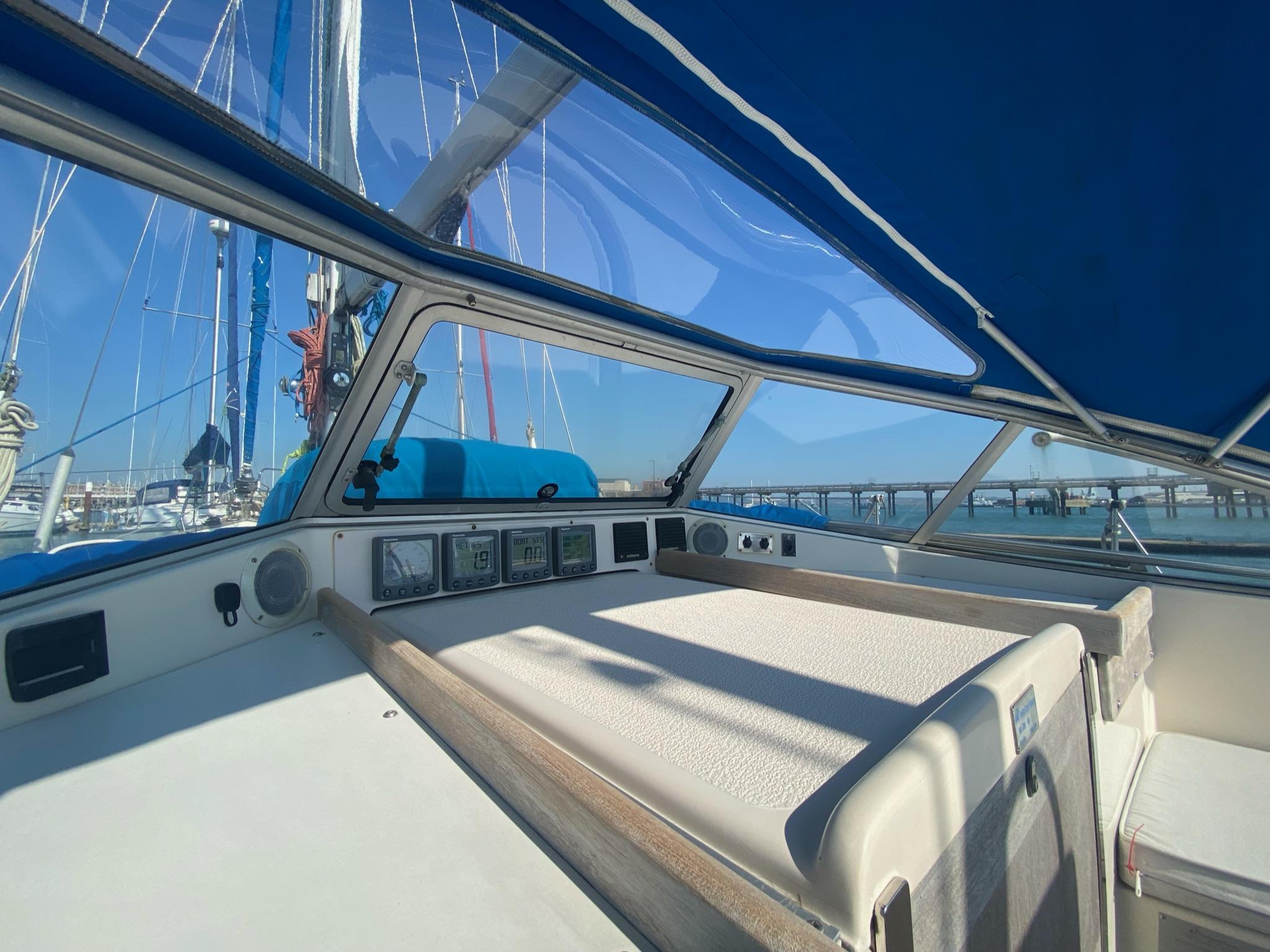

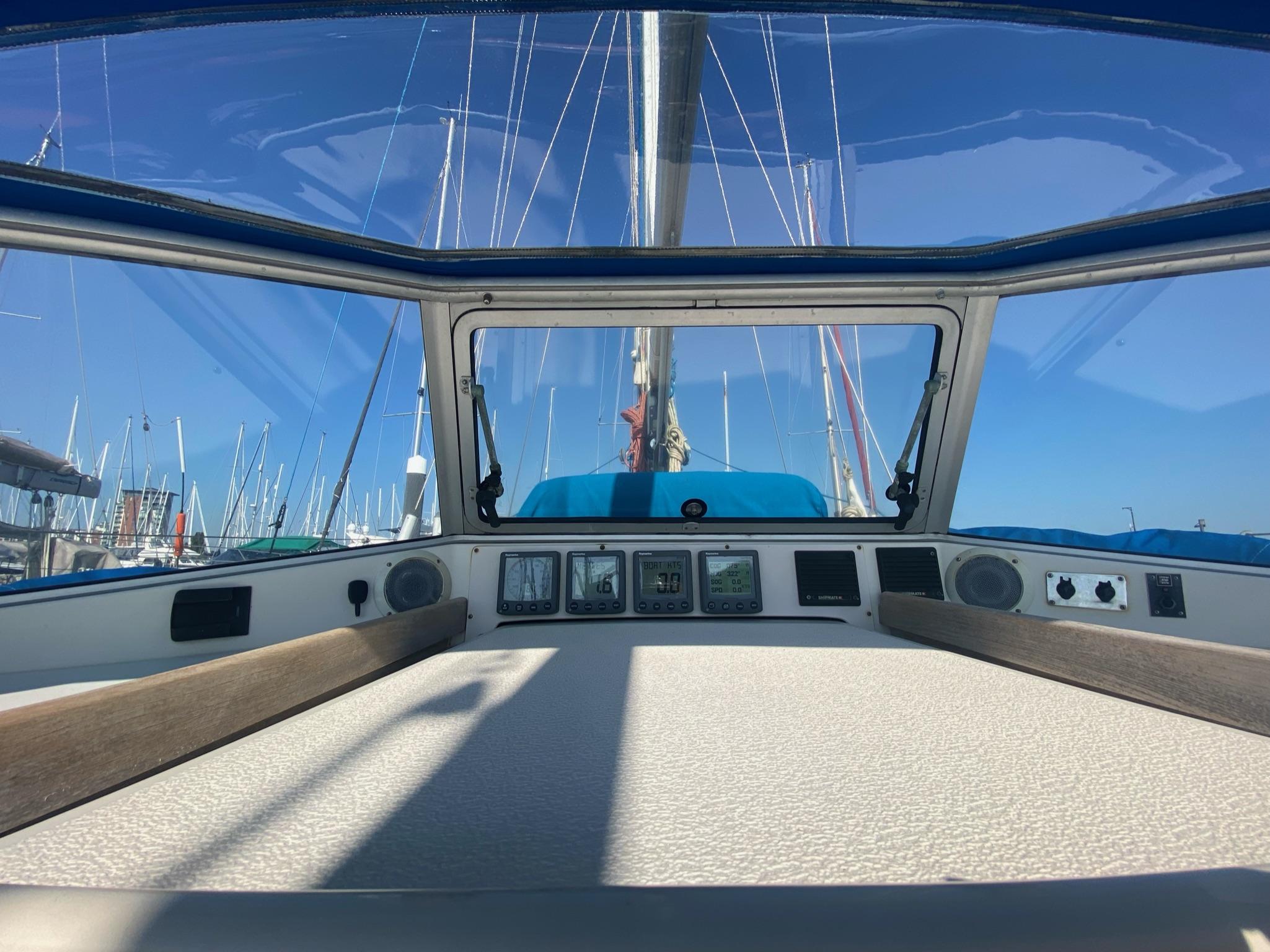

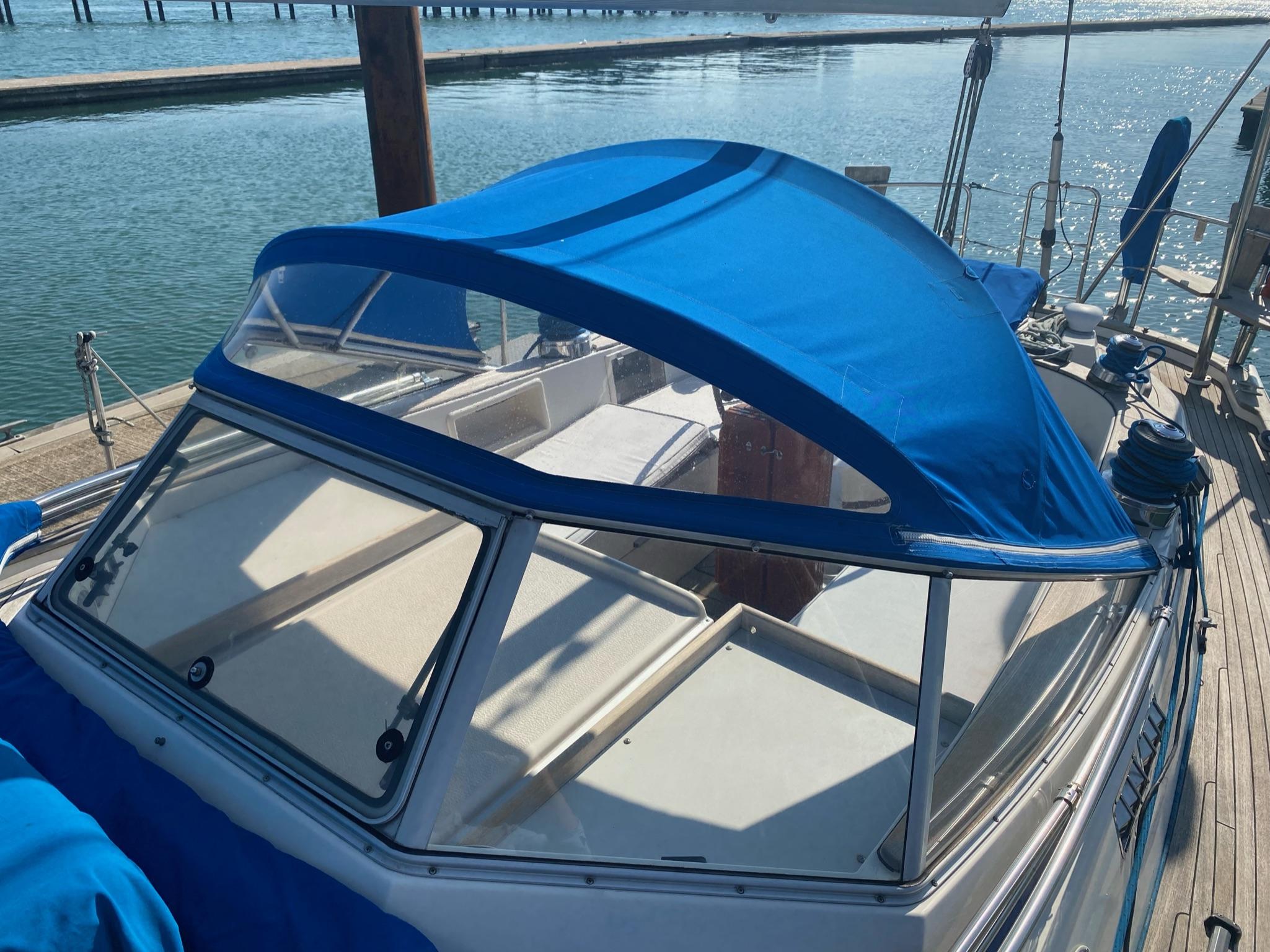

Fixed windscreen with opening centre section

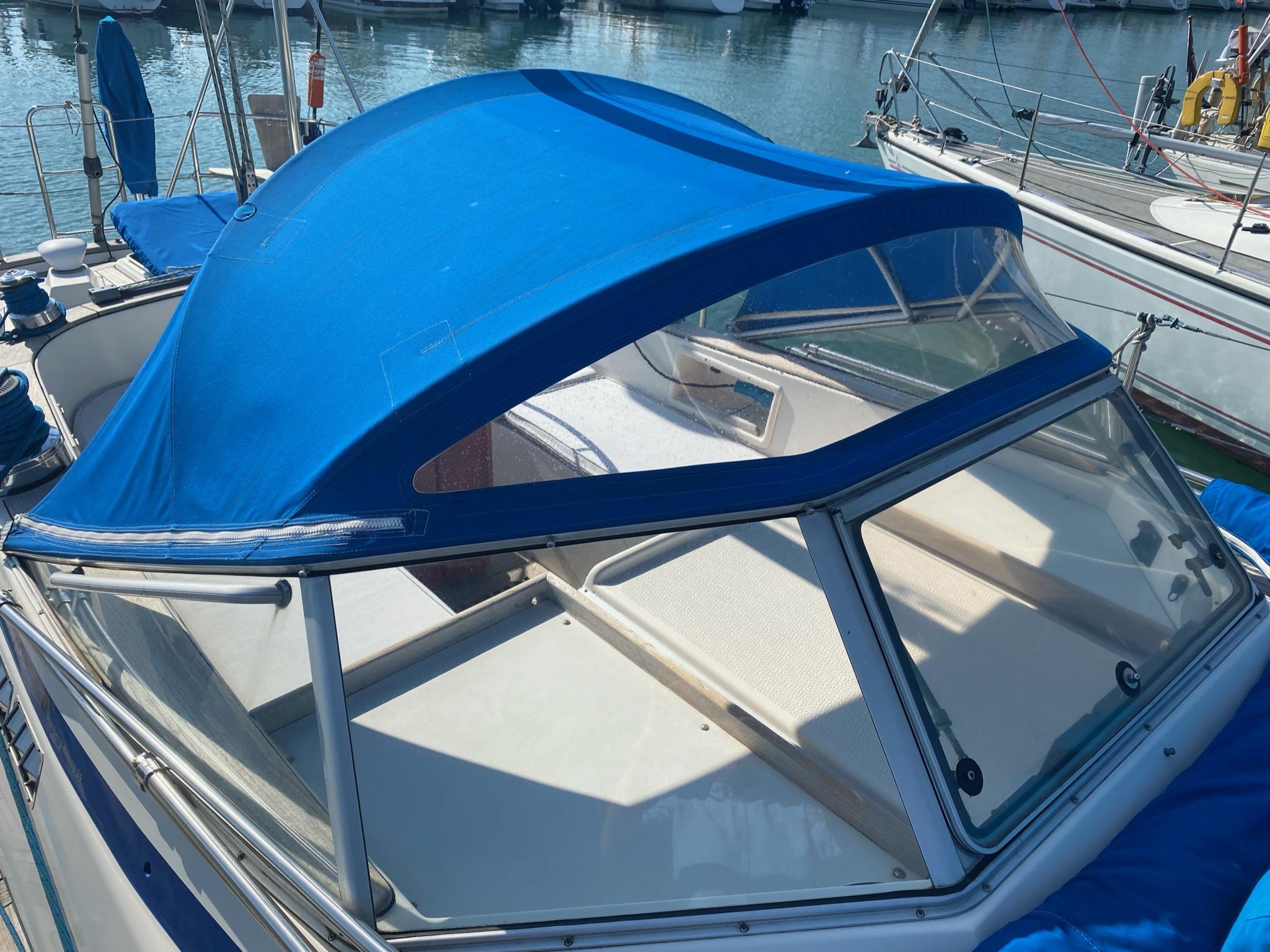

Sprayhood
Various warps & fenders
Boat hooks

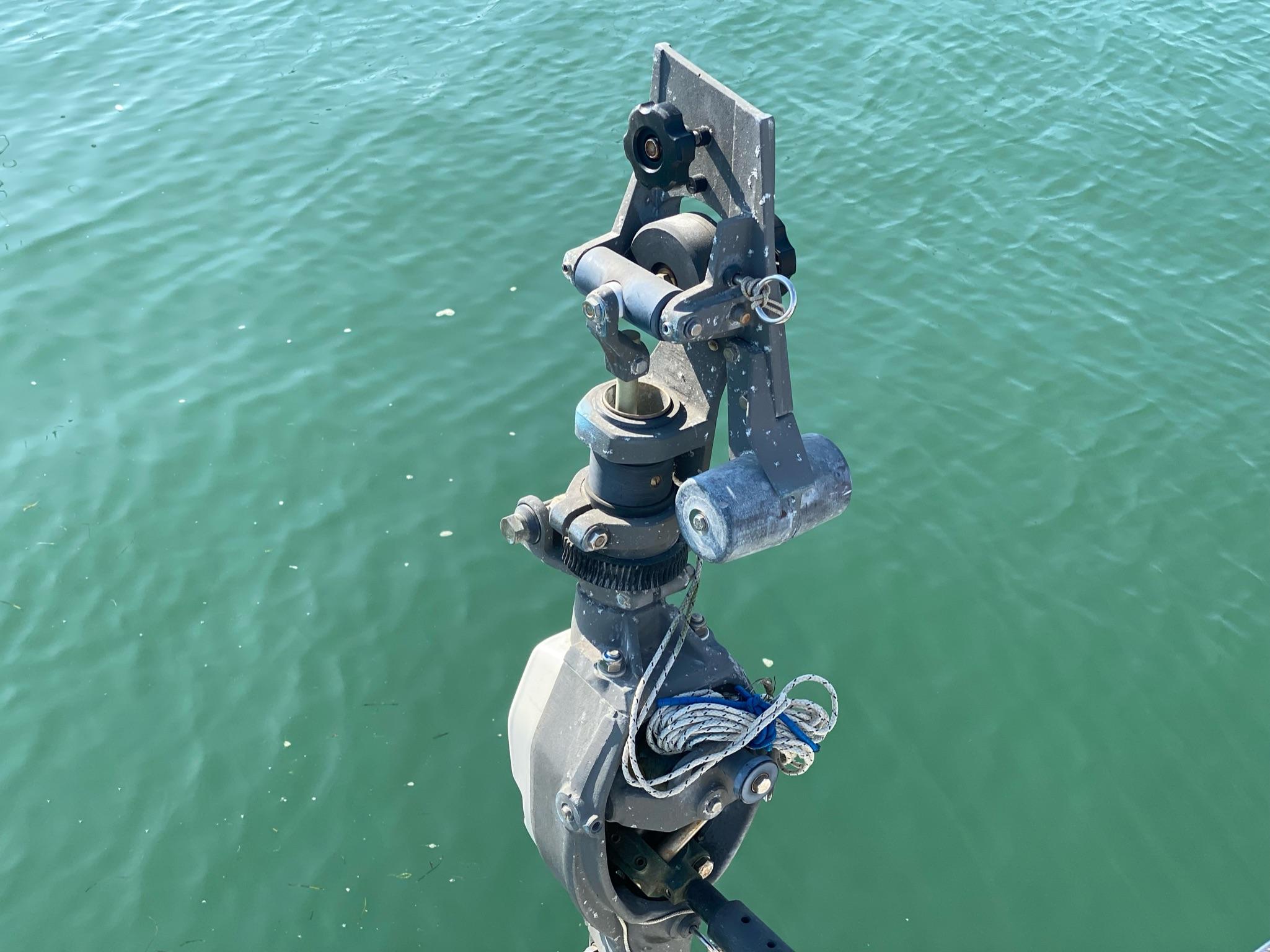

Hydrovane wind steering with replacement ‘sail’ cloth on board.
All over Sunbrella winter cover.
Safety Equipment
Please Note: All safety equipment included in this sale is offered by the vendor without guarantees. It is the new owner's responsibility to ensure that the equipment is specified and serviced in accordance with their intended use of the vessel.
Viking 8 Man RescYou Life Raft (Out of service)
Horseshoe life buoy
Grab bag
